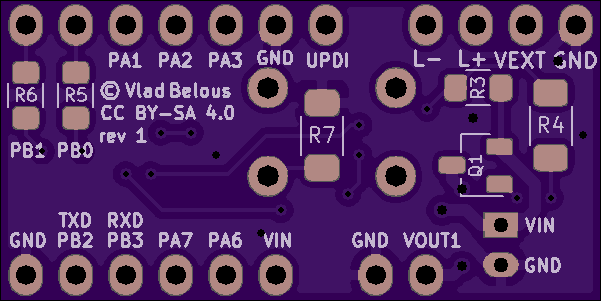

Mini PCB for APA106 LEDs with through-hole wire soldering and extra capacitor. Version 2 has increased hole diameters and pads.

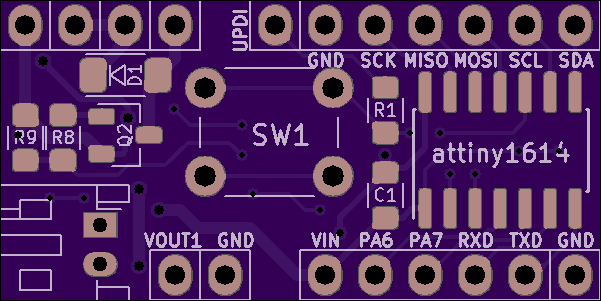

Attiny1614-based board. A nice modern replacement for Attiny84.

Pin PA4 (active low) connected to high-side P-MOSFET for powering/driving an external component, using same VIN supply and common GND.

Pin PA5 (active high) connected to low-side N-MOSFET for driving a load using a separate supply (VEXT pin)! Grounds levels will be separate.

Optional pull-up resistors for I2C.

Programming pin (UPDI) connected through a 3.3k resistor to PA0/RESET/UPDI. Push button (6mm) pulls RESET low.

Board design files will be on https://github.com/vladbelous

4-bit adder built on the TinyFPGA BX.

Used to attach an ADS for measuring induced voltage in copper coils due to moving magnets

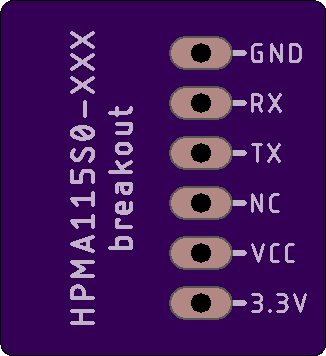

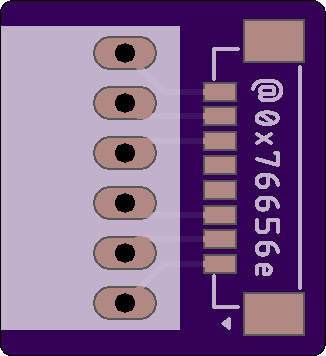

HPMA115S0-XXX Breakout

water depth sensor

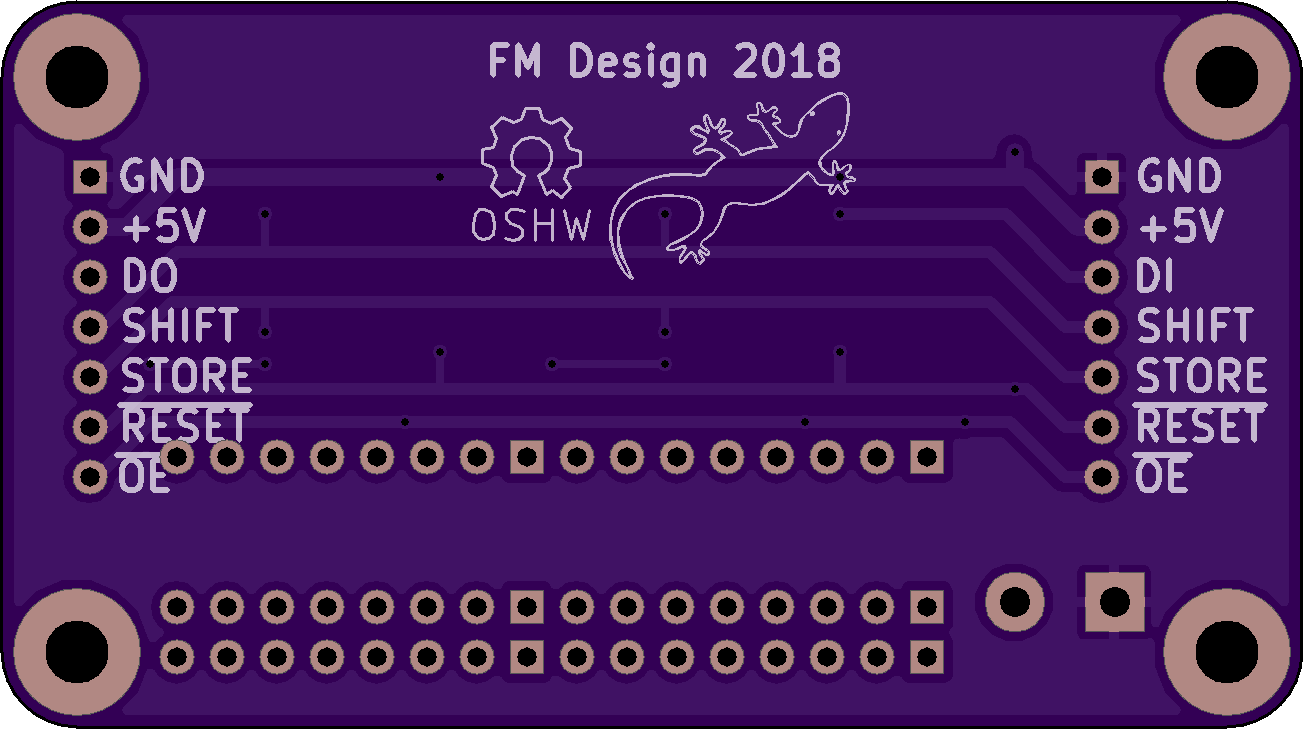

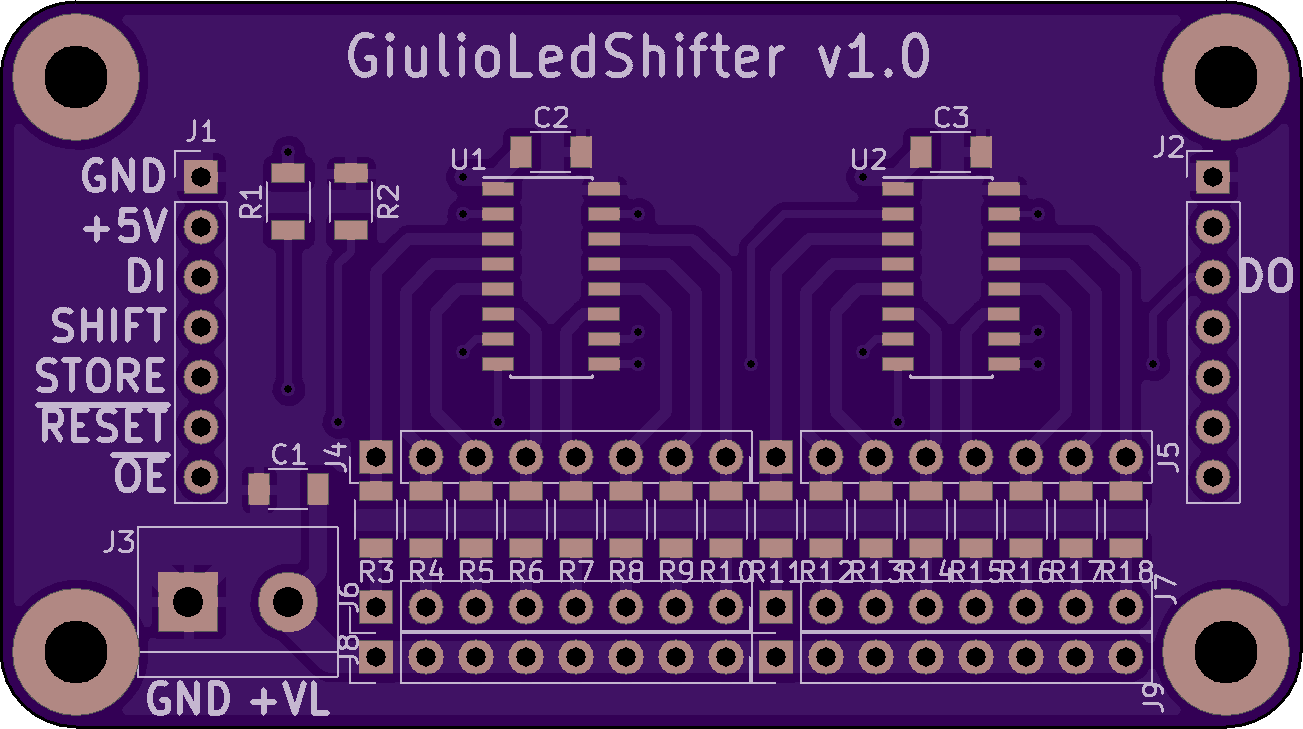

This module offers 16 open drain outputs. It is based on the NPIC6C595 shift register. Many modules can be chained together to increase the number of outputs.

How to use

Use the J1 connector to provide input to the module. J2 connector is meant as an output connector to be connected to an extra chained module- the DO output (J2) is connected to the DI input (J1) of the chained module.

Inputs DI, SHIFT and STORE allow shifting data into the registers. DI - the data input - must be set before creating a pulse on SHIFT input to shift the data value by one bit. Once all bits have been shifted, create a pulse on STORE input to really get all the bits available at ouput.

Input /RESET and /OE may not be connected to a micro-controller, in such a case, resistors R1 and R2 can be used to pull /RESET and /OE signals to +5V and GND respectively (no reset, output enabled).

Outputs can be used to drive LEDs or relays, up to 100mA per output - see NPIC6C595 datasheet.

Connector J3 provides power input. GND is common with GND on J1 and J2. +VL is dispatched to J8-J9.

Resistors R3-R18 can be used to limit output current in case of LED connected between J6-J7 and J8-J9. If no need to use resistors, connectors J4-J5 can be used directly instead of J6-J7.
It is up to you to decide wether you have to use J8-J9 to dispatch +VL to LEDs.

Output power supply

Up to 1.6 amps can be necessary par card on the GND and +VL pins of the input power connector. So use adequate power supply and cables.

+VL can be up to 33V as per datasheet.

Bill of materials

Breakout for Three TRRS Jacks (R1)

The schematic for this board was principally derived from post #25 by overclockers.com forum member “bing”, see http://www.overclockers.com/forums/showthread.php/641111-Building-PWM-Controller-for-4-wires-PWM-fan?s=ec44cf65984bfd7d7fd8d02407c8e1cc

This board aims to package the circuit into a small footprint using larger, easy to solder SMT packages. In summary, this circuit generates a discrete ~25 kHz square wave, and the duty cycle can be adjusted from 0 to 100% using a potentiometer of your choosing. The board contains a 5 volt regulator for the PWM logic, which is capable of running up to 30 volts. If you wish to use a higher voltage fan (48 volts), you may change the regulator to one with a higher input operating voltage. The logic is 12 volt compatible, but C5 would have to be changed to accomodate the higher voltage. It is currently specified to be a 10 volt capacitor as the logic runs on 5 volts in the configuration seen here.

The bill of materials, Gerber and KiCad files, and images of the first test board being evaluated are available here:

https://drive.google.com/open?id=1aKoPmhgVg5st1XiLXO8zLtI2ykRgVHOm

Disclaimer: No guarantees expressed or implied. The information presented here is for educational use. You are responsible for safely and correctly assembling this open source project. I am not liable for any damages or injures to equipment or persons as a result of improper handling procedures, incorrect assembly, or misuse. Please ensure you exercise proper safety precautions as defined by NFPA 70 and NFPA 70E when assembling and using electronics.

By Kevin Aghaei

TE 5787444 to JST-GH Battery Adapter

AM29F016/32 flash memory adapter board to DIY a Game Boy flash cartridge.

J.Rodrigo Website Documentation - How To || GitHub Repo

If you like one of these tiny purples you can order some boards on OSH Park, or order boards with/out pre-solded ROM on my Tindie Store to support me.

slot take 2, with help from Dan Sheadel

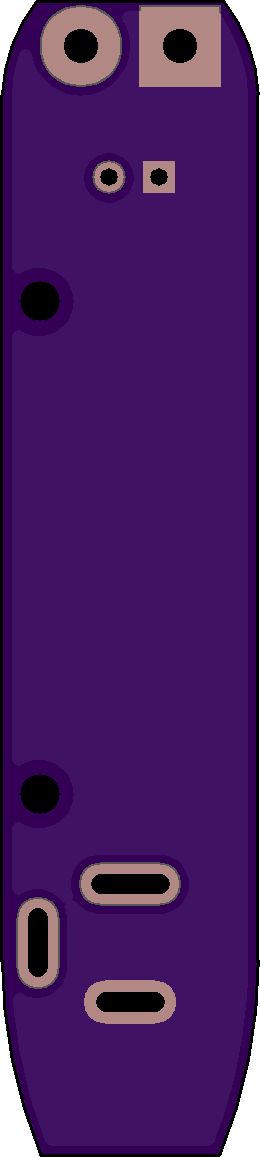

The vias are placed so you can file this 30mm board down to 29mm and not be cutting into the vias at all. 8mm exposed spring pad, mask can be scraped to expand it to a 10mm pad if needed. -Dan
