Project: https://github.com/rfrht/FT991A-PAT

This project is a remix of OE2DOR’s perfect and neatly crafted FT-991A Panadapter board.

The final objective is to actually embed a RTL-SDR inside a FT-991 (or FT-991A), without drilling holes, external cables, connectors or whatsoever: The FT-991A sports a USB hub (which feeds the sound card and the CAT interface). By replacing the existing 2-port USB hub chip with a 4-port variant (same SMD footprint and compatible pinout), the SDR will be installed in the radio, and it will be exposed to the computer via the existing USB port, conveniently routed through the radio’s USB hub. So, plug the radio’s USB port and the computer will see three devices: the virtual sound card, the CAT port and the SDR.

This fork adds on-board latch control, by using a AND gate with two inputs that controls a RF switch: The IF signal is only connected to the SDR if both signals (on my project, a SDR GPIO signal and the RX9 signal from radio’s Main Unit) are present. Otherwise, the SDR is left isolated to the ground and no signal is tapped.

I2C_RGB_Encoder breadboard friendly corrected hole size for pins

Yet another attempt…no leads under QFN

https://hackaday.io/project/110436

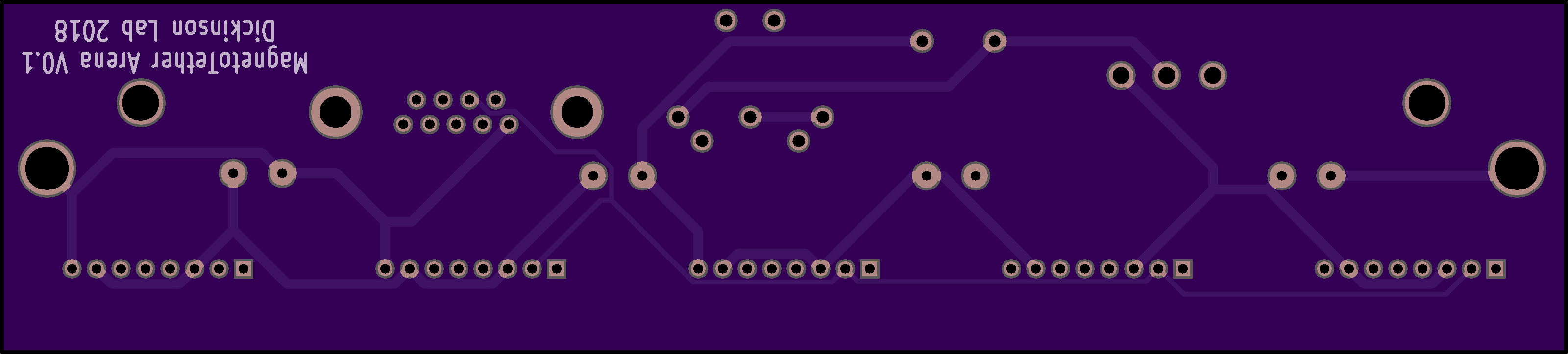

Planar arena PCB for magneto-tether rig

CP2112 Adapter is a device for laptop battery BMS unlocking.

BOM:

Channel Switching for Guitar Tube amp. Through hole version. https://github.com/FastEdTex/ChannelSwitchingAmpMod

TS2068-CARTRIDGE-READER-2012-Version-2 is intended to allow a Timex Sinclair TS2068 (TS-2068) TCC (Timex Command Cartridge) to be plugged into an EPROM Socket allowing the contents to be read (such as by an EPROM Programmer). This first version was developed June 15, 2012 at 4:54 A.M. C.S.T. - This version adds some “blinkenlights” (L.E.D.s) - there is a GitHub Page Here: https://github.com/TheLittleEngineers/TS2068-CARTRIDGE-READER-2012-Version-2

This design should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

PLEASE NOTE: THIS VERSION HAS NOT YET BEEN TESTED.

TS2068-CARTRIDGE-2012 is intended to be a Timex Sinclair 2068 (TS-2068 or TS2068) TCC (Timex Command Cartridge). It accepts a 27C512 EPROM.

This first version was developed June 15, 2012 at 1:39 A.M. C.S.T.

There is a GitHub Page Here: https://github.com/TheLittleEngineers/TS2068-CARTRIDGE-2012

This design should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

PLEASE NOTE: THIS VERSION HAS NOT YET BEEN TESTED.

TS2068-CARTRIDGE-READER-2012 is intended to allow a Timex Sinclair TS2068 (TS-2068) TCC (Timex Command Cartridge) to be plugged into an EPROM Socket allowing the contents to be read (such as by an EPROM Programmer). This first version was developed June 15, 2012 at 4:33 A.M. C.S.T.

There is a GitHub Page Here: https://github.com/TheLittleEngineers/TS2068-CARTRIDGE-READER-2012

This design should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

PLEASE NOTE: THIS VERSION HAS NOT YET BEEN TESTED.

Zipit Z2 Breakout v2.3

v2.3 Updates:

Removed snap/break holes, removed microusb breakout header, removed host port breakout header, added optional bulk capacitor for host port, added 2 x M2.5 mounting holes.

Parts List

• C1, C2: 4.7uF 6.3V 0603 (C1608X5R0J475K080AB)
• L1: 1uH 0805 (LQM21PN1R0MC0D)
• U1: TI 5V Regulator (TPS61240DRVT)
• J1: Hirose to Zipit Connector (ST60X-36S(30))
• J2: USB Host Port (292303-1)
• J3: Amphenol FCI Micro USB Port (10118194-0001LF)
• R1: 10K ohm 0603 Resistors (Regulator Enable)
• R2, R3: 4.7k-10k ohm 0603 Resistors (I2C)
• R4: 10-100 ohm 0603 Resistor
• Q1: P Channel MOSFET (DMP2035U-7)
• C3: Tantalum 3528 Capacitor
• 1.27mm Headers Optional

CC2-32K-EPROM-CARTRIDGE-Version-1-Revision-A1-01.06.2013 is a 32K EPROM Cartridge for the Tandy Radio Shack TRS-80 Color Computer 1, 2, 3 and Dragon Data Dragon computers. Notes: The CoCo 1, 2 and Dragon can only access the first 16K. The CoCo 3 can access the entire 32K, minus the 0xFFnn I/O and Vector page. Many other similar (but much improved) cartridges are forthcoming. There are much better designs in my possession and I intend to post them all, in no particular order. There is a GitHub Page here: https://github.com/TheLittleEngineers/CoCoDragon-CC2-32KEC-V1RA1 - PLEASE NOTE: THIS VERSION HAS NOT YET BEEN TESTED.

Please note: This is derived from an original design by “Little” John Eric and/or his father “Big” John Robert (J.R.) by “Uncle” Robert Allen. It should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

https://github.com/jaromir-sukuba/a-p-prog

CoCoDragon-MultiPakInterface-CC-Multi-Pak_Version_1.2 - This is a clone of the Tandy Radio Shack TRS-80 Color Computer Multi-Pak Interface #26-3024 (which should also be compatible with the #26-3124). This was designed by my nephew “Little John” and his father “Big John” (J.R. as he is known to me). I have made very minor modifications to it. “Little John” designed this thing to work with ATX Power Supplies, which makes sense I guess - that is the most common power supply in the whole of the known universe. Please note that I have not yet tested this but I am ordering boards and will post an update after initial testing has been completed.

There is an OSHPark Page Here: https://oshpark.com/shared_projects/zolH6Sdh

There is a GitHub Page Here: https://github.com/TheLittleEngineers/CoCoDragon-MultiPakInterface-CC-Multi-Pak_Version_1.2

Please note: This is derived from an original design by “Little” John Eric and/or his father “Big” John Robert (J.R.) by “Uncle” Robert Allen. It should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

The LambdaSpeak 3 PCB for the Amstrad / Schneider CPC. Check out the GitHub page as well as the Hackaday.io project page for more info.
