Relative Temperature Monitor

A 555 timer based circuit kit that blinks an adjustable RGB LED and can drive an external load like a speaker. Frequency and Duty cycle are set by inserting components into the header slots.

Arcade Button Layout

Very simple transistor based oscillator circuit I made from random parts out of my crap bin. Play with the parts values to change frequency. BOTH SIDES MUST MATCH or it will not flash! You can either wire in remote mounted LED’s (such as on alternating wings) or you can use 5mm LED’s directly on the back of the board if you had a use for that, they’ll mount directly in the vias.You can also use threw hole components with some interesting soldering, pretty much any NPN- bipolar transistor will work, you can also use a wide range of values for the R2/R3 and cap sets HOWEVER you need to maintain a similar ratio as found in my example or you can easily get to a flashing rate to fast to perceive. R1 and R4 don’t effect the flash rate.

• R1 & R4 are the set resistors for the brightness of each LED (these two may be mismatched, especially if using different color LED’s)
• R2 & R3 drain the cap’s
• Q1 and Q2 are any NPN BJT’s in an SOT-23 package
• CAP POLARITY IS CRITICAL! CAP’s + goes to LED-
• CAP pads are for 3216 metric (1206) size caps such as Kemet T series. Make sure you’re using minimum 25v rated caps, 10v tantalum caps are VERY common and WILL BLOW, check the datasheet for the letter voltage code if needed!
• Supply with raw 1s to 4s LiPO, can be powered directly from flight pack or even off a 5v pin from your flight controller.

My personal values:

• R1 & R4 = 220ohms
• R2 & R3 = 10K
• total of 44uF each side (using a pair of 22uF’s caps per side)

One final note, remember that on tantalum cap’s are normally marked with the line on + (what the SMD pads are marked for) so if you’re using threw hole cap’s you’ll probably need to ignore that (most threw hole caps have the line on -)

Headlight unit for special version of 3D printed tricopter, uses CARLCO 20mm TIR optic in holder, that gives you lots of choices of beam pattern to suite your flying needs; from spot light “tight” beams of light to a wide diffused even “wall of light” and even an oval beam option optimized for fast forward flight [when orientated vertically].

• JR style servo plug
• Utilizes separate MCPCB for heat wicking from LED
• Simple jumper to select power source (JP1)
• Current selectable also via jumper (JP2), either 350 or 700mAh
• Cree XM-L2 makes 110 or 350Lm (depending on current)

Can be controlled one of three ways

• On anytime 5V is applied (JP1 closed)
• Switched by enable signal (pulled up) from controller, separate 5v source can be constantly supplied (like from BEC), this removes the load from the FC / MCU pin used for remote control (JP1 open)
• PWM’d for brightness control. This requires additional coding and a spare HW PWM pin (JP1 open)

Note tho 700mAh is VERY LOW power for an XM-L2 because there is no physical heatsink it’s highly advised to use a DIRECT THERMAL PATHWAY MCPCB such as a SinkPAD. On top of the DTP for heat a Copper MCPCB will provide a decent bit of mass to more effectively disperse heat into the air. A copper MCPCB should also be reflowed directly to the via matrix for both better heat transfer and a more secure mount for the LED / optic.

Arduino core memory ‘cores’ board from project at http://www.corememoryshield.com/

Core Memory ‘driver’ board from project at http://www.corememoryshield.com/

MCU controler board, and logger, Phase 1 proto

Simple Board featuring an ATmeaga8515 avr device with 128K external, paged sram. Suitable for my RTOS experiments on avr

Mini led Matrix 5x4

Youtube presentation

Based on attiny13 controller

Github source

Dance Floor Lighting Controller as a tribute to vintage units from LiteLab and Diversitronics. Operates 64 lights in an 8x8 matrix, just like the originals. The project “core” is an Arduino Pro Mini.

A MCP23S17 & MOSFET driver board to power LEDs with the system is located here:

https://oshpark.com/shared_projects/ZkcYL0bz

Breakout boards for piranha LEDs are located here:

https://oshpark.com/shared_projects/xaTP3Xtc

A MCP23S17 and SSR driver board for controlling AC light bulbs is located here:

https://oshpark.com/shared_projects/9E7VqS0A

If you really want to build one of these, find me online and I’ll share the code. My username isn’t hard to track down.

Uses the MCP23S17’s 16 I/O lines to address a matrix of 64 LEDs. Connectors are broken out so that there are 8 busses of 8 LEDs each.

Piranha LED carrier boards for use with this board are located here:

https://oshpark.com/shared_projects/xaTP3Xtc

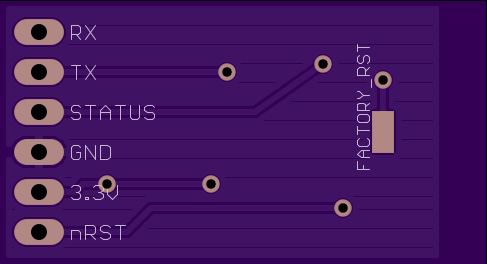

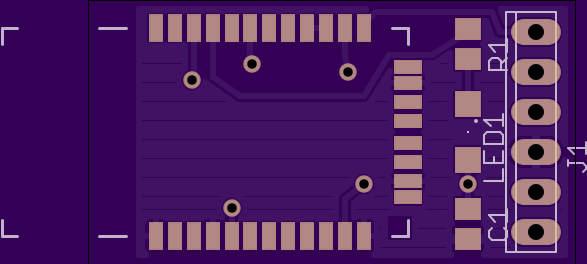

ESP8266 USB power + breakout/DS18B20/DHT11

Adapter for the 96Boards.com low speed (LS) header to 40-pin IDC socket, to permit connection to a ribbon cable (usually to a breadboard). This “Alpha 1” version is pretty tight to the connector, occludes one of the 96boards mounting points, and has wonky routing (blame the autorouter) but works for me (tested on a HiKey, should work on other boards). Note that the IDC header can be placed on the same side or the opposite side of the board from the LS header; placing it on the same side keeps pin 1 as pin 1, where placing it on the opposite side swaps the even and odd pins (1<->2, 3<->4). I’m working on a smaller board with a better connector placement.

LED VU (or other) meter display based on the MAX7221 LED driver IC. Eagle and PDF files are available at:

https://github.com/n0mjs710/Stereo-VU-Meter-v2

Part of a larger project for a complete stereo VU meter with 32 LEDs per channel that also includes:

Code:

https://github.com/n0mjs710/Stereo-VU-AVE-PEAK-Teensy

Audio Board:

https://github.com/n0mjs710/Stereo-Audio-Dectector-v2

https://oshpark.com/shared_projects/bmVo1UHP

Stereo audio precision rectifier and envelope follower for VU meters or other low-frequency AC signals. Can be used to directly drive meter displays or with an ADC and a microcontroller. Eagle and PDF files are available at:

https://github.com/n0mjs710/Stereo-Audio-Dectector-v2

Part of a larger project for a complete stereo VU meter with 32 LEDs per channel that also includes:

Code:

https://github.com/n0mjs710/Stereo-VU-AVE-PEAK-Teensy

Display Board:

https://github.com/n0mjs710/Stereo-VU-Meter-v2

https://oshpark.com/shared_projects/fC6WZwjg

DeviationTx.com Universal transceiver board

Modular CPU Board for Formula Student race car for Unicorn Race Engineering Aalborg University (STM32F407)

Atmega2560 with 3 serial ports and an microSD. This is the first version, it should work. Designed to work with a lipo and 3.3v arduino bootloader. For any questions you can find me at [email protected]. Order on your own risk!

https://github.com/T3P3/Panelolu2
