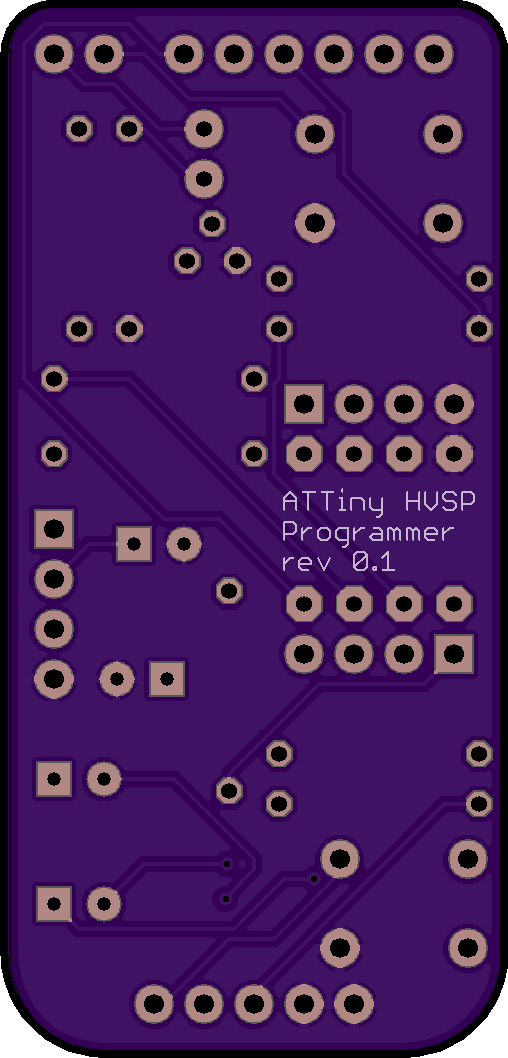

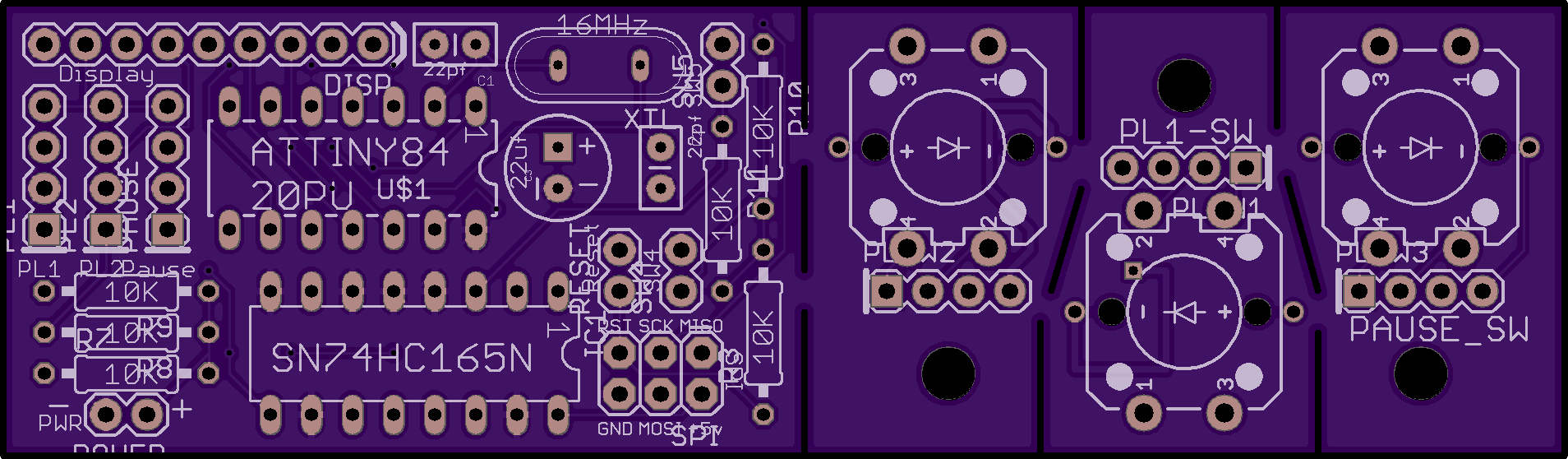

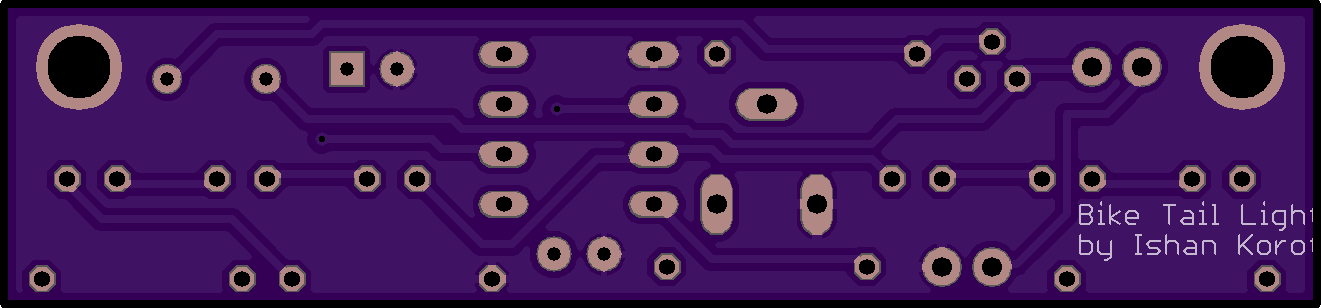

Shared Projects

Cackalacky 2

Small power regulator pcb, with AC inputs and DC output. Output voltage: 0-15V Output current: max. 200mA Input voltage: max. 20VAC

4x AD7190 ultra low noise ADC + Arduino Nano

fixed PWM pin + fixed version number on PCB

Please check out R1.1

This is hat-like board for the EasyRaceLapTimer system’s Raspberry Pi powered base station. This was designed to make cable setup easier, as well as provide an alternate means of powering the system, using a cheap regulator and hobby grade lipo/li-ion/SLA (2-3S) batteries. The board is sized for both the Raspberry Pi Model 2/3, for base station use, and Raspberry Pi Zero/A+/B+, for satellite station use (gate penalty enforcement - not tested).

Parts to complete base station:

• Raspberry Pi Model 2 or 3
• USB WiFi Adapter (not needed with Pi 3, but WILL have better range)
• 2.54mm 2x20 Pin Double Row Female Pin Header
• 5V regulator to power Raspberry Pi
  • Mini 360 DC Step Down Regulator (set to 5V BEFORE connecting to Pi)
  • Pololu 5V, 1A Step-Down Voltage Regulator D24V10F5 - also available here and here
  • A UBEC might also work, but be certain it outputs 5-5.1v, and can supply 2amps. Some UBECs output 5.5-6v which will destroy the Pi.
• 3x TSOP 31238 IR Receiver
• 2x MMBT2222A (T1, T2) <== Also used on Transponder SMD R1.4
• 2x 1kOhm 1206 Resistor (R2, R3)
• 100Ohm 1206 Resistor (R1) <== Also used on Transponder SMD R1.4
• 2x 10uF 1206 Capacitor (C1, C2) <== Also used on Transponder SMD R1.4
• 330-470uF Capacitor (C3)
• SMD Tact Switch 3x6x2.5mm <== Also used on Transponder SMD R1.4
• 5v Buzzer
• Wiring to connect IR receivers
  • 26 AWG servo wire for IR receivers
  • Crimpable servo connectors for IR receivers
• Power lead of choice
• Battery of choice (I use a 12v 8Ah sealed lead acid battery which also powers a speaker system, but a 2s lipo, li-ion, etc will work if you are just looking to power the Pi)

Optional:

• Case to house Pi and hat
  • 3D printable case - top and bottom
• 3D printable mounts for IR receivers
• 2.54mm single row male pin header (only 4-6 pins are needed)
  • Momentary Push Button Switch Panel Mount - Arcade Button, maybe
  • 12v External Buzzer
• Real-Time Clock to maintain time across boots (requires hand wiring and has NOT been tested)

Parts to create a bad ass sound system for playing the sound effects:

• .50 cal ammo can
• 20Wx2 stereo amplifier
  • 2.1mm by 5.5mm DC barrel connector - if you don’t want to cannibalize the power cord that comes with the amp.
• 4 inch speakers
• 3 foot 3.5mm male to male stereo cable
• 12V 8Ah sealed lead acid battery
• USB WiFi Adapter with External Antenna
  • 20cm RG316 RP-SMA Extension - for mounting antenna on top of ammo box
• Screws and nuts for mounting speakers and amp
• Velcro for mounting Raspberry Pi and battery
• Misc wiring

For more informaiton visit:

• EasyRaceLapTimer.com
• RCGroups.com thread
• Facebook Group

ERLT IR transponders for aircraft

Please check out R1.4fixes some difficult soldering issues - fixes some soldering issues with R1.3

This is a new updated version of the Alexander Bierbrauer’s IR transponder for multirotor (drone) racing with EasyRaceLapTimer system. This model has a button to allow changing the transponder code at the field. This minimizes transponder conflicts, especially when racing with other groups using the same ERLT system.

This board is intended to be powered by 5V from a spare servo connector on your receiver or flight controller. The hole in the board is for cable strain relief.

Note: ATTiny85 needs to be programmed with applicable code from EasyRaceLapTimer project. This board has not been tested.

Parts to populate each board:

• ATTiny85 SOP8
• MMBT2222A
• 33Ohm 1206 Resistor
• 330Ohm 1206 Resistor
• 1206 SMD LED
• 100Ohm 1206 Resistor
• SMD Tact Switch 3x6x2.5mm
• Infrared 950nm LED LD274-3
• 12mm Heat Shrink
• 26AWG Servo Lead

Optional (but recommended):

• 10uF 1206 Capacitor

Helpful:

• SOP-8 programming clip

For more informaiton visit:

• EasyRaceLapTimer.com
• RCGroups.com thread
• Facebook Group

EasyRaceLapTimer Base Station Raspberry Pi Hat

Old static transponders (must be reprogrammed to change transponder ID): 5V SMD R1.2 version 5V Through hole R1.1 version Battery balance port (7-8.4V) R1.2 version

Modded SMD Tube Screamer

build doc:

http://felix.kalium.org/upload/share/builddocs/Strontium_Screamer_build_doc.pdf

Wide Bandwidth LED Driver

Adapter PCB to use AT86RF233 and TI CC2520 on the RPi (v1 and v2) at the same time.

2nd board for NEDONAND project

It’s dual edge triggered D-flipflop with separate reset inputs. Pins description (from right to left):

1) GND - ground;
2) D1 - first data input;
3) ^C1 - first clock input (front active);
4) /R1 - first reset input;
5) Q1 - first straight output;
6) /Q1 - first inverted output;
7) D2 - second data input;
8) ^C2 - second clock input (front active);
9) /R2 - second reset input;
10) Q2 - second straight output;
11) /Q2 - second inverted output;
12) VCC - power +5V.

1st board for NEDONAND project

This is a 1-bit slice of NEDONAND ALU supporting shift right RRC (000), shift left RLC (001), NAND (010), XOR (011) and ADD (1xx) operations. Pins description:

1) GND - ground;
2) O0 - bit 0 of ALU operation;
3) O1 - bit 1 of ALU operation;
4) O2 - bit 2 of ALU operation (if it's "1" then O0 and O1 are ignored);
5) A - input bit A (always from accumulator);
6) B - input bit B (might be from register or number);
7) C - input bit C (carry);
8) H - higher bit for rotation right;
9) L - lower bit for rotation left;
10) COUT - carry out;
11) DOUT - data out;
12) VCC - power +5V.

Breakout for ChipCap2 Humidity/Temp sensor

Do not order. Replaced with v031.

Forum thread: http://budgetlightforum.com/node/36710

Updated SpaxBooster with the changes for Sound, see SpaXbooster / SHMDBoost Version 4. For the additional capacitor see the hints at the end of this site. On the board it is C14 near Q1.

PCM2906 SPDIF Receiver/Transmitter

Smaller size. Added more resistors to prevent overcurrent.

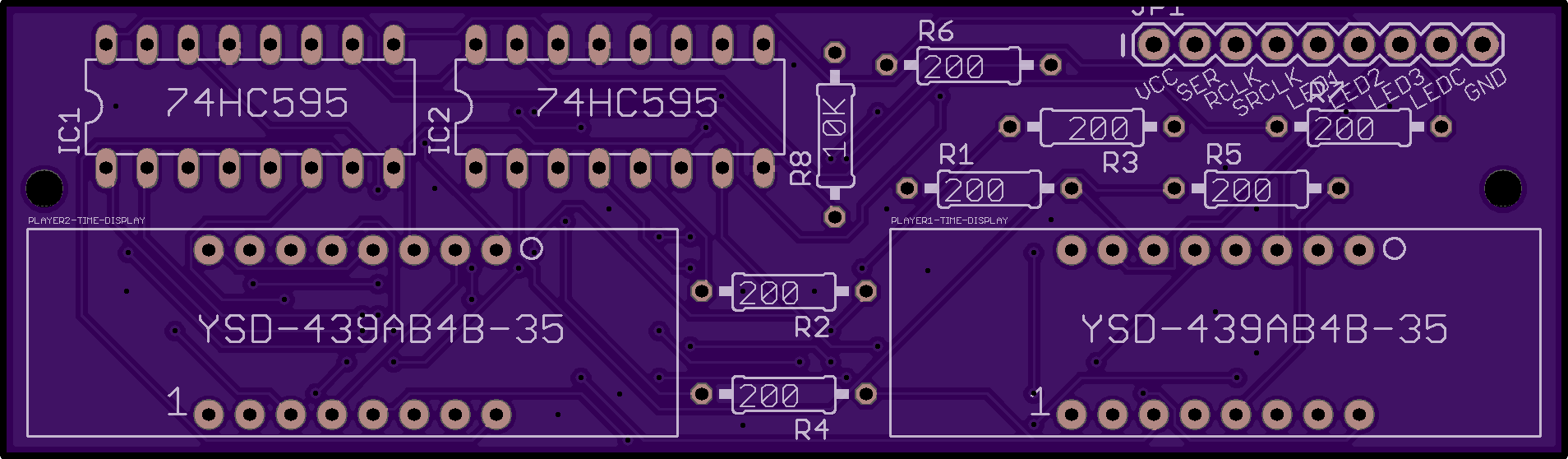

A 7-segment display module with shift register interface. This is my version of project 2 from the KiCad like a Pro course from Tech Explorations. See tardate/LittleArduinoProjects for more info.

28V Indicator, 2 Layer Board

New v2 without vias

Photos and description from Version 1:

License

Creative Commons Attribution-ShareAlike 4.0 International License

ZIF Connector adapter
