Shared Projects

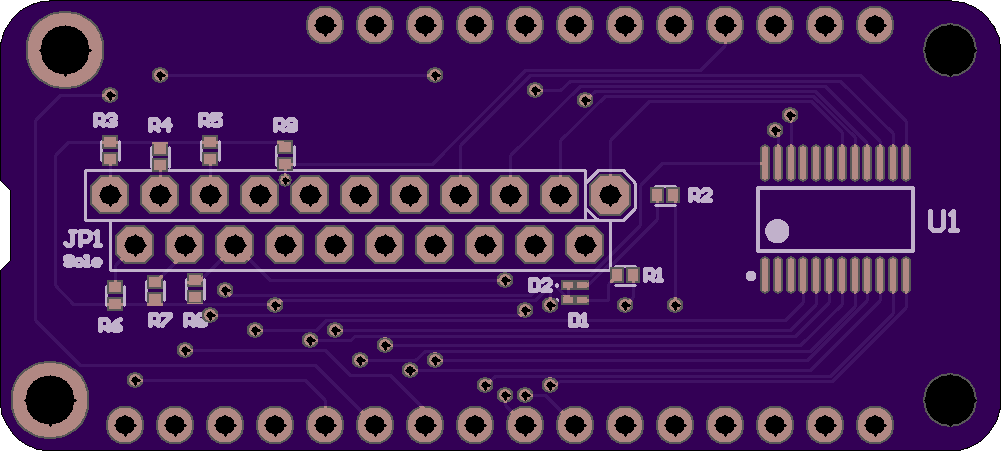

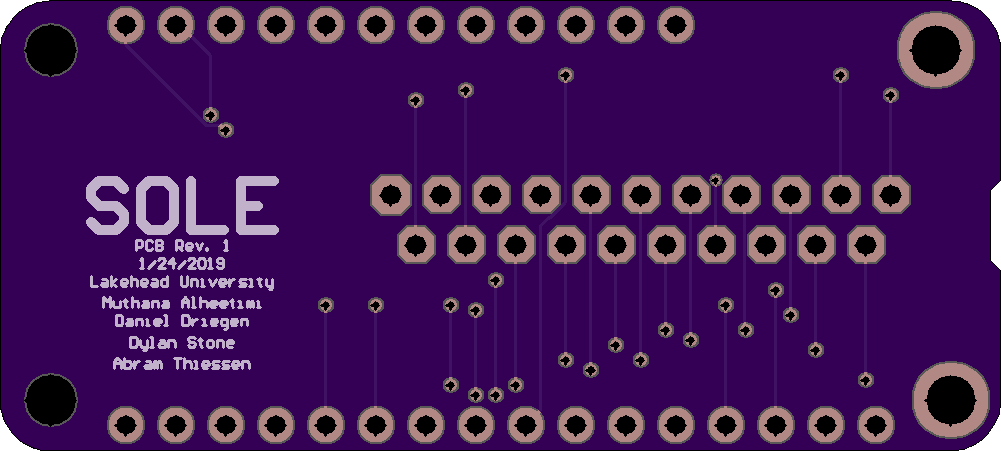

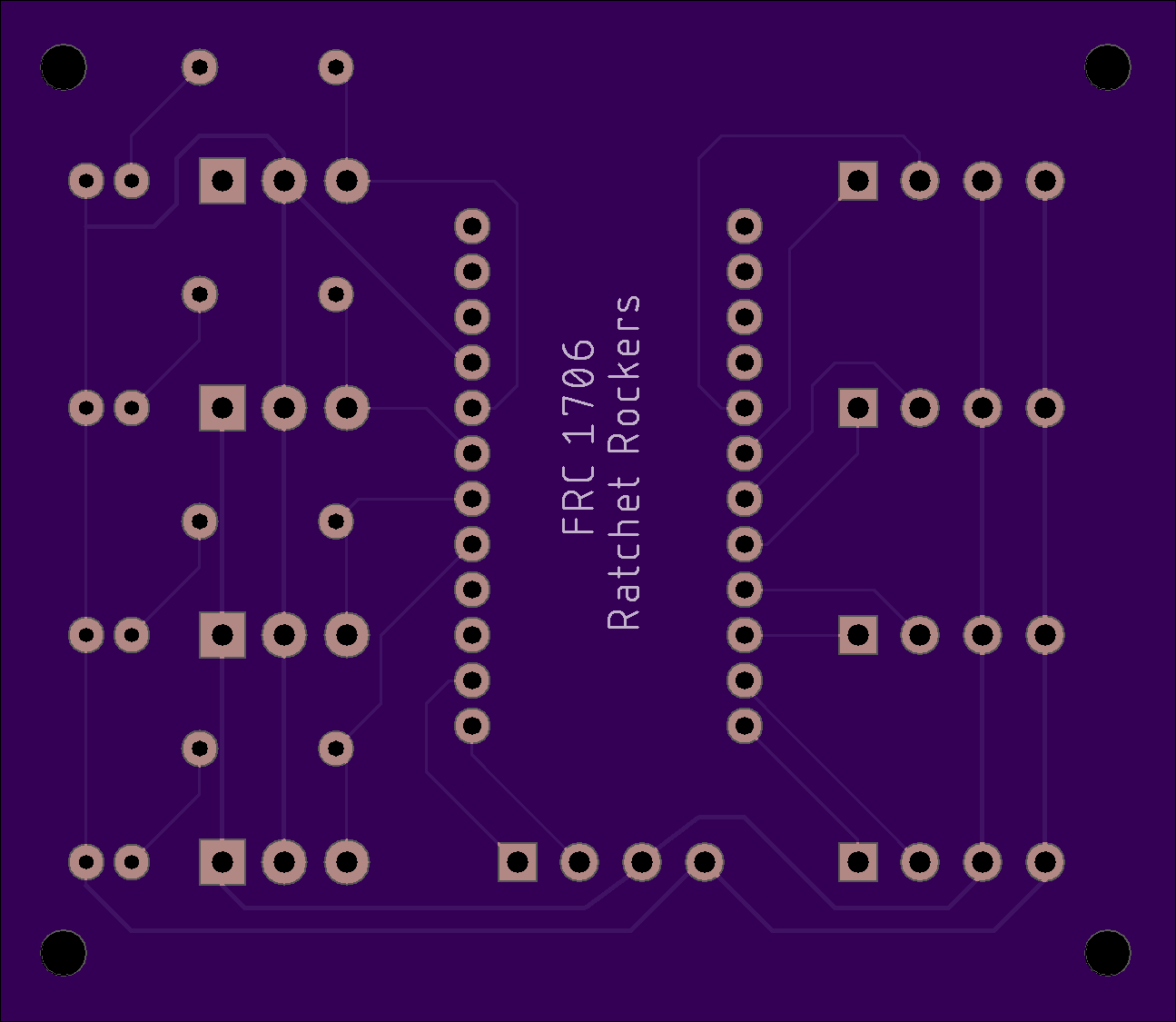

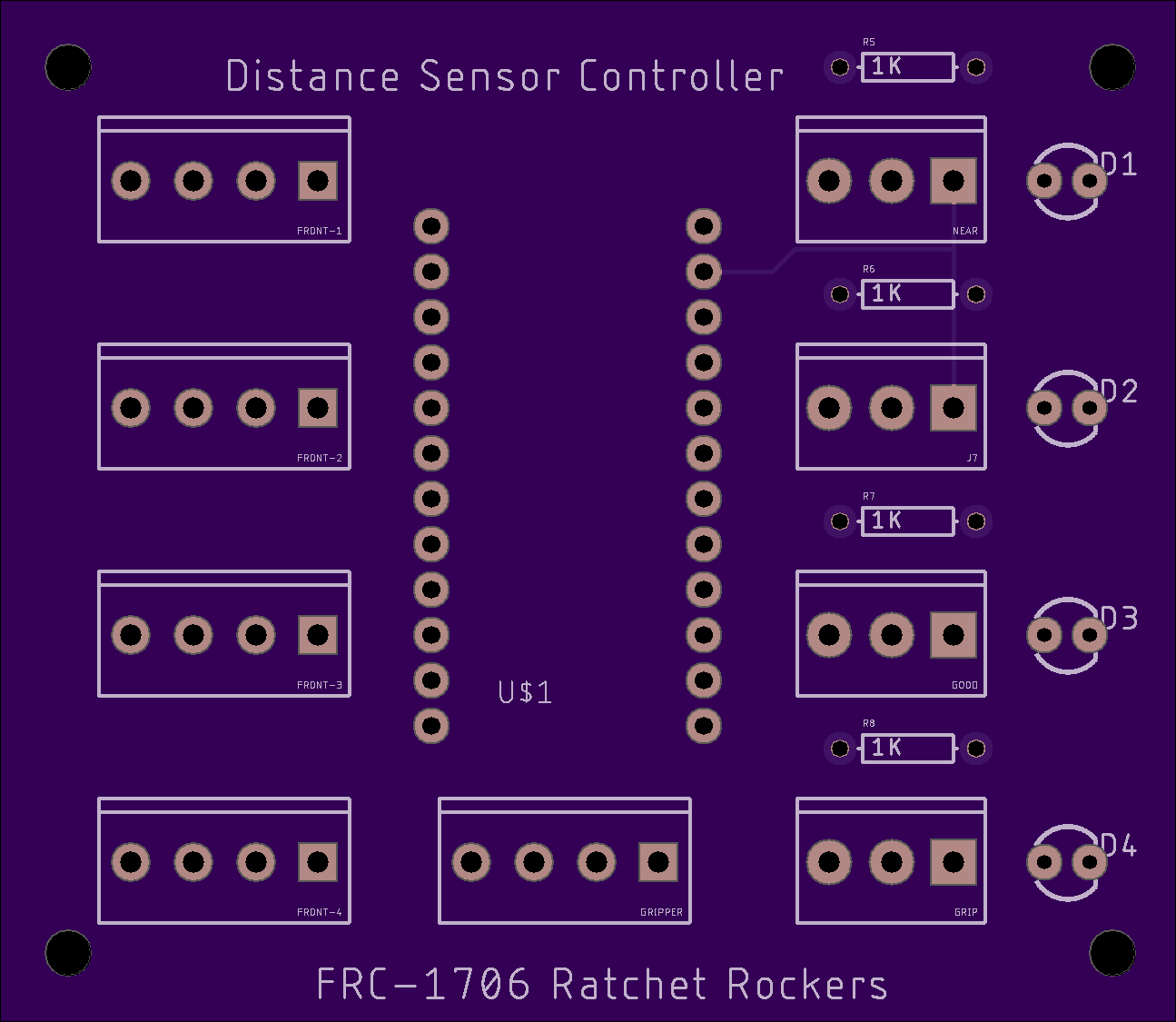

Ratchet Rocker’s 2018 robot LiDAR sensor controller.

See https://github.com/Jerware/xinput2600/ for details and BOM.

Micro breakout for the CC2500 RF Transceiver

Find the BOM here

small board to hold CAT4328 part

TEST board to hold 9 CREE SMT XP-E LEDs

TEST board to hold 9 CREE SMT XP-E LEDs

TEST board to hold 9 CREE SMT XP-E LEDs

Sorry the BOM gets scrambled, there is a simple way to post it in text. You’ll have to “unscramble it. Simple constant current regulator circuit for model train passenger car lighting. This is primarily designed for O-scale use with command control.

Project BOM

RefDes … … Value … … . . Name… … … … . . Manufacturer… … … . Pattern

AC 2-pin header none HDR-1x2

C1 470uf ECA-1VM471 Panasonic CAPPR-5/10.5h14

D1 1A 400V DB107-G Comchip DB-DIP

DC 2-pin header none HDR-1x2

L1 22uh 78F220J-RC Bourns IND_400

R1 27 CF18JT27R0 Stackpole RES-7.62/4x1.5

R2 200 82PR200LF TT Electronics 306U

U1 LM317TG ON Semiconductor TO-220

Team SharpShooter motor power bus.

Digital Compass Battery Board Rev 1

Digital Compass Button Board Rev 1

Incomplete list of supported ICs:

This is a very simple, beginner friendly, ATTiny programmer made to pop onto an Arduino Uno board that’s running the Arduino as ISP sketch. This board was designed with ease of use and minimal cost in mind, hence the half size footprint and inclusion of through hole and SMD options for each component.

To use this board flash your Uno with the Arduino as ISP sketch from the examples in the IDE, then solder in the 12 header pins(6 on either edge), add in the 10UF capacitor - making sure to have it polarized correctly, and solder in your ATTiny IC or an 8/14 pin socket(or both!) And pop in your IC(again, keeping the orientation of the chip in mind), then flash the appropriate bootloader of your choosing from the Arduino IDE! Easy as that! If you like you can also add two 1/4w(or 0805) 220ohm resistors and two 5mm(or 0805) LEDs, and additional headers to prototype right off the board!

Things to keep in mind:
The 10uf capacitor basically stops the ATMega on your Uno from being the IC getting programmed and allows it to program a different board, thus you will not be able to upload the Arduino as ISP sketch to your Uno with the shield plugged in, so upload it first then plug in the shield.
All of the analog pins on both packages are also assigned to a digital pin, so if you’d like to use digitalRead, digitalWrite, and so on simply check the relevant pinout for the IC you’re using to get the appropriate digital pin number! The pinouts for each IC are on the bottom of the board and have asterisks (*) marking the PWM pins and a square marking the external interrupt pins.

What You’ll Need:

• 8 or 14 pin ATTiny with a footprint matching the attiny84 or 85
• Existing Arduino board or ISP programmer -(You will also need dupont cables if not using an Uno)
• 10uf Capacitor in either a 1206 or 5-7mm radial package
• 12 Header pins (technically you only need 6 but it’ll be sloppy)

Optional:
* 1x DIP-8 Socket
* 1x DIP-14 Socket
* 1x Blue 5mm or 0805 LED
* 1x Green 5mm or 0805 LED
* 2x 220ohm resistors in 0207-10(standard 1/4W) or 0805 package

You will also need the appropriate board files for the IC you will be using, which can be found here for the ATTiny13, and here for the ATTinyX4/X5 with installation instructions. Be sure to thank the creators if you find their work useful!

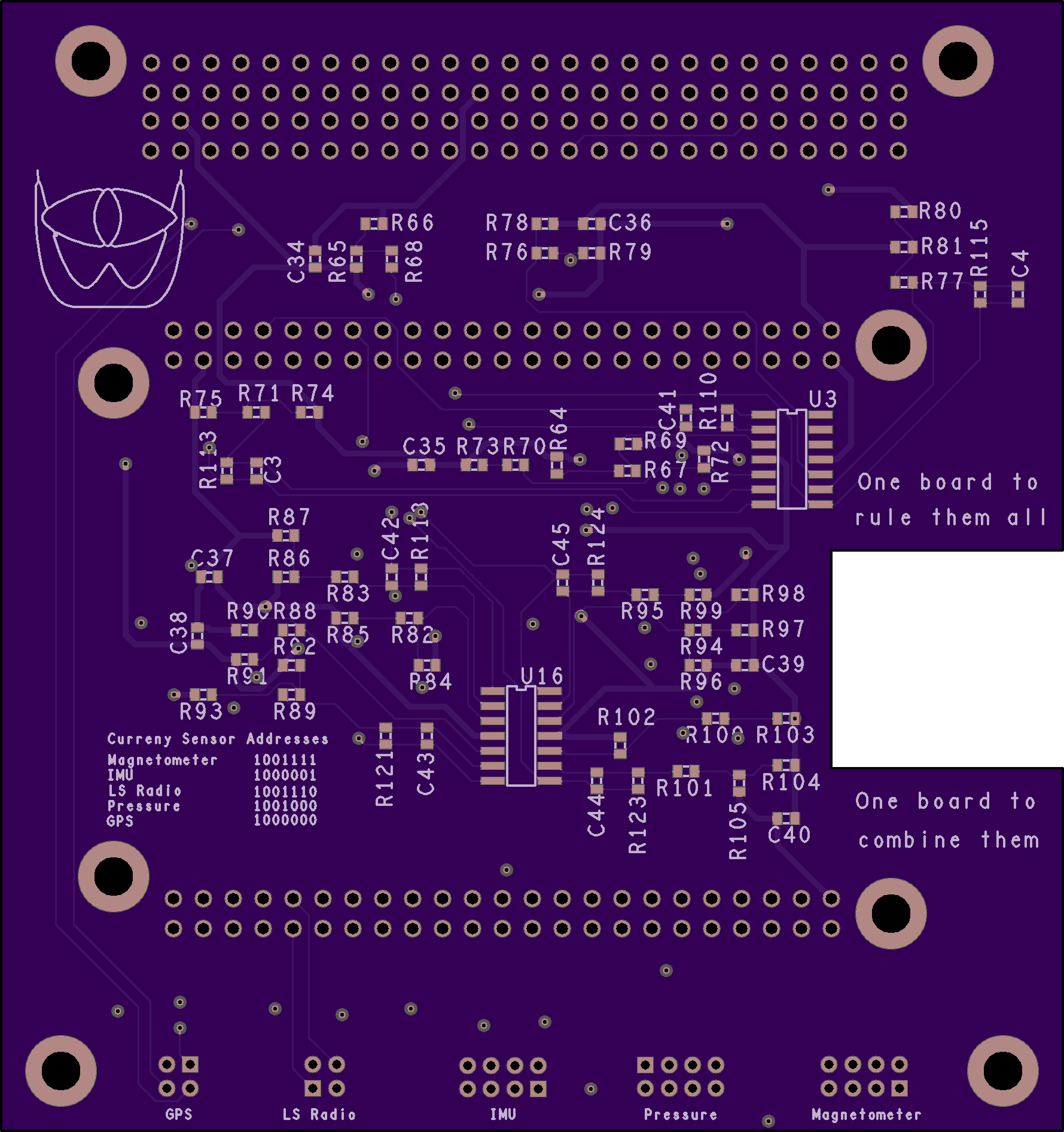

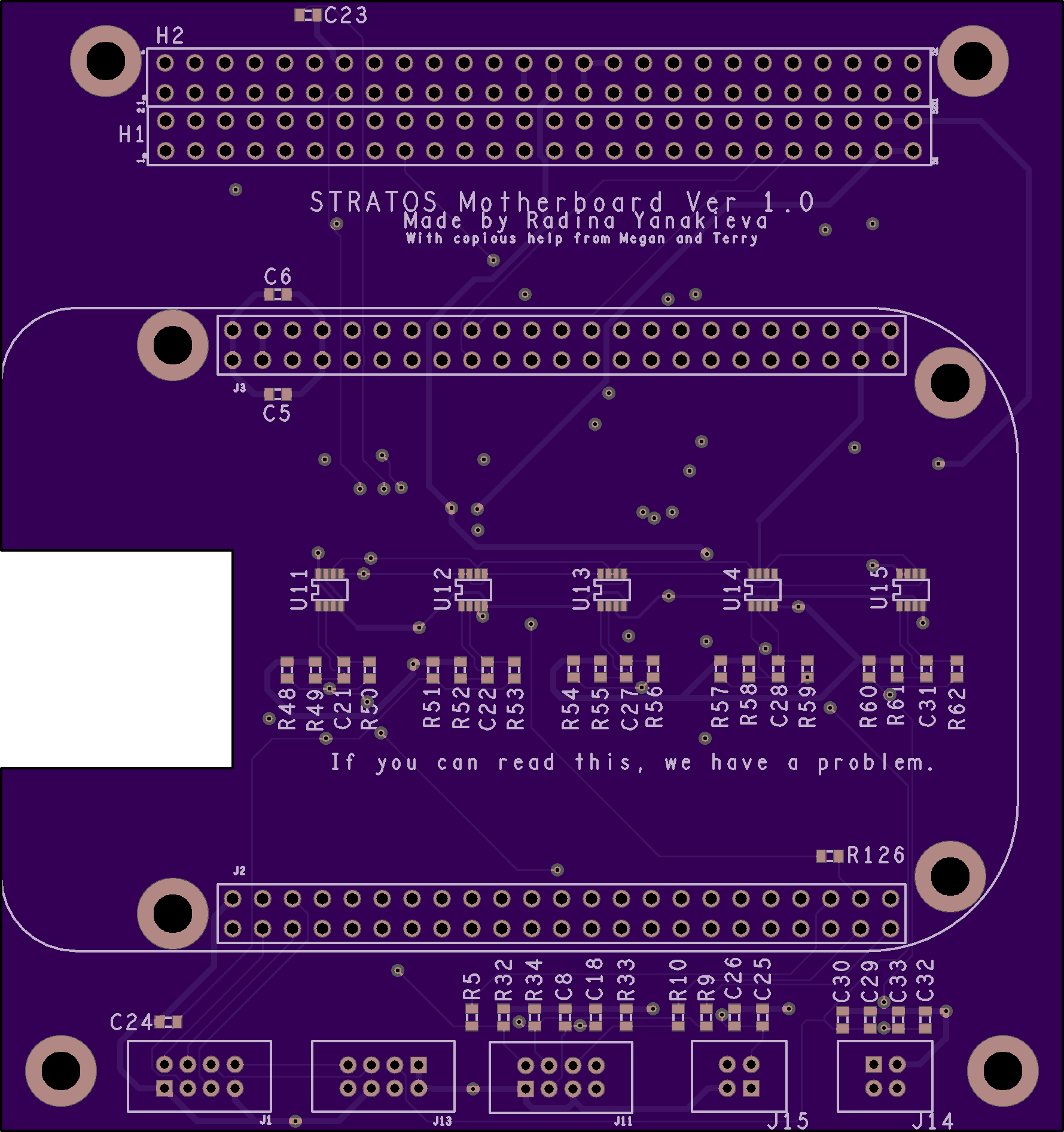

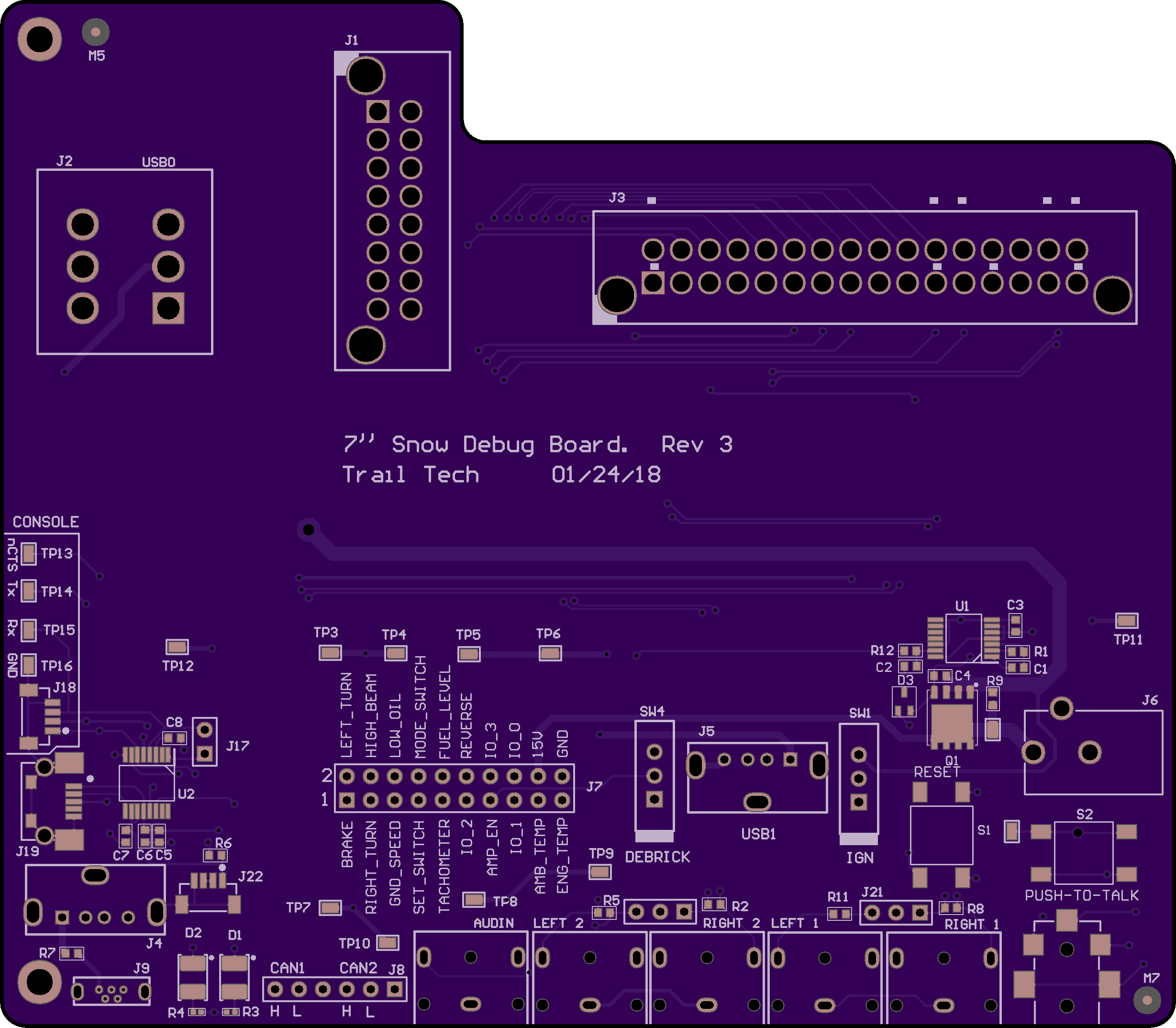

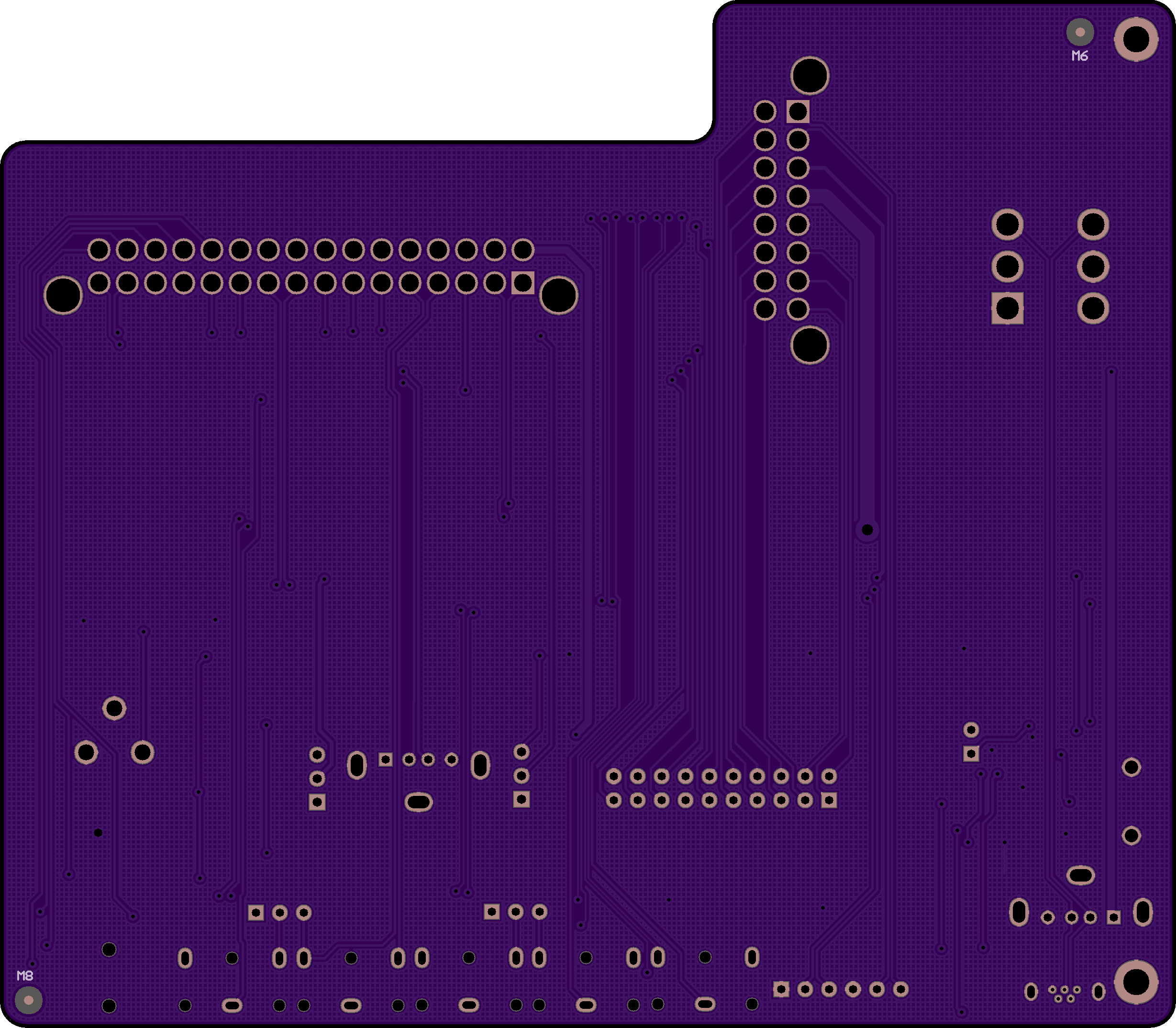

Debug board for 7" Snow

Archimedes VIDC Enhancer

Source code and KiCAD project repository

Sega Mega Drive/Genesis modchip design heavily inspired by MegaDrive++ project. Layout optimized for Model 2 VA1 board with dual frequency oscillator installed.
