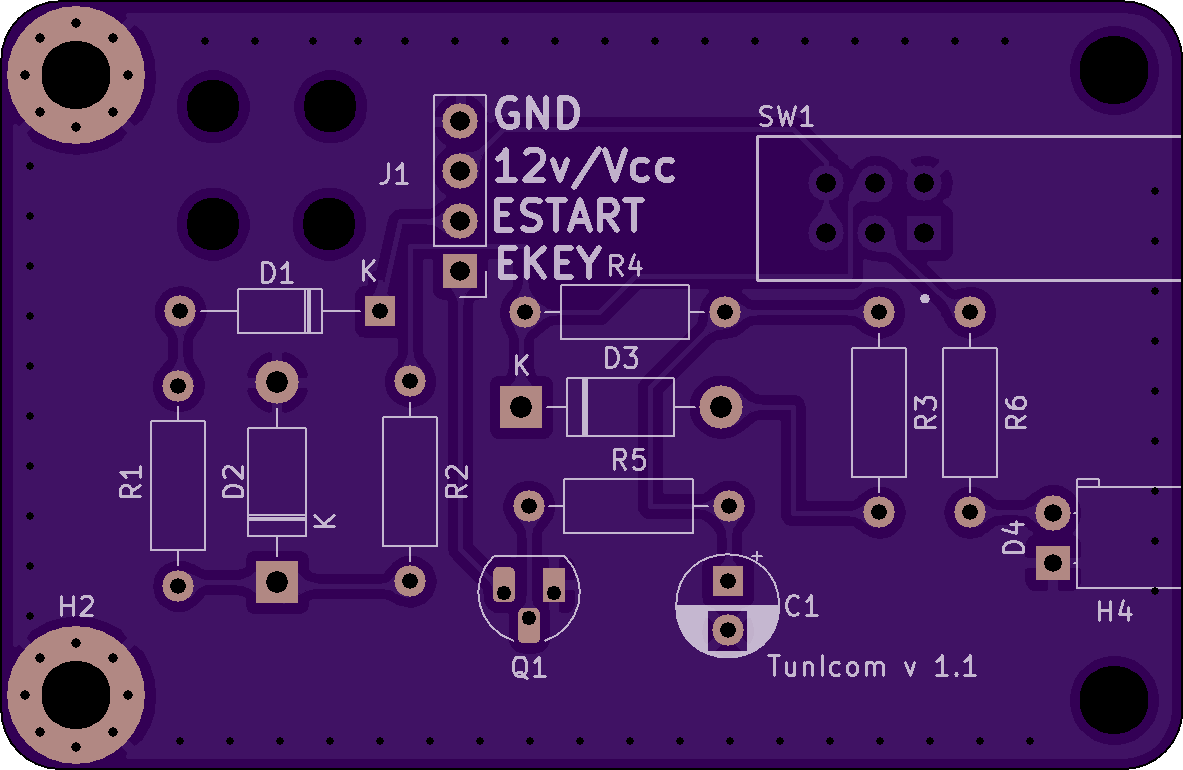

Icom tuning aid, 10 watts output for tuning amp/antenna

A camera shield for the S2 Mini ESP32-S2 board.

This is a simple DIY badge for the Hackaday Remoticon.2.

For more information, see https://hackaday.io/project/182027-remoticon-2-badge

This is the version of the DIY badge for the Hackaday Remoticon.2 that I made with a socket for a MicroMod processor board and an OLED screen

For more information, see https://hackaday.io/project/182027-remoticon-2-badge

Triple low noise +/-15 V power supply

PCB for the SquishBox, a Raspberry Pi-powered FluidSynth MIDI sound module. Plugs onto the Raspberry Pi GPIO header and provides a 16x2 character LCD, PCM5102 audio outputs, inputs for stompbuttons and/or a rotary encoder, and an LED. Can be 5V or 9V-powered.

Header pin connections/description:

Documentation: Geek Funk Labs

Code: GitHub

Store Link: Tindie

LM399 voltage reference board

Project page: https://github.com/jeffqchen/gscartsw2VGA

Memory module for the Radio Shack M100 using through hole components. This is more in keeping with the build of the M100.

Digi-key Module Parts Cart

The parts are available from Digi Key or Mouser. U1 and U2 are surface mount parts. You may also be able to find them cheaper locally.

U1 = AS6C6264-55PCN U2 = CD74HC86E PINS = TE 1544210-2 SIL Connectors

Assembly Tips

To simplify the construction the following assembly order is recommended:

• U2 is inserted from the bottom. It also has to be soldered from the same side as the chip. The excess pins on the top side can either be trimmed off or bent over - make sure they do not touch.
• The CTS 2180 ETAME IC pins are then soldered on to the board. The easiest method is to use an empty IC socket on the M100 to make sure they are the correct length.
• U1 is the last part to be placed on the board.

How to use the IC Pins (CTS 2180)

The suggested pins used for inserting the module into the M100 IC socket are similar to IC pins and should not cause any problems with the socket. The pins are used in a slightly different way to the usual method shown in their datasheet, they are normally used for mounting SIL boards vertically via their edge.

1. Cut a strip of pins to the required length, 14 pins per side in this case. Leave on the top and bottom rails.
2. Snip the pins off close to the bottom rail trying to keep them the same length.
3. With one row of holes aligned with the socket insert the pins from the top through the PCB holes into the socket pins. Make sure the pins are firmly pressed into the socket. This will give the required length of pins for the socket. Repeat for the other side of the module.
4. Solder the pins on the top of the PCB. Once all the pins are soldered the PCB can be removed from the socket.
5. Snap off the top rail (it will breakaway) and snip off the pin heads close to the top of PCB to leave a clean surface on the top of the board. The pin tops can be reheated to provide a better finish if desired.

Memory module for the Radio Shack M100 using surface mount components.

Spec standby current for selected RAM is 0.5uA.

Digi-key Module Parts Cart

The parts are available from Digi Key or Mouser. U1 and U2 are surface mount parts. You may also be able to find them cheaper elsewhere.

U1 = AS6C6264-55SCN U2 = SN74HC86IDRG4Q1 PINS = TE 1544210-2 SIL Connectors

Assembly Tips

To simplify the construction the following assembly order is recommended:

• Solder on U1 and U2.
• The CTS 2180 ETAME IC pins are then soldered on to the board. The easiest method is to use an empty IC socket on the M100 to make sure they are the correct length.

How to use the IC Pins (CTS 2180)

The suggested pins used for inserting the module into the M100 IC socket are similar to IC pins and should not cause any problems with the socket. The pins are used in a slightly different way to the usual method shown in their datasheet, they are normally used for mounting SIL boards vertically via their edge.

1. Cut a strip of pins to the required length, 14 pins per side in this case. Leave on the top and bottom rails.
2. Snip the pins off close to the bottom rail trying to keep them the same length.
3. With one row of holes aligned with the socket insert the pins from the top through the PCB holes into the socket pins. Make sure the pins are firmly pressed into the socket. This will give the required length of pins for the socket. Repeat for the other side of the module.
4. Solder the pins on the top of the PCB. Once all the pins are soldered the PCB can be removed from the socket.
5. Snap off the top rail (it will breakaway) and snip off the pin heads close to the top of PCB to leave a clean surface on the top of the board. The pin tops can be reheated to provide a better finish if desired.

https://www.oshstencils.com if you want to make a stencil for the board.

Current controlled 48 LED panel. 5v input. https://github.com/ch98-1/LED_Lighting_Board.

MVX Audio Separator & Combiner PCB

For details, please check out the GitHub page: https://github.com/jeffqchen/MVX-Audio-Separator-Combiner

Sub PCB for the SNES2VGA Project.

Details: https://github.com/jeffqchen/SNES2VGA

PCB for the SNES2VGA Project.

Details: https://github.com/jeffqchen/SNES2VGA

PCB for the N64D2WiiComp Project.

Details: https://github.com/jeffqchen/N64D2WiiComp

PCB for the N64D2WiiComp Project.

Details: https://github.com/jeffqchen/N64D2WiiComp

VGA2RT5X PCB

Project page: https://github.com/jeffqchen/RetroTINK-5X-SCART-Dock/blob/main/VGA_Dock/README.md

Project page: https://github.com/jeffqchen/8DIN2VGA/blob/main/8DIN2VGA_Plug/README.md

Project page: https://github.com/jeffqchen/8DIN2VGA/blob/main/8DIN2VGA_Plug/README.md
