Patch D4 for SNES and SFC switchless to disable the verification error message : “This game pak is not designed for your…”. Use only with the Super CIC (switchless) mod. Program : http://www.ffviman.fr/switch-snes/d4-213f-patch.zip

Patch D4 for SNES US mini and SFC Jr switchless to disable the verification error message : “This game pak is not designed for your…”. Use only with the Super CIC (switchless) mod. Program and schematic : http://www.ffviman.fr/switch-snes/d4-213f-patch-plcc.zip

Garage Door Opener

A Trusted Platform Module (TPM) breakout board and module compatible with most modern PC motherboards that have a Low Pin Count (LPC) Bus, usually a 20 pin header.

Audio IO board for DSP dev boards
Project files on Github

all in one 240v mains powered wemos d1 + relay 16a, use with sonoff tasmota firmware (UNTESTED - USE AT OWN RISK)

RISC-V microcontroller board based on SiFive FE310.

Design files hosted on Github: https://github.com/mwelling/lofive

64 TQFP Adapt Board

Dual mosfet for closed bolt systems Or Control two pneumatic solenoids

IR in and out for ball detection and or limit switch

one button

one led

OLED pinout

very basic code for semi automatic trigger

https://github.com/paintballmagic/pro-mini-mosfet

Accellerometer version of CylonEye Driver L1.0

Replaced W25Q80BLUX1G 1 MByte SPI NOR flash with MX25R6435F 8 MByte SPI NOR flash. Fixed address pin of CCS811 for more reliable soldering.

Version C1.1

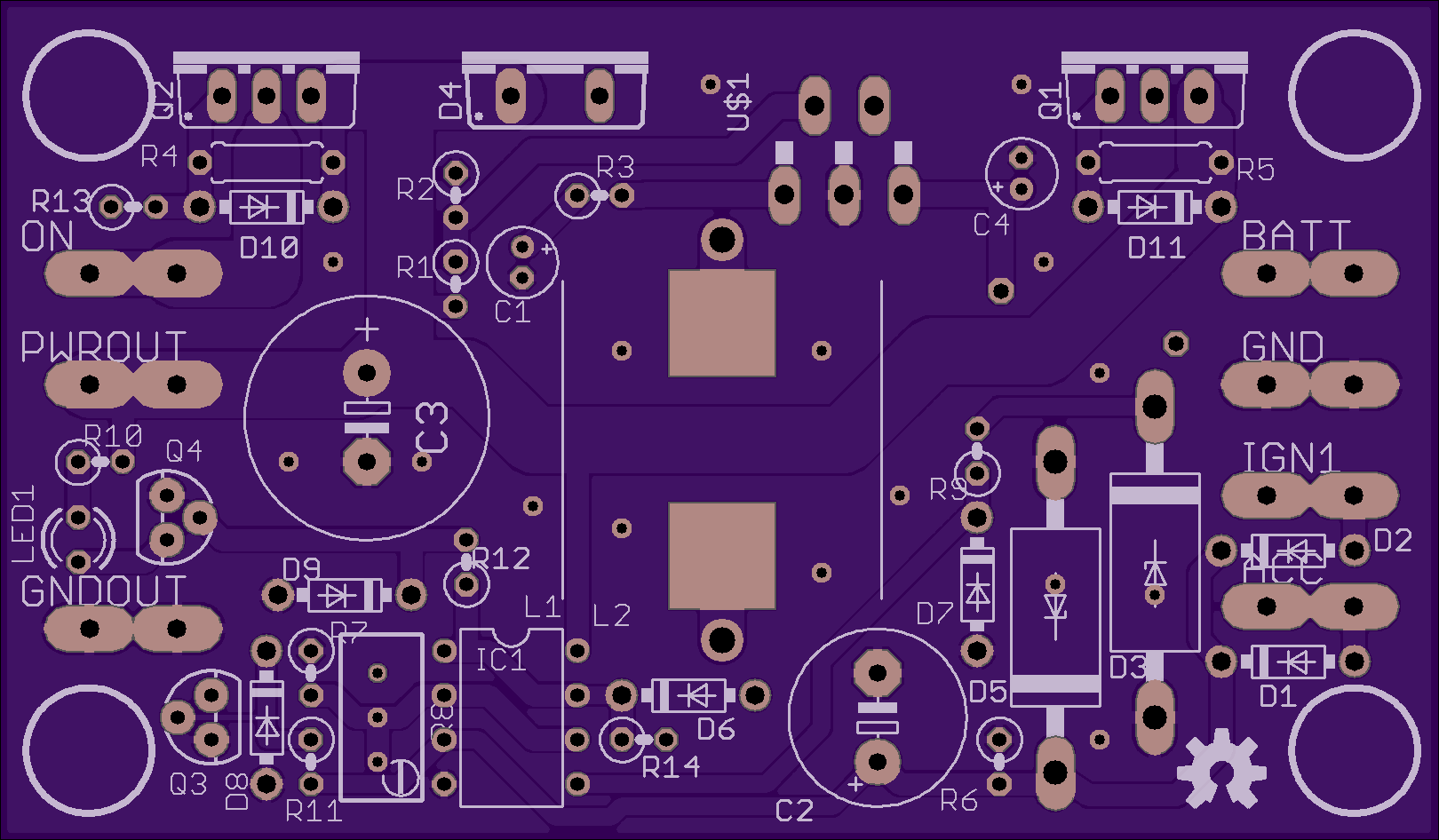

Golf Cart Version 2.1

(This version of the board has not been tested)

An adapter board for hooking up joysticks to a 837-13551-92 [JVS I/O Control Board Type 1], should also work with any I/O board that happens to share the same 60 pin Digital I/O connector with the same pinout (such as the 837-14572 [JVS I/O Control Board Type 3]).

This version of the board, with a flat ribbon cable, allows the cable to run between the boards ‘back to back’ (as the 60 pin connector faces the opposite direction as the 837-13551-92’s relative to the board). A version of this board with the same functionality, but a flipped 60 pin connector can be found at: http://oshpark.com/shared_projects/lR9aERng

This board has plugs for a +5v and +12v monitor, they are not required. There is also a 2nd plug for a +5v out, intended for use with a modified USB cable to power a Pi. On the 2 pin connectors Pin 1 is output and Pin 2 is ground. The resistor on the board connects between +5v and the coin meter pins on the 60 pin connector to spoof the existence of coin meters for games that require it. The push buttons on the board are provided for ease of access to test/service/coin inputs, they do not need to be populated.

The board was designed to fit the following parts:

1. All plugs are 2.5mm pitch, designed for JST XH plugs.
2. The DB-15 connectors were designed for Amphenol’s L717SDA15PA4CH4F
3. The push buttons were designed for TE Connectivity’s ALCOSWITCH Switches (1825910-6)
4. The 60 pin connector was designed for TE Connectivity’s 60 Pin AMP connector (1-5102321-1)

The DB-15 plugs use the wiring that should be found on most Superguns: http://www.thesupergun.com/electrical/standard-supergun-controller-wiring-diagram/

In case the site cannot be reached the wiring is as follows:

1. GND
2. Button 6
3. Coin
4. Button 4
5. Button 2
6. Right
7. Down
8. +5v
9. NC
10. Button 5
11. Start
12. Button 3
13. Button 1
14. Left
15. Up

(This version of the board has been tested with a 837-13551-92 and a Naomi system)

An adapter board for hooking up joysticks to a 837-13551-92 [JVS I/O Control Board Type 1], should also work with any I/O board that happens to share the same 60 pin Digital I/O connector with the same pinout (such as the 837-14572 [JVS I/O Control Board Type 3]).

This version of the board, with a flat ribbon cable, requires the cable runs over-top one of the boards (as the 60 pin connector faces the same direction as the 837-13551-92’s relative to the board). A version of this board with the same functionality, but a flipped 60 pin connector can be found at: http://oshpark.com/shared_projects/RW61aIl2

This board has plugs for a +5v and +12v monitor, they are not required. There is also a 2nd plug for a +5v out, intended for use with a modified USB cable to power a Pi. On the 2 pin connectors Pin 1 is output and Pin 2 is ground. The resistor on the board connects between +5v and the coin meter pins on the 60 pin connector to spoof the existence of coin meters for games that require it. The push buttons on the board are provided for ease of access to test/service/coin inputs, they do not need to be populated.

The board was designed to fit the following parts:

1. All plugs are 2.5mm pitch, designed for JST XH plugs.
2. The DB-15 connectors were designed for Amphenol’s L717SDA15PA4CH4F
3. The push buttons were designed for TE Connectivity’s ALCOSWITCH Switches (1825910-6)
4. The 60 pin connector was designed for TE Connectivity’s 60 Pin AMP connector (1-5102321-1)

The DB-15 plugs use the wiring that should be found on most Superguns: http://www.thesupergun.com/electrical/standard-supergun-controller-wiring-diagram/

In case the site cannot be reached the wiring is as follows:

1. GND
2. Button 6
3. Coin
4. Button 4
5. Button 2
6. Right
7. Down
8. +5v
9. NC
10. Button 5
11. Start
12. Button 3
13. Button 1
14. Left
15. Up
