OpenROV acoustic power amplifier

GPIO Blaster and Receiver for the Raspberry Pi

Stabilizator 24/12+6V

Rio444 ’s adapter : https://www.vogons.org/viewtopic.php?p=647811#p647811

• use 0.8mm board thickness

VT1 ,VT2,VT3 : MBBT3904 transistors * R1,R3,R5,R6 : 4,7K (marked as R) * R2, R4 : 2k (marked as 2k) * C1,C2 : 220pf (marked as C) *

more assembly info: https://www.vogons.org/viewtopic.php?p=648206#p648206

Breakout board for the half pitch EM9304 module, v0.2 Allows to connect it via jumper wires to any development kit.

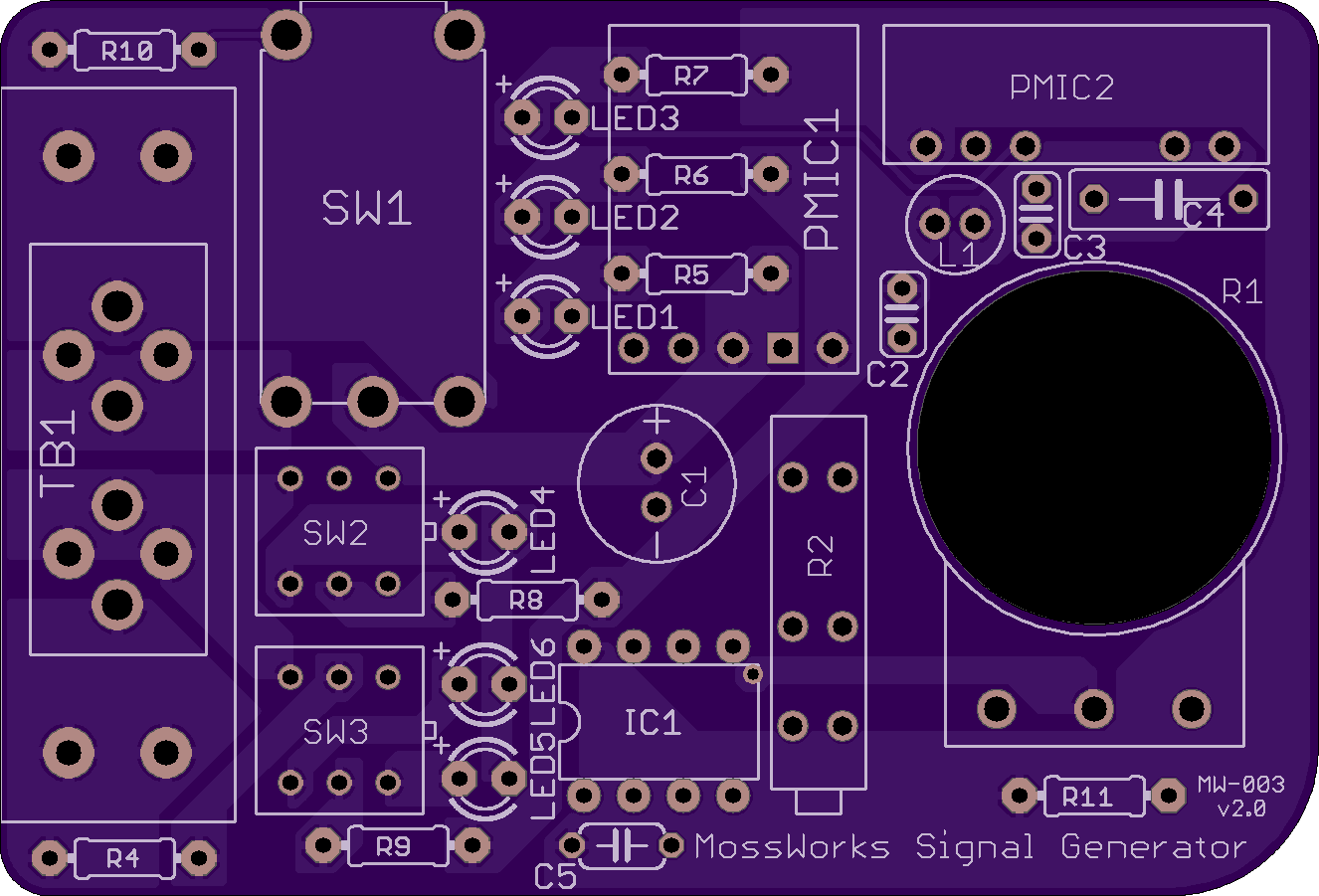

MW-003 v2.0 Signal Generator

Git: MW-003 Signal Generator

BOM

Contact me if there are questions.

This Project was inspired by Paul Carlson’s Video on how to test a relay using a pulse generator and a curve-tracing oscilloscope. The 9V Pulser is a simple circuit which uses a 555 timer to let an LED blink, very similar to what is shown in Chris Gammell’s Getting to Blinky series of videos. An additional load like a relay is attached in parallel to the LED, which then acts as an indicator of the pulses going into the load.

The load and the LED are not directly driven from the 555 timer but from the 9V battery itself. The 555 timer just activates a transistor which switches the power to the load and the LED on and off.

Schematics:

3D Model:

4 - 20GHz x1000 frequency divider based on the ADF5002 (x8), HMC394 (set to x25) and MCP100EP139 (set to x5). All capacitors are 0402. Capacitors on exposed RF traces are 1nF, all others should be 330nF or more (1uF recommended). U4 is a 3.3V Torex XCL202. D1 is any SOD123 5V6 Zener. Output is AC-coupled differential, terminate unused output to 50ohms for single-ended use, output does not have a 50% duty cycle.

https://github.com/stockton-stem/stockton-stem-badge

PIC 555 V2.1

This one has a USB connector if you want to try using the micro USB probe for a conductivity probe - didn’t work for me.

RPUpi

Shield for RS422 over CAT5 with a Pi Zero host. It is a multidrop serial bus. I use it with RPUno or Irrigate7 with the AVR toolchain found on Raspbian, which means I can compile bare metal programs and then upload the firmware with the avrdude tool to a serial bootloader on one of the RPUno or Irrigate7 daisy-chained to the Pi Zero. The exposed network surface of Raspian on the Pi Zero is nil by default so it will need to be configured for some sort of remote access, I use SSH.

RPUpi Forum HackADay

warning - some exposed vias under usb and exposed pads cause shorting. see later version (“Nano”), which is also much smaller; but has off-board battery charging

based on adafruit. modified to be smaller; plus used spare bottom for practice footprints

ROM adapter for M100 my Mike Stein

see

http://bitchin100.com/wiki/index.php?title=M100ROM

This is an adapter board for TRS-80 Model 100. There are three use cases-

a) Early M100 - allow user to install an updated Main ROM using a 27C256

b) Early M100 - allow user to install an updated Main ROM and an Option ROM using a 27C512

c) Late M100 - allow user to install an updated Main ROM and an Option ROM using a 27C512 (because a late M100 is compatible with 27C256)

What you need-

soldering skills and equipment!

2 x 1N4148 or similar diodes, 1 x 10k leaded resistor

28 pins for adapting the board to the socket

either a 27C256 or 27C512, properly programmed

Variant: https://www.mysensors.org/hardware/nrf2rfm69
