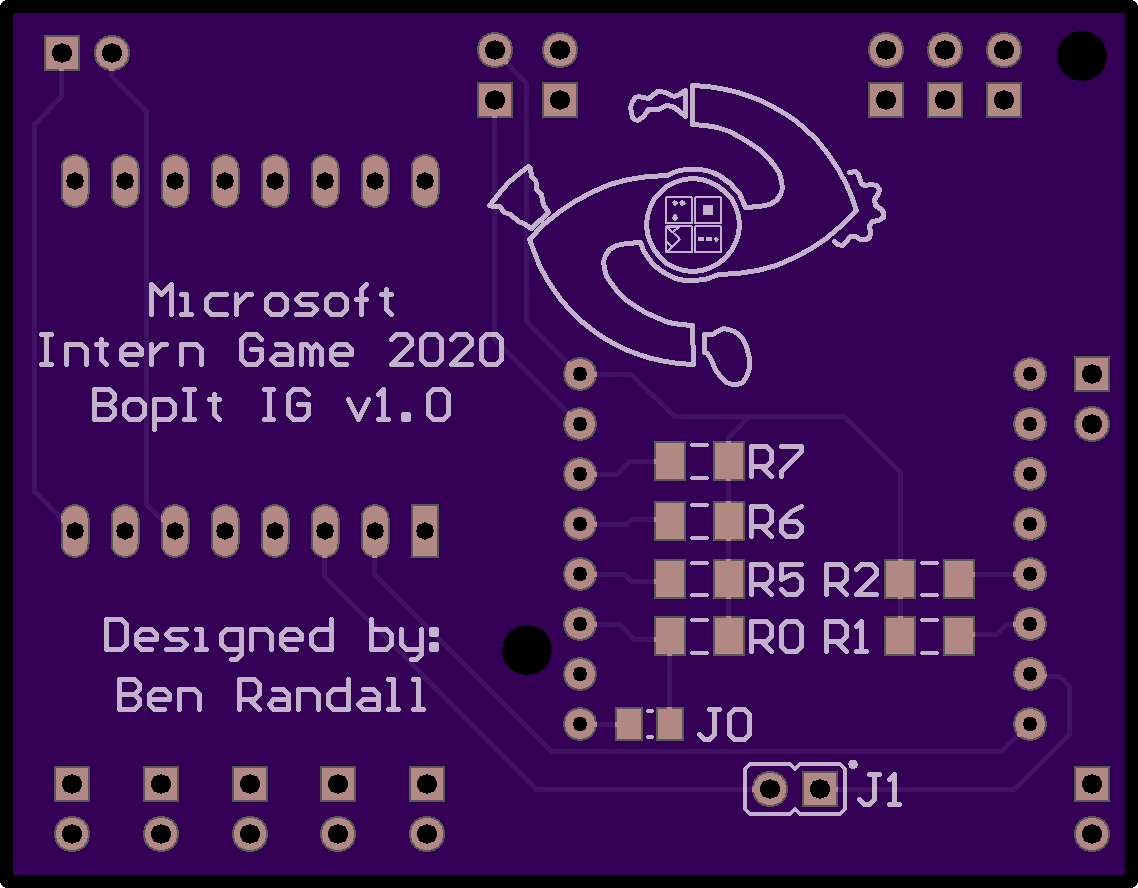

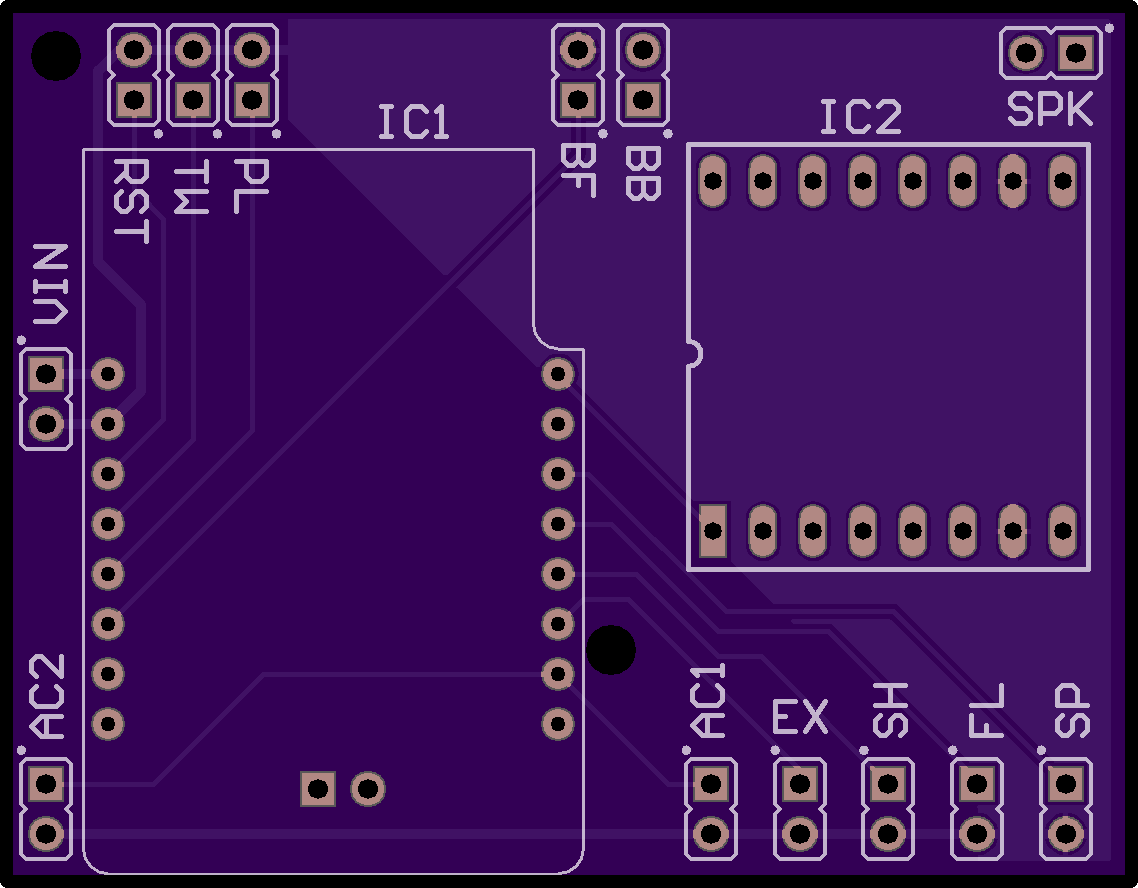

A replacement for the internals of a BopIt XT for use in the Microsoft Intern Game 2020.

Rev 2

TinyLoRa Breakout board. Project files can be found here: https://github.com/condorxan/TinyLoRa

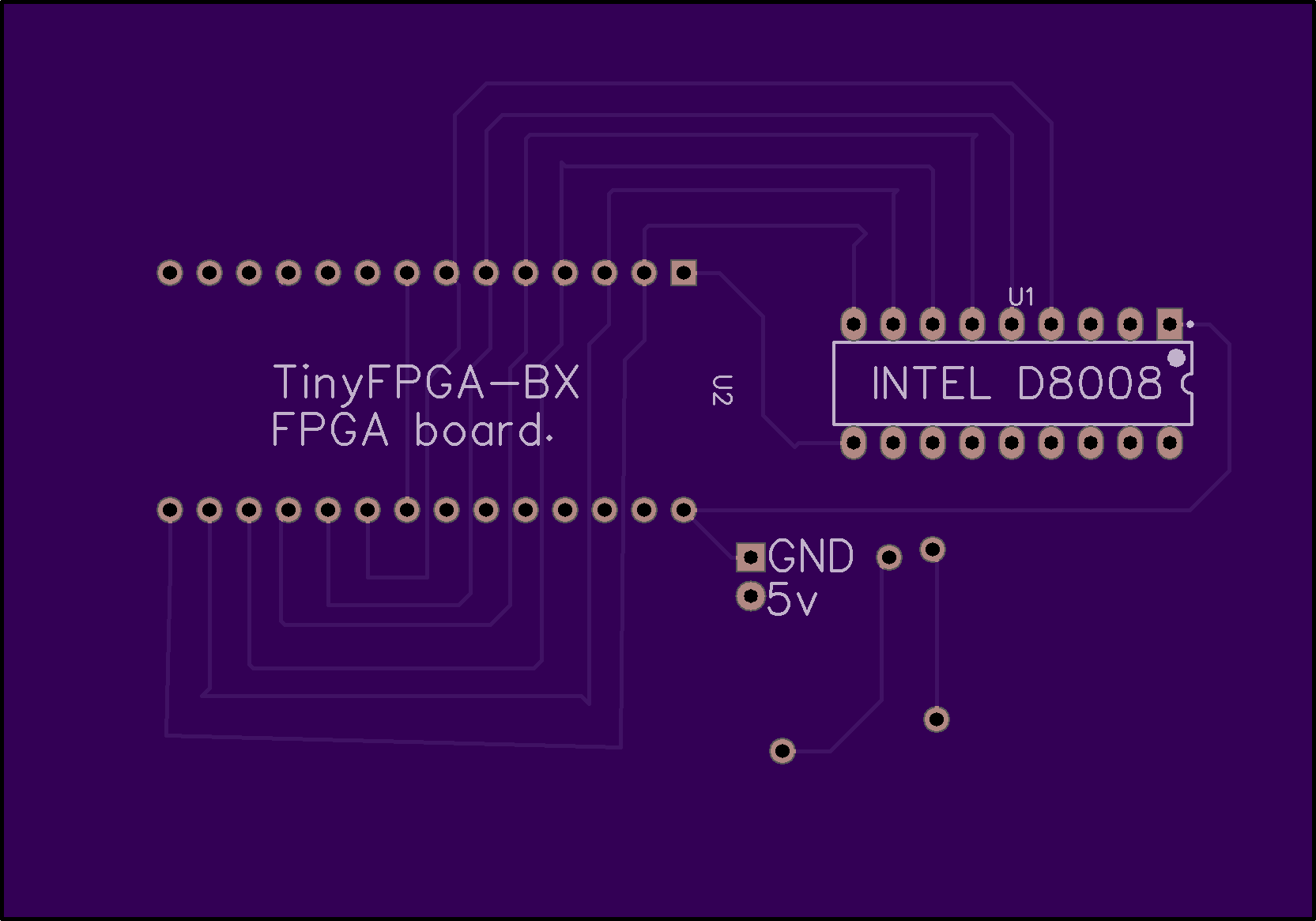

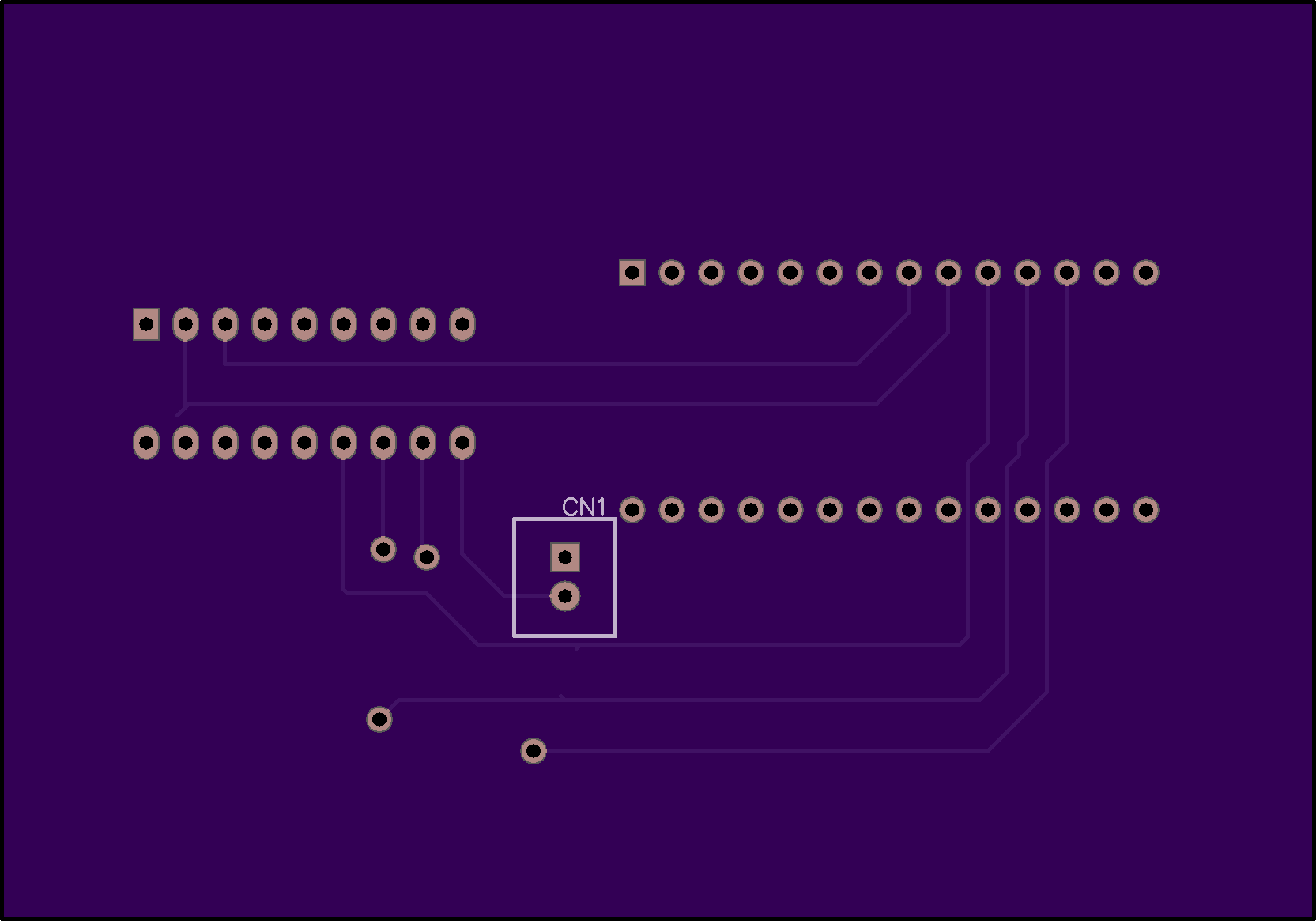

An experimental Intel D8008 computer that uses a TinyFPGA-BX board as the support circuitry… In order to power the system, it is required that an arduino uno (without the AVR chip) be connected to a nine volt battery , then the five volt pin must be connected to the 8008 computer board’s five volt connection, and the ground connection on the 8008 computer connected to the ground pin on the arduino board…

μStick

μStick (pronounced as “mu stick” or micro Stick)or uStick is a 32bit Arm Cortex M0+ based Arduino Compatible micro development board specially designed for battery driven projects/products. The board is released under CC-BY-SA 4.0

Features:

• Micro Dev Board (39mm x 15mm)
• ATSAMD11C14 – 32bit Arm Cortex M0+
• 16kb flash, 4kb SRAM
• Battery charging modes(user configurable with jumper pads):
  • USB 100mA
  • USB 500mA
  • Resistor settable charging current upto 1.6A
• Low noise and low dropout LDO upto 500mA
• Choosable EEPROM(16-512 MegaBit)
• Auto charging and system power management
• Charging status and power good indicator
• Button configurable for reset or general use (pin D15) with debouncing.
  • Use as reset (default), with bootloader entry via reset double-tap
  • Use as a general purpose button, with bootloader entry by holding during powerup.
• ESD protection on USB D+ and D- lines
• 9 solder jumpers on PCB bottom for configuration flexibility
• Arduino compatible (use the Arduino IDE to upload)

A small time-domain reflectometery add-on for your oscilloscope. See the project page for full details:

hackady.io project page

GitHub repo

Second version with a few adjustments to remove LED dead zone around zero and improve triangle output

Breadboard compatable breakout board for the STM32F722 microcontroller.

Find the BOM here

If you need to use alternate parts, be sure to match the package, value, and any other specifications given in the BOM description for that part.

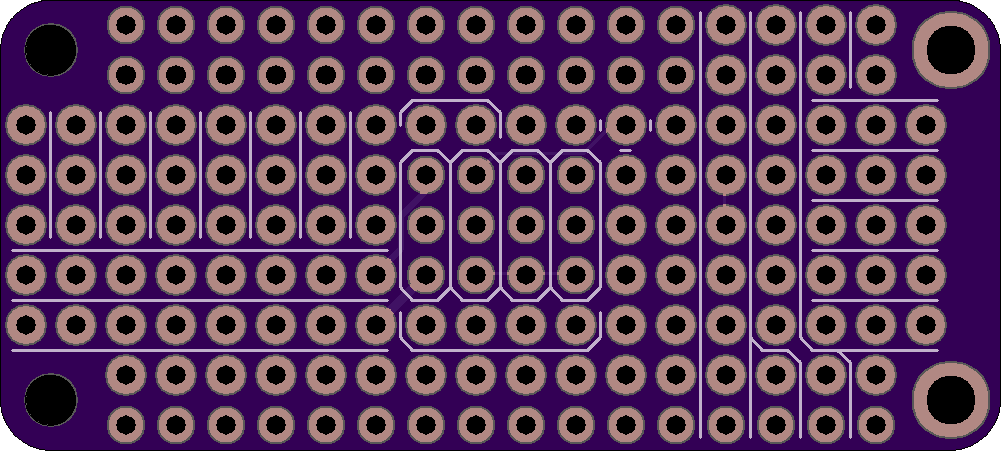

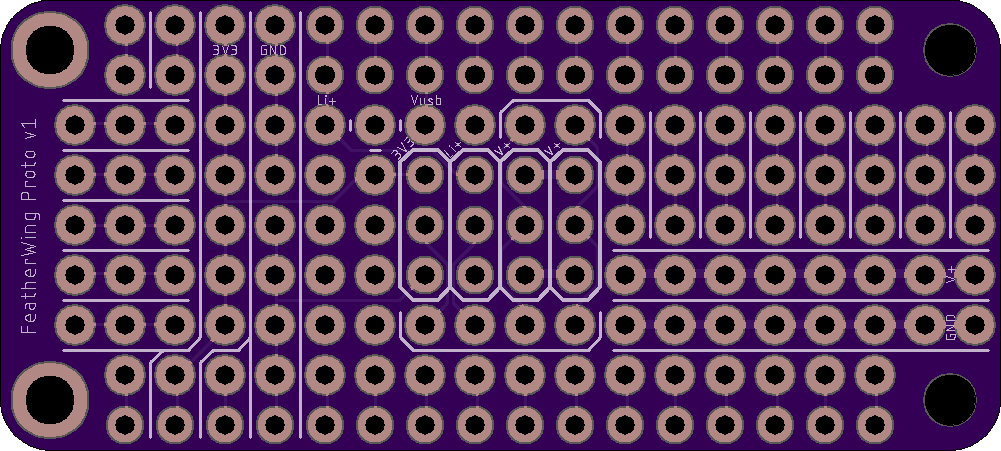

FeatherWing Proto pcb, inspired by Adafruit FeatherWing boards. Compatible with Particle Xenon, Argon and Boron mesh devices.

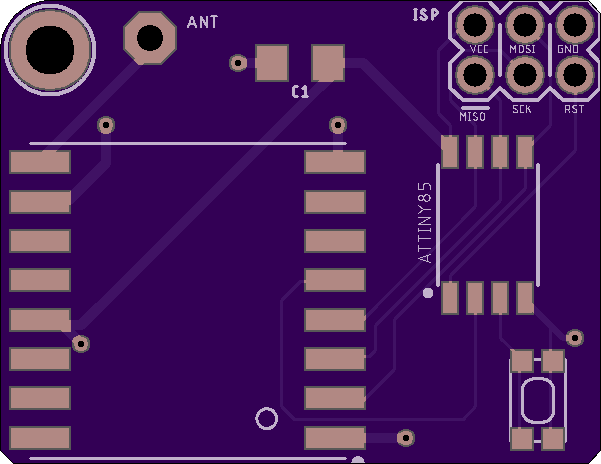

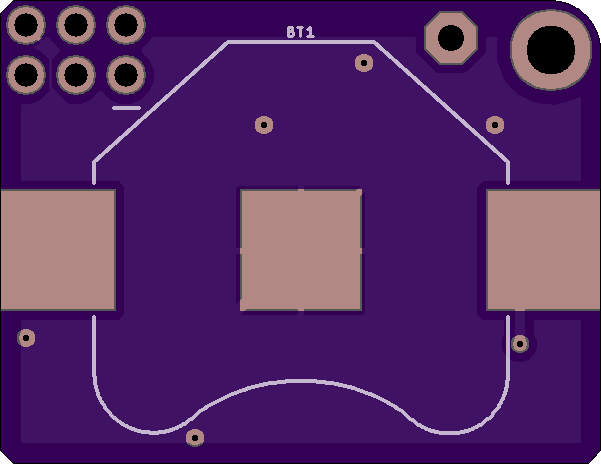

A LoRaWAN node powered by an attiny85V and the RFM95W using a CR2032 coin cell battery. Including a smd button and ISP headers for programming.

Components:

• Attiny85v-10SU

• RFM95W (868 MHz LoRaWAN module)

• 10 uF capacitor (1206)

• KMR231 tact switch (4.2 x 2.8 mm, height 1.9 mm) OR you could solder something else to the pads, for example the 18010P vibration sensor switch

• CR2032 coin cell holder

• CR2032 coin cell

Add a wire antenna of length 82 mm to the ant1 connection (monopole). For coding: look at this for a good starting point: https://github.com/ClemensRiederer/TinyLoRa-BME280_v1.1/blob/master/ATtinyLoRa.cpp

TIP: The attiny85v can measure both the Vcc voltages and the temperature without using an extra pin. Link: http://21stdigitalhome.blogspot.com/2014/10/trinket-attiny85-internal-temperature.html

Dual-Resonance Solid-State Tesla Coil Thermal Limiter Board V1. For use with the Dual Resonance Solid-State Tesla Coil Driver V2.

Dual-Resonance Solid-State Tesla Coil Bus Capacitor Board V2. Used for mounting smaller, through-hole, bus caps to the DRSSTC Bus Supply V1 board. Requires 710-7461097 : Würth Terminals WP-BUFU Pin-Plate 16Pin Bush M6 180A.

Dual-Resonance Solid-State Tesla Coil 340VDC Bus Supply (from 120VAC only).

NOTE: This board has been replaced by the newer DRSSTC Bus Supply V2 design!

This version is designed to be used with large electrolytic capacitors, such as Cornell-Dubilier 500C series screw-terminal mount. The prototype circuit is using two 10,000uF 450VDC Cornell-Dubilier 500C capacitors. Or optionally, you can use the DRSSTC Bus Caps V2 board to mount smaller, through-hole, bus caps to this board using 710-7461097 : Würth Terminals WP-BUFU Pin-Plate 16Pin Bush M6 180A.

ERRATA: LED D3 and Opto-Isolator U1 cannot both be populated or else only one of the two will function, based on their required voltage drop. Both are designed as “HV Power On” indicators, only one is on-board and the other is remote. Decide if you want your indicator on-board or remote and populate accordingly. OR, you can modify the circuit so that D3 and U1 are in series instead of parallel. For that, cut the two traces leading from D4 to D3, and place a jumper between the anode of D4 (the LL4148) and the cathode of D3 (the visible LED). That will place the LED internal to the U1 Opto-Isolator in series with the visible LED D3 and allow both to function correctly (this is the preferred fix).

This board, along with the DRSSTC Bridge V2 replace the original DRSSTC Bridge V1.

Dual Resonance Solid-State Tesla Coil Full-Bridge V2.

Do NOT Build This Board It has been replaced by the DRSSTC Driver V2.1.

Driver board for a Dual-Resonance Solid-State Musical Tesla Coil. This version replaces the older V1 version. This design features a zero-current-switching phase-lead circuit, an over-current detection/lockout circuit, an under-voltage lockout circuit, and a PLL-based adjustable dead-time delay. Requires regulated 24VDC power supply. And is designed to be used with either the original DRSSTC Full Bridge Board or the DRSSTC V2 Bridge Board with the DRSSTC Bus Supply V1.

This board adds an interface for a thermal (or other) shutdown (See the DRSSTC Thermal Limiter Board V1 ). It also replaces the UCC37322 driver chips, which kept frying on the V1 board, with UCC27424 driven FDD8424H push-pull MOSFET pairs for driving the gate-drive transformers, allowing for much higher current gate drive. And, this board also supports “skip pulse” (or specifically “skip IGBT drive cycle”) mode in addition to the “skip interrupter” mode typically used. This allows harder driving to the over-current detector threshold.

ERRATA:

1) Resistor R45, which is the current-limiter setting for the on-board +12volt switching power supply, should be 0.2-ohm 1/2W instead of 1-ohm 1/2W. That will allow a full 750mA output from the +12v supply instead of being limited to 150mA, which wasn’t even enough to drive the cooling fan (which needs around 370mA).

2) Similarly, diode D35, in that switching supply circuit, should not be a MBR0540, which is only rated for 500mA. Instead, it should be at least a 1A part, or preferably a PMEG3020ER,115 Schottky diode, which is rated at 2A and has a very low Vf of 365mV for improved efficiency, and is a drop-in replacement for the originally spec’d part.

3) There is a logic error in the lockout circuit that causes a race-condition with the U9 flip-flop (74LVC1G74) between the fiber-optic edge detect signal on the set-input and the main fiber-optic signal on the clock pin. This can cause the system to never start and results in only a short burst of output at the beginning of each interrupter pulse, and it also prevents the skip-pulse mode from working at all.

To resolve, the fiber optic input signal needs to be removed from pin 1 of U9. And the skip-pulse signal on pin 2 needs to move to pin 1. And pin 2 needs to get tied to +5v. To do this, cut the trace leading into pin 1 of U9 (leaving the 90-degree junction intact where it runs under U4), and cut the trace leading into pin 2 of U9 between U9 and resistor R52. Solder a jumper between pin 1 of U9 and R52, on the end where the trace to pin 2 was cut (this takes care of moving the skip-pulse signal from pin 2 to pin 1). And solder a small jumper wire to pin 2 of U9 that runs to +5v. The closest and probably most convenient point for +5v is the far end of capacitor C40, which is the power decoupling capacitor for U9. This jumper can be quite tricky as it has to solder to a single pin on a TSSOP package (0.65mm pin-spacing).

4) Do NOT enable the PLL mode unless you swap U11 and U12 from the non-inverting UCC27424 to the inverting UCC27423 part. Since the FDD8424H output driver transistors invert the output from these chips, if the SG3525 is used with the non-inverting UCC27424, then the dead-time from SG3525 will be converted into intentional overlap between the high-side and low-side of the bridge and you’ll blow the bridge off the board faster than you can blink!! Another alternative might be to use the SG3527 for U3 instead of the SG3525, but it might be difficult to locate since the SG3527 is obsolete.

5) Since the high-side of the FDD8424H circuit is only a momentarily triggered (AC Coupled) state, the disabled state for U11 and U12 need to be high to keep the low-side of the FDD8424H parts activated. However, the enable pin on the UCC27424 sets the outputs low when disabling the output. This will cause a momentary trigger of the FDD8424H to high and then go high impedance when disabling the output. This means the gates of the bridge will be left in a floating state and can possibly turn on unintentionally. The fix for this is to not use the enable inputs of U11 and U12 (pins 1 and 8) at all and instead tie them high (or use UCC27323 parts instead which have no enable signal). Then, add ‘AND’ gates to ‘AND’ the enable output pin 5 of U6 (74LVC1G74) with the ‘Direct’ and ‘~Direct’ outputs of U1 (TL3116 pins 7 and 8) to make the input signals to U11 and U12, via JP2 and JP3, instead of just using ‘Direct’ and ‘~Direct’ only. And switch to the inverting UCC27423 (or UCC27323), which also fixes Errata Item #4. This one is pretty much a showstopper for this board, as it would require extensive surgery to fix. Therefore, it’s recommended that you Do Not Build This Board .

This errata has been resolved in DRSSTC Driver V2.1.

TPS610985 battery power sucker with 2 oputs and very low current

Lakehead sole
