acan_multitap

author: splash
Top
Bottom

2 layer board of 3.94 x 2.68 inches (100.1 x 68.1 mm)
Uploaded: July 30, 2021
Shared: July 30, 2021
Total Price: $52.85

Super Acan Multitap - for 4 players

BOM

C1 - C6: 0.1uF 50V MLCC (0805 package)

C7: 22uF 25V capacitor

R1 - R4: 10K Ohm resistor (0805 package)

U1: 74HC00

U6: 74HC02

U5: 74HC125

U4: 74HC139

U2 - U3: 74HC161

JST-PH 9pin male connector (You can also solder wire directly to the via)

DE9 male connector x 4

All the 74series IC are in TSSOP package.

Super Acan Multitap - for 4 players

BOM

C1 - C6: 0.1uF 50V MLCC (0805 package)

C7: 22uF 25V capacitor

R1 - R4: 10K Ohm resistor (0805 package)

U1: 74HC00

U6: 74HC02

U5: 74HC125

U4: 74HC139

U2 - U3: 74HC161

JST-PH 9pin male connector (You can also solder wire directly to the via)

DE9 male connector x 4

All the 74series IC are in TSSOP package.

Top

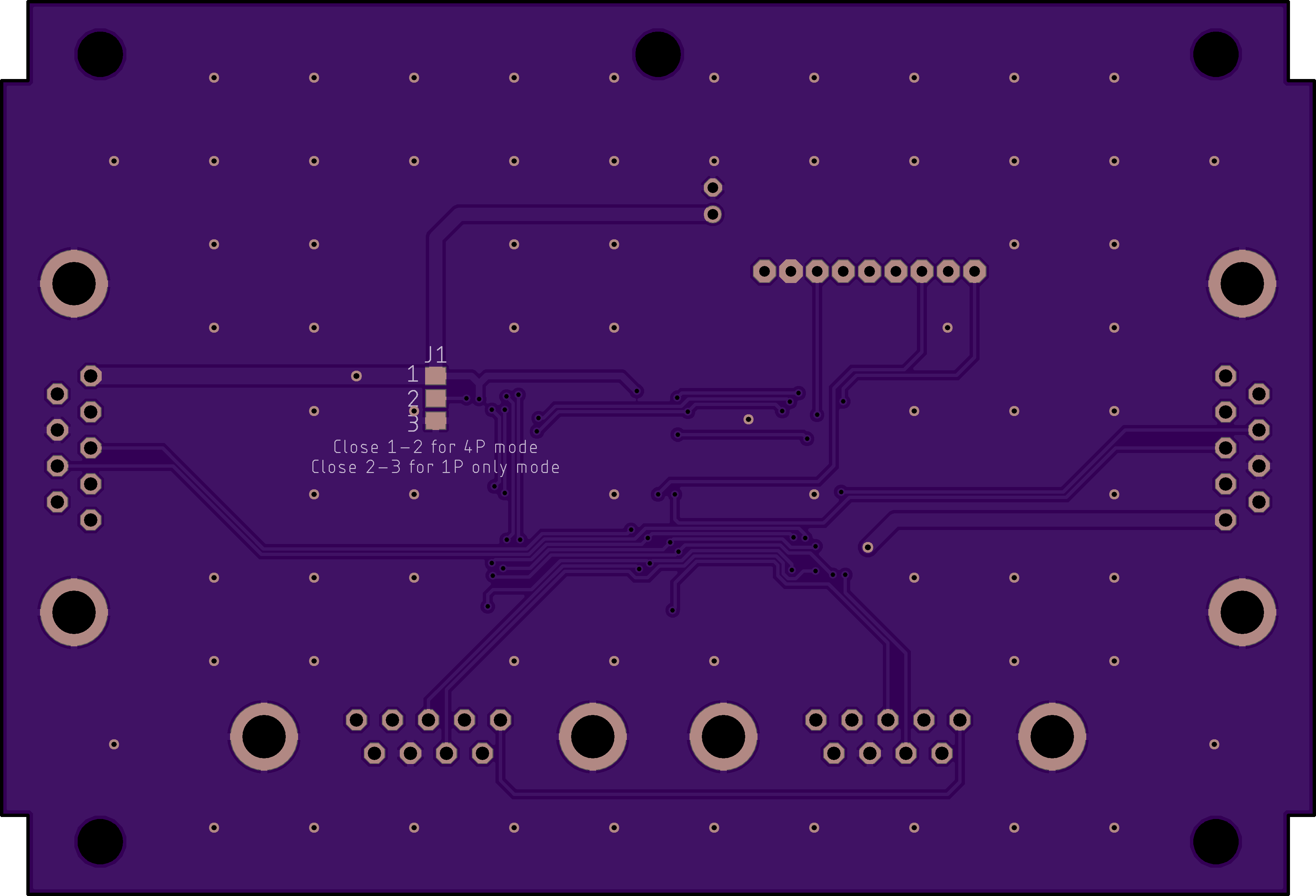

Bottom
