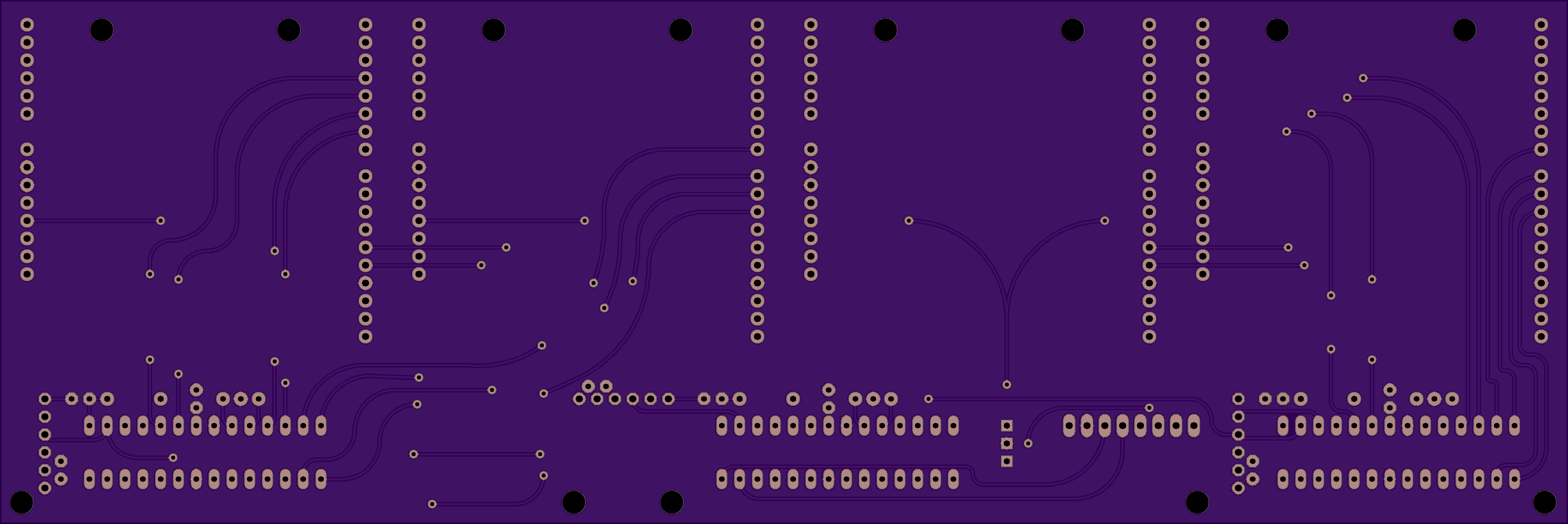

NOTE: This is deprecated, use https://www.oshpark.com/shared_projects/AJ7xHRxi instead. Unless you plan on not using the internal speaker.

RGB SCART daughter board for the IF-C01COMG Clone board. This board also has support for a sync stripper circuit selectable by SW2. If enabled the LED in D1 will light up. Supported sync strippers are LM1881 and EL1883 (and whatever other pin compatible). LM1881 supports running directly off 12V and thus if using this, close the JP1 jumper with solder, and you can then skip U2 and its two capacitors C5 and C6. EL1883 runs off 5V, which must then be supplied by U2, and JP2 then needs to be closed instead. THEREFORE ONLY CLOSE EITHER JP1 OR JP2, NOT BOTH!

SW1 selects to route audio to stereo RCA plugs or to internal mono audio.

SW1 and SW2 can also be omitted and jumped accordingly (the switches are quite expensive…)

Parts list:

• J1, Kycon K-SCARTX-024 (Mouser P/N: 806-K-SCARTX-024)
• J2, RCJ-022 (Mouser P/N: 490-RCJ-022)
• J3, RCJ-023 (Mouser P/N: 490-RCJ-023)
• J4, Molex 52852-1472 (Mouser P/N: 538-52852-1472)
• C1, 100nF 0805 MLCC
• C2, 10uF 0805 MLCC
• C3, 100nF 0805 MLCC
• C4, 100nF 0805 MLCC
• C5, 10uF 0805 MLCC
• C6, 10uF 0805 MLCC
• R1, 680k 1% 0805 Resistor
• R2, 1.5k (or whatever, depending on LED brightness preference) 0805 Resistor
• D1, 5mm LED of whatever color
• U1, LM1881 SOIC-8 (Mouser P/N: 926-LM1881MX/NOPB ) or EL1883 (Mouser P/N: 968-EL1883ISZ)
• U2, AZ1117IH-5.0TRG1, SOT-223-3, 5V regulator (Mouser P/N: 621-AZ1117IH-5.0TRG1)
• SW1 ESWITCH DPDT (Mouser P/N: 612-100-F1121, or much cheaper TME.eu TSM202A2)
• SW2 ESWITCH DPDT (Mouser P/N: 612-100-F1121, or much cheaper TME.eu TSM202A2)

Connect the two boards with a Molex 15267-0300 FPC cable (Mouser P/N: 538-15267-0300)

The mechanical slots for the SCART plug are hacked in due to OSHParks missing oval slot support. It should be good though.

Base board here: https://www.oshpark.com/shared_projects/hMJMT0yM

Mounting bracket here: https://www.thingiverse.com/thing:2888467

Interface PCB for testing RISKBAND batteries during assembly.

OreSat Solar Module v2

OreSat ACS Baord v1.1 - Reaction Wheel and Magnetorquer control board.

Dev board for the ON Semi AR0130 camera board

Simple adapter that allows BNC probes to be attached to a Fluke Scopemeter that uses banana sockets.

Uses 2x Pomona 4788 right angle BNC female sockets and 3x Pomona 72918 4mm banana plugs with threaded studs.

See https://github.com/pepaslabs/dr-frank-ltz1000. Based on the design at http://www.eevblog.com/forum/metrology/mx-reference/msg1297126/#msg1297126 See https://github.com/pepaslabs/dr-frank-ltz1000

See https://github.com/pepaslabs/lm399-stick

An LTZ1000-based 7V reference, based on the circuits of Andreas of the EEVBlog forum.

See http://www.eevblog.com/forum/metrology/px-reference/ and https://github.com/pepaslabs/px-ref/tree/master/kicad/releases/v2.4.1

NOTE: Deprecated design, use https://www.oshpark.com/shared_projects/pmMFZFxc

A BNC input board for the IF-C01COMG Clone also present here.

I have NOT tried it out myself yet…

Parts list:

• J1, Molex 52852-1472 (Mouser P/N: 538-52852-1472)
• GY1, Molex 73171-1900 (Mouser P/N: 538-73171-1900)
• B-BY1, Molex 73171-1900
• R-RY1, Molex 73171-1900
• HD-CS1, Molex 73171-1900
• VD, Molex 73171-1900
• L1, RCJ-023 (Mouser P/N: 490-RCJ-023)
• R1, RCJ-022 (Mouser P/N: 490-RCJ-022)

Connect the two boards with a Molex 15267-0300 FPC cable (Mouser P/N: 538-15267-0300)

Base board here: https://www.oshpark.com/shared_projects/hMJMT0yM

made by this guy https://github.com/laneboysrc/nrf24l01-rc

Single PS/2 Connector Interface Board for TK-II-PB

Dual PS/2 Connector Interface Board for TK-II-PB

New version of the TransKey for Interfacing a PS/2 Keyboard to the Atari 8-Bit XE Gaming System

this board is to be used in conjunction with my other board (ili9341 18Pin LCD Connector Board)

once soldered to the Raspberry Pi the two boards are connected via a 8pin 1.0mm pitch ribbon cable (connectors & ribbon cable will be required)

this is to be used with this script to achieve 60FPS https://sudomod.com/forum/viewtopic.php?f=22&p=60767#p60767

.
