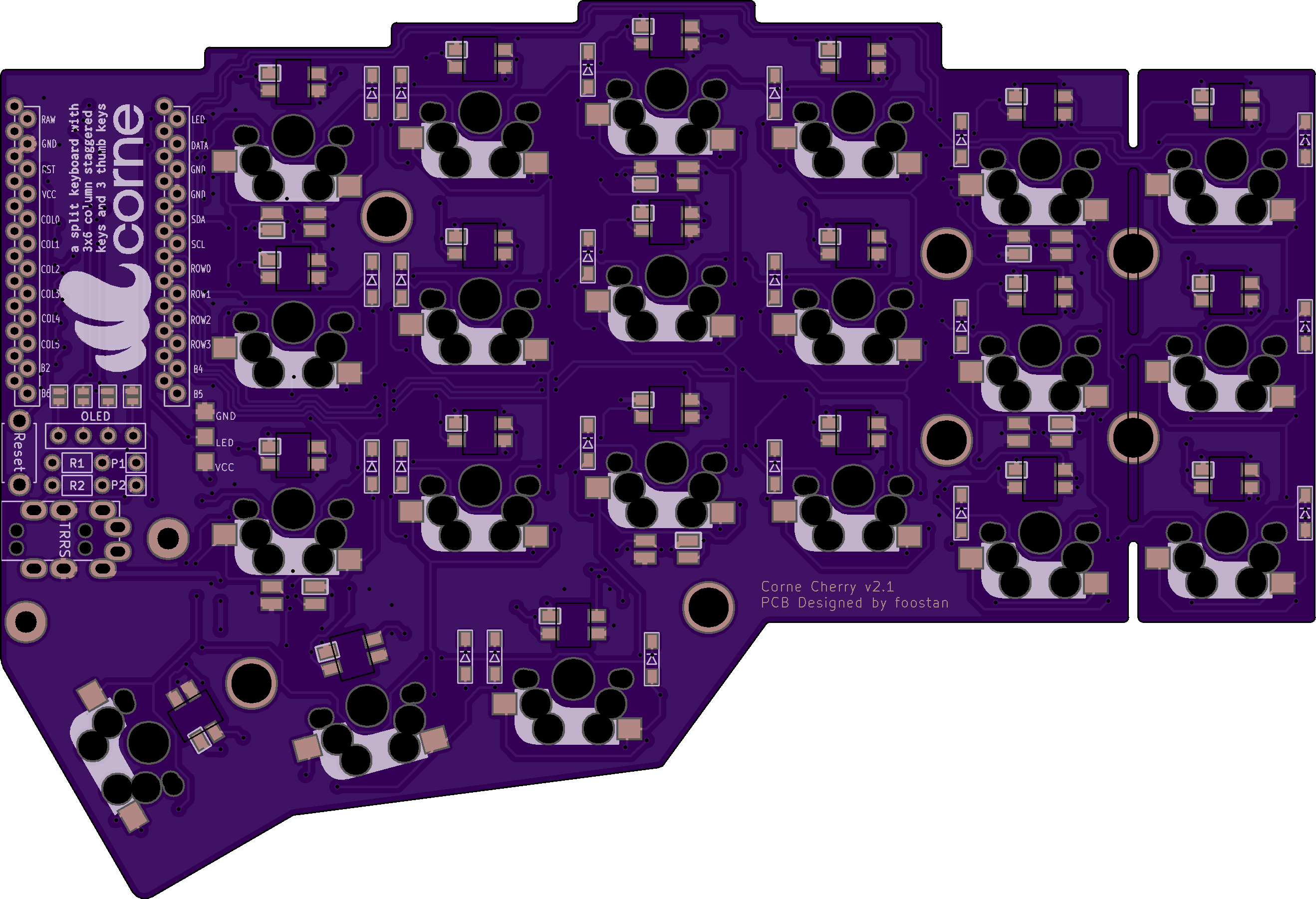

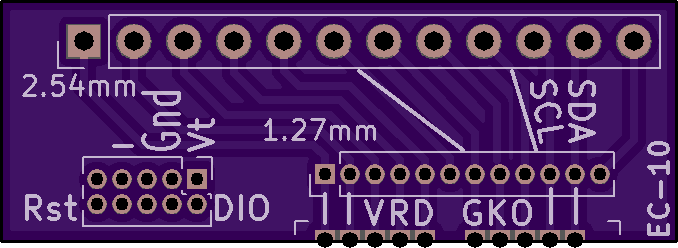

Shared Projects

DOD 440 Envelope Filter

Overdrive

https://www.arcade-projects.com/forums/index.php?thread/8858-sega-saturn-to-neo-geo-controller-adapters/&postID=143980#post143980

https://www.arcade-projects.com/forums/index.php?thread/8858-sega-saturn-to-neo-geo-controller-adapters/&postID=143980#post143980

TheLittleEngineers_org-CC3-SpeedBump-V1R1-30-MARCH-1987 is based on an original design from 11 September 1986. This product restores the OLD high-speed POKE to the TRS80 CoCo 3. The project is on github: https://github.com/TheLittleEngineers/CC3-SpeedBump-V1R1

This product, TheLittleEngineers.org-CC3-SpeedBump-V1R1-30-MARCH-1987, is intended to add the old TRS80 Color Computer 1 and 2 High-Speed POKE back to the Tandy Color Computer 3, in hardware.

SpeedBump - A Hardware Project For The Tandy Radio Shack TRS-80 Color Computer 3 by “Ankle” Bob. This is a relatively simple project to restore, to an extent, the Color Computer 1 and 2 high-speed POKE to the Tandy Color Computer 3. Some might consider this to be a bit of folly, after all, “Doesn’t the Color Cumputer 3 possess a superior high-speed POKE?” Yes, indeed it does. However, one of the very first things that I noticed about my newly acquired CoCo 3, circa 1986, was the fact that the old high-speed POKE no longer functioned. This had the effect of rendering some of my favorite programs, such as “Paint King”, unusable, or nearly so. Now, it was a very simple matter to patch “Paint King” and similar BASIC and unprotected programs by simply substituting the new POKE for the old. In fact, this actually improved the functionality of programs such as “Paint King”. This was due to the CoCo 3 high-speed POKE NOT BEING ADDRESS DEPENDENT, as it was on the CoCo 1 and 2. Many machine-language and “protected” programs proved difficult, and in some cases, impossible to patch. After wasting many hours with a “Disk Zapper”, hacking and patching, I set about to solve the problem, once and for all, in hardware. In theory, at least, it should be quite possible and simple enough to socket the MC68B09E CPU and stick a circuit between the CPU and the rest of the system to monitor the Address Buss and pass all addresses straight through, EXCEPT for the old high/slow-speed POKE addresses. The old high/slow-speed POKE addresses would be modified (converted to the NEW high/slow-speed addresses) and passed through as the new addresses. Thanks to the amazingly versatile (at the time) PALs and PLDs of the era, this is exactly what I did. Two PLD/PALs provided an elegant two chip solution. A request from my nephew, “Little John”, prompted me, in part, to redesign the device utilizing a single 22V10 GAL. This was a desirable decision due to the scarcity of the older PLD and PAL devices and the fact that often, when purchased, the older devices have already been programmed. Being fusible link based devices, this renders them unusable and completely useless. A GAL chip is also much faster and flash-based (reusable) with some offering In System Programming (such as the ISPGAL22V10 from Lattice.) The ISP version is not used here, as they are a bit difficult to obtain, so you’ll need a GAL programmer to complete this project, or at least access to one. The g22v10d is reccommended due to its higher speed than the plain vanilla g22v10, although it should work as well. The A,B and C versions could be used as well. The CUPL code is self-explanatory and this truly is a very simple device. Note that the two old addresses are simply converted to the two new addresses. This effectively restores the old high-speed POKE with the exception that the machine will run at 1.79MHz at all times when the POKE is enabled. This is in contrast to the CoCo 1 and 2, which only ran at 1.79MHz during access to the ROM area ($8000 - $FEFF) and only if the ROMs were enabled and also at a small section of I/O addresses. It ran at .89MHz for accesses to the lower 32K (RAM area) and, if the machine were a 64K RAM machine running in All RAM mode, it would stay at .89MHz during accesses to the $8000-$FEFF area as well. In short, the old high speed POKE only functioned if the BASIC ROMs were in circuit and being executed by the CPU (using the original 74LS783/MC6883 S.A.M. - later versions of the MC6883 and the 74LS785 allowed the address dependent mode to function while in “ALL-RAM” mode as well). This version, the CC3-SpeedBump-V1R1-30-MARCH-1987 is licensed under a Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0) License: https://creativecommons.org/licenses/by-sa/4.0/

• PLEASE NOTE: THIS VERSION HAS NOT YET BEEN TESTED.

Please note: This design should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

HVNPWR Rev A - HV&PWR

I was bored on good friday. Literary 5 min design.

It has a 4 Dragonfly Vertical Connector fanout on board w/ board spacing to match the ITOP modules.

It also has a Ultravolt XS module for HV outputs. (~50mVrms) for quick biasing test.

it can be powered by Micro-USB and Dragonfly Vertical Connectors.

Meh…

BitsyLED is a minimal firmware to drive RGB LED’s (WS2811, WS2812, NeoPixels, etc). It’s designed for anything RC but also can be used for other projects including Christmas lights, Lego’s, or even your real car.

This is the BitsyLED board - a small board powering an ATTINY84 that exposes 3 channels on a common RC signal layout (GND, 5V, DATA). The board itself can fit up to 5 range configurations each having 3 strands with 10 Led’s / strand.

Parts needed (Digikey.com): - ATTINY84 (Part ATTINY84A-SSURCT-ND) - Capacitor in 805 packaging (587-1304-1-ND) - Diode in SOD-123 packaging (MMSZ5242B-TPMSCT-ND)

More info at https://github.com/flyandi/BitsyLED

A DHT22 / ESP-01 board with robust power filtering and control options.

Breakout to test Tempo’s TSDP18X PDM-to-I2S converter IC using the ICS41350 PDM microphone (20 - 40 kHz) or ICS41352 (20 - 80 kHz) for easy I2S ultrasound capture.

https://temposemi.com/wp-content/uploads/2018/10/TSDP18xx_DS.pdf

Simple SCART to VGA with optional sync stripper. The only necessary parts are J1, J2, J4, and J5, and a 2.54 mm jumper to select the “bypass” option.

Ranging sensor for Bin Level Monitoring application. Using 2-mm-pitch machine pin headers for easier (?) mounting.

Happy Little SAOs

This product, TheLittleEngineers.org-27C512E-TO-2532S-V1R0.20.APRIL.2019, is intended to allow a 27512 or 27C512 EPROM to be placed into a TMS2532 EPROM socket. The 27512 is divided into 16 banks of 4Kbytes via the four jumpers at the bottom of the socket. https://github.com/TheLittleEngineers/27C512E-TO-2532S-V1R0

This project is licensed under a Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0) License: https://creativecommons.org/licenses/by-sa/4.0/

OshPark: https://oshpark.com/shared_projects/5EPozkYK

• PLEASE NOTE: THIS VERSION HAS NOT YET BEEN TESTED.

Please note: This is derived from an original design by “Little” John Eric and/or his father “Big” John Robert (J.R.) by “Uncle” Robert Allen. It should be thoroughly scrutinized and verified prior to actual use of any kind. DISCLAIMER: The following article is provided for informational purposes only. Any attempt to modify your computer without the proper skills to do so may void your computer. Any attempt to modify your computer without unplugging it first may void you. This Information is provided “as-is” with no guarantee of fitness for any purpose, either explicit or implied. We disclaim any and all responsibility for losses incurred through the use of this information. By using this information, you are deemed to have accepted these conditions of use, and you agree NOT to sue us. CLARIFICATION: The above disclaimer states as plainly as possible that if you decide to make use of any of the information contained within this document that you do so at your own risk. Designing hardware for the CoCo (ColorComputer) and other vintage hardware is a hobby of ours and is not motivated by any desire of profits. As this is a not for profit venture, obviously we can’t afford not to disclaim the use of this information.

Raspberry Pi programmer and breakout for the ATtiny85.

Now with correct optoisolator footprint and MIDI Type A
