OSHW SNES Controller PCB - Through-Hole Edition
author: Taylor-MadeAK
2 layer board of 4.96 x 1.77 inches (126.0 x 45.0 mm)
Uploaded:
September 26, 2026
Shared:
September 26, 2026
Total Price:
$43.90

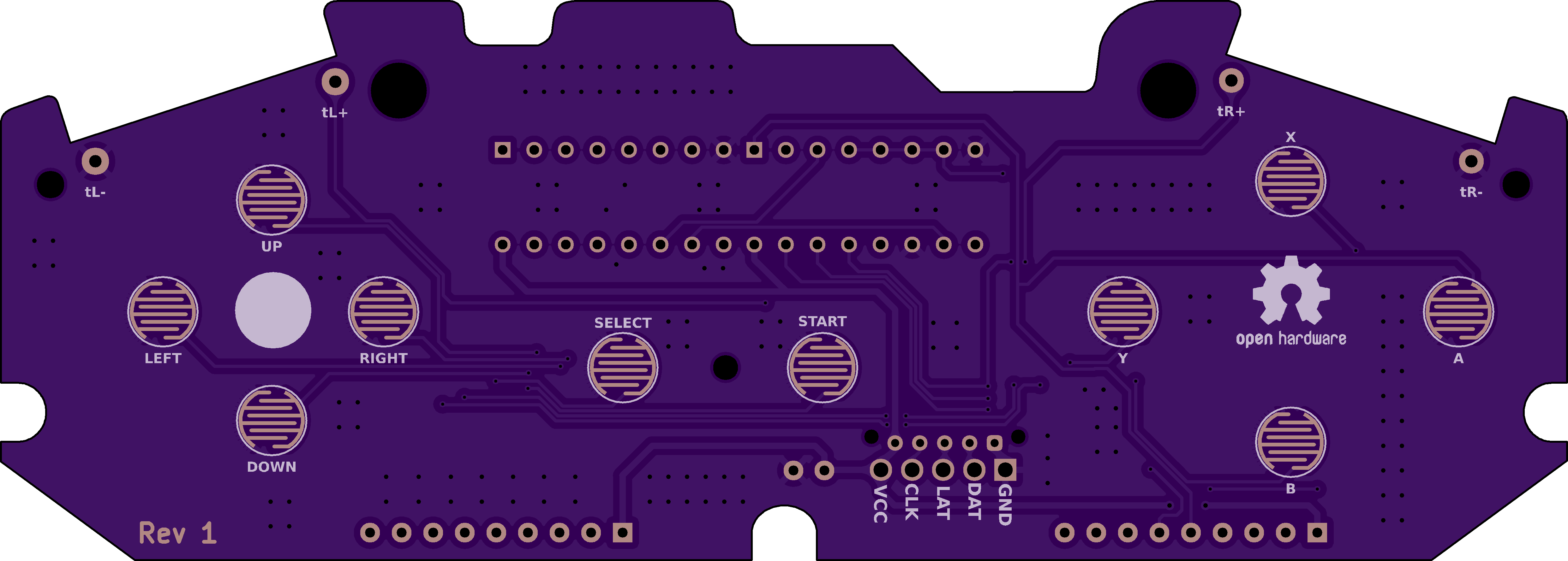

This is a drop-in replacement PCB for original Super Nintendo/Super Famicom controllers that uses all through-hole components in a more beginner-friendly design. This design sacrifices the SOCD filter circuitry and lighted buttons of my other design in favor of using components that are easier to solder by hand.

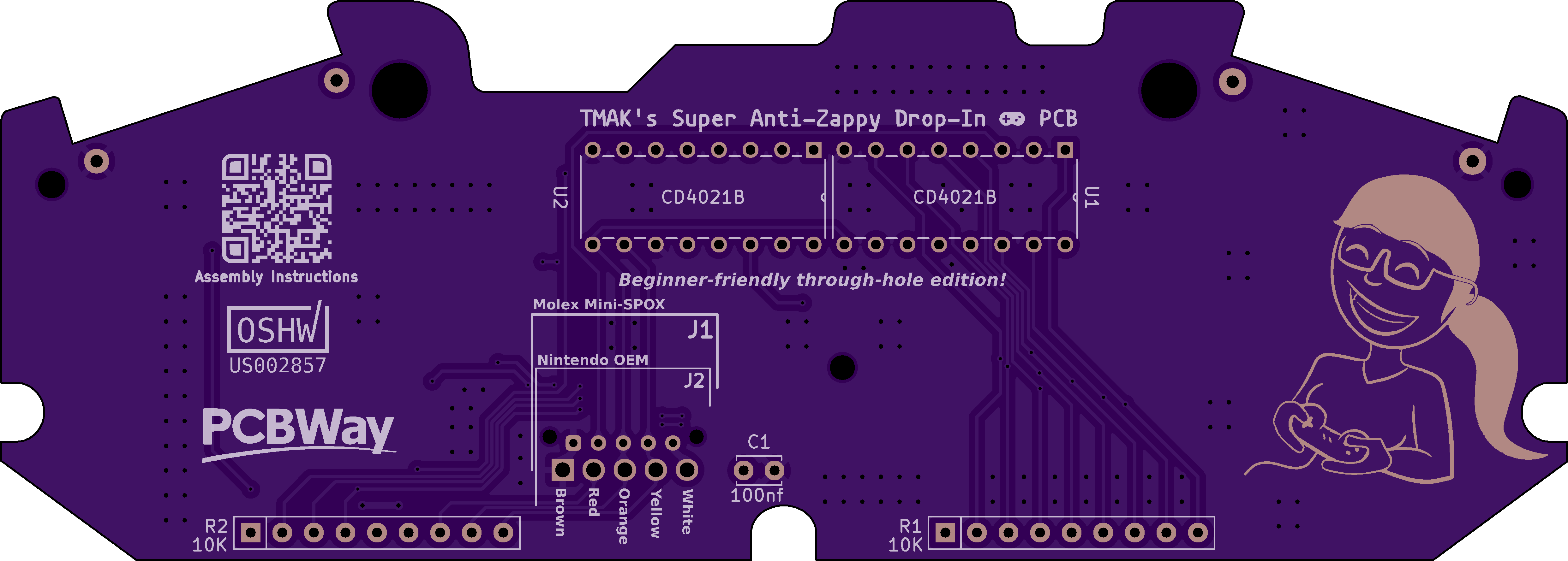

IMPORTANT ASSEMBLY NOTE: It is very important to trim the resistor array legs as flush as possible on this design. The placement of these arrays overlaps some PCB supports on the inside of the front face of the controller housing, and not trimming these legs as flat as possible will result in difficulty closing the controller housing.
