DCHDMI Flex.kicad_pcb

author: iVirtualZero
Top
Bottom

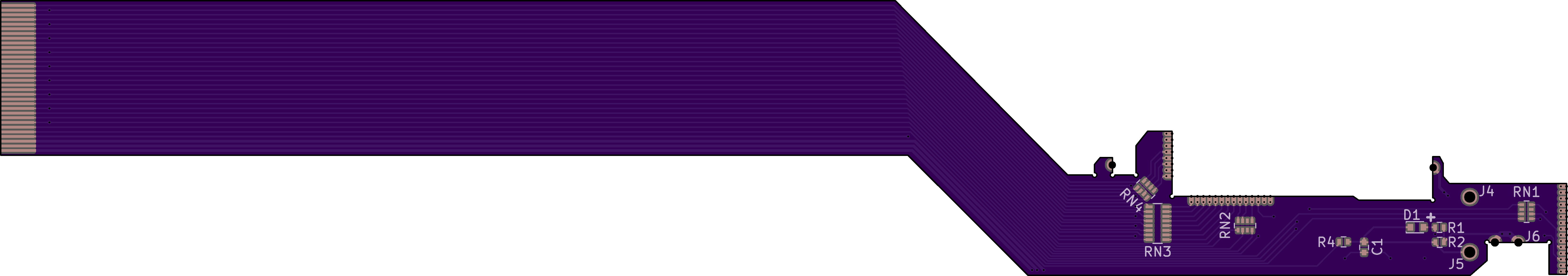

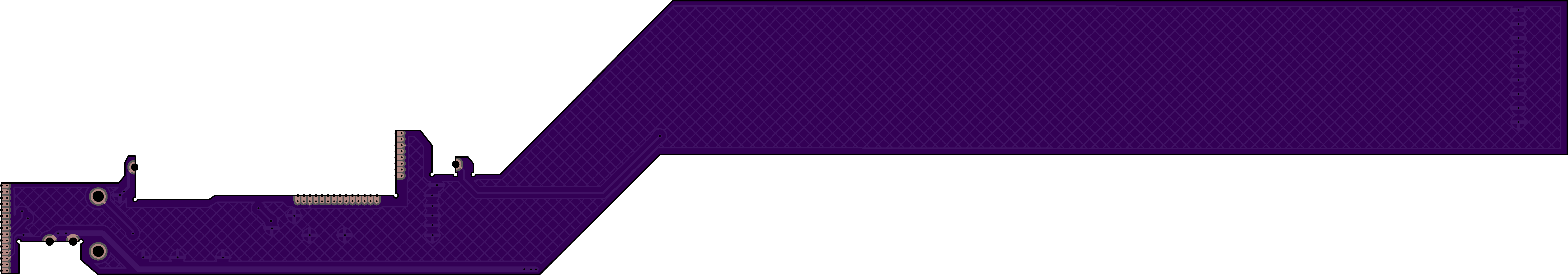

2 layer board of 6.60 x 1.15 inches (167.5 x 29.3 mm)
Uploaded: May 28, 2025
Shared: May 28, 2025
Total Price: $38.05

DCHDMI Solder on Flex for building or repairing your opensource DCHDMI Mod for the Dreamcast. Be sure to order this as a Flex and not a PCB.

Schematics with BOM can be found on Github.

All credit is due to chriz2600 and Citrus3000psi for creating this opensource mod. Be sure give them your support.

DCHDMI Solder on Flex for building or repairing your opensource DCHDMI Mod for the Dreamcast. Be sure to order this as a Flex and not a PCB.

Schematics with BOM can be found on Github.

All credit is due to chriz2600 and Citrus3000psi for creating this opensource mod. Be sure give them your support.
