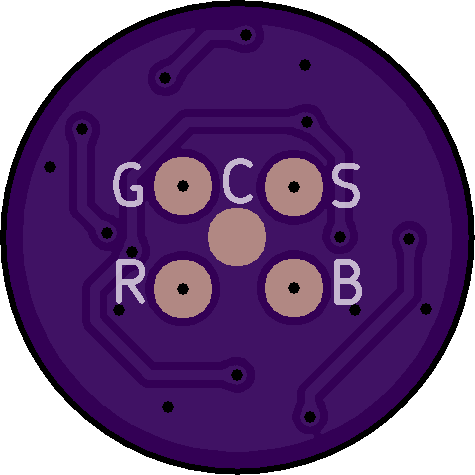

11.9mm RGB eSwitch PCB
author: INeedMoreLumens
2 layer board of 0.47 x 0.47 inches (11.9 x 11.9 mm)
Uploaded:
January 18, 2026
Shared:
February 18, 2026
Total Price:
$1.05
11.9mm RGB eSwitch PCB for Convoy or DDH Hosts.
Choose the Thin 0.8mm 2oz Option for this PCB
Resistors are 0402
I recommend starting with the following resistor values: RR(Red) = 30 Ohm RG(Green) = 4.7K Ohm RB(Blue) = 3K Ohm
RGB LEDs are 1615 Common Cathode I used the APTF1616SEJ3ZGGVBDC Footprint but you can find much cheaper 1615 Common Cathode LEDs on AliExpress.
The switch is a 5.2mm x 5.2mm Gull Wing For Convoy the 1.5mm tall ones should work fine such as the TS18-5-15-SL-260-SMT-TR.
For DDH you need a 2mm or 2.5mm tall such as the TS18-5-20-SL-260-SMT-TR or TS18-5-25-SL-260-SMT-TR
But nearly any 5.2mm x 5.2mm Gullwing Standard Actuator switch should work.
