OSHW SNES Controller Main PCB - rev_6a
author: Taylor-MadeAK
2 layer board of 4.96 x 1.77 inches (126.0 x 45.0 mm)
Uploaded:
July 02, 2026
Shared:
July 02, 2026
Total Price:
$43.90

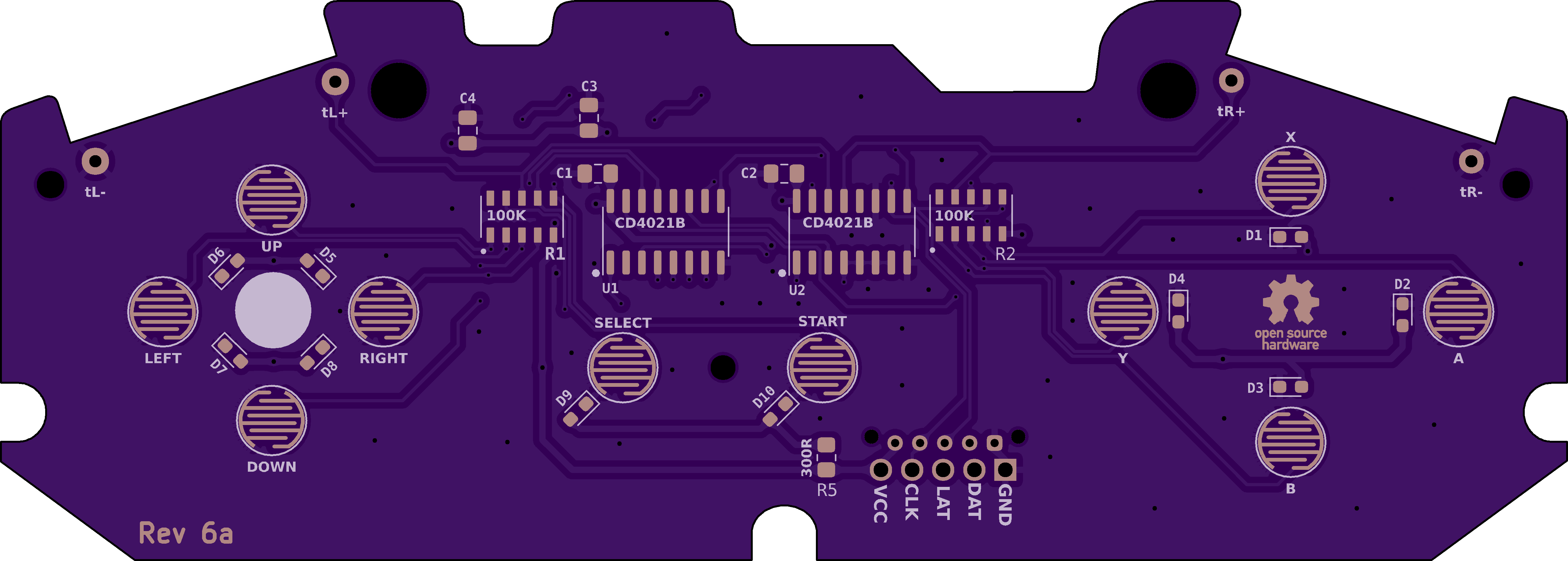

This is a replacement PCB for SNES controllers using readily available off-the-shelf parts with a focus on being hand-soldering friendly.
Features:
Works just like the original, but better protected against ESD damage.
OPTIONAL LEDs!

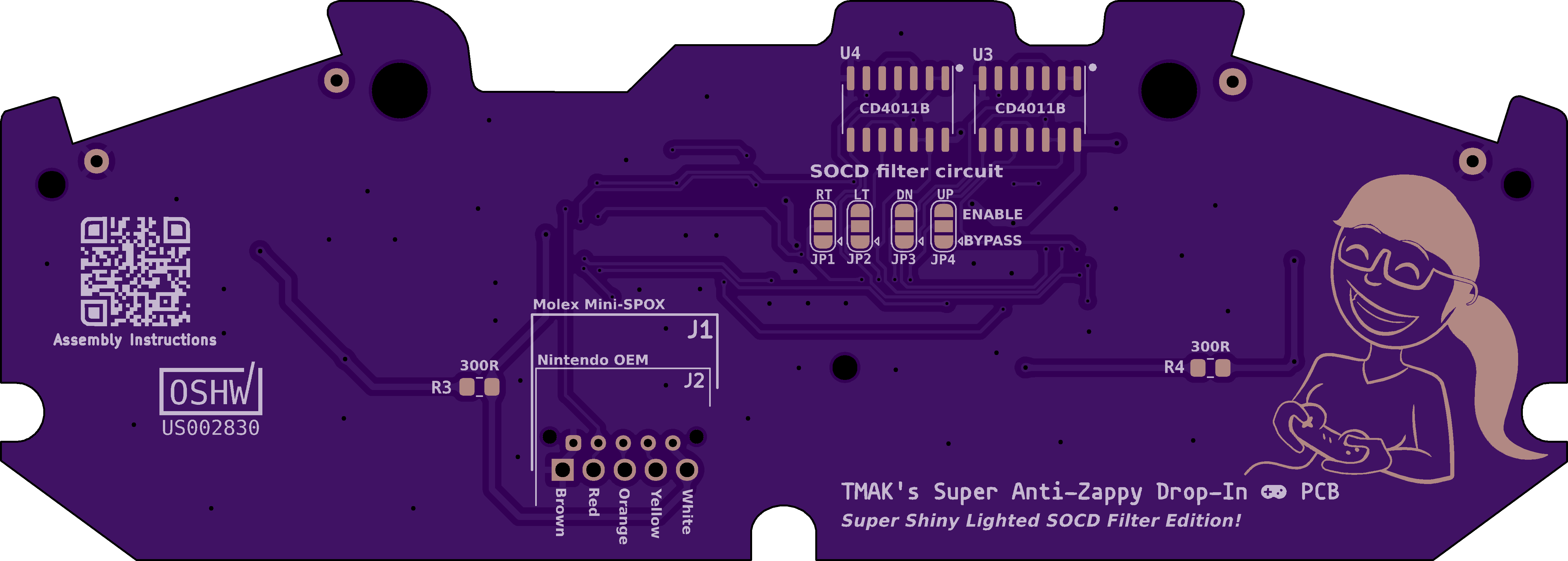

OPTIONAL SOCD filter circuit for D-pad input.
Assembly instructions, BoM, and other documentation can be found on the main project site or in the public Codeberg repo.
This is a replacement PCB for SNES controllers using readily available off-the-shelf parts with a focus on being hand-soldering friendly.
Features:
Works just like the original, but better protected against ESD damage.
OPTIONAL LEDs!
OPTIONAL SOCD filter circuit for D-pad input.
Assembly instructions, BoM, and other documentation can be found on the main project site or in the public Codeberg repo.
