Raspberry Pi Breakout pHAT v2.0

author: mtrudel
Top
Bottom

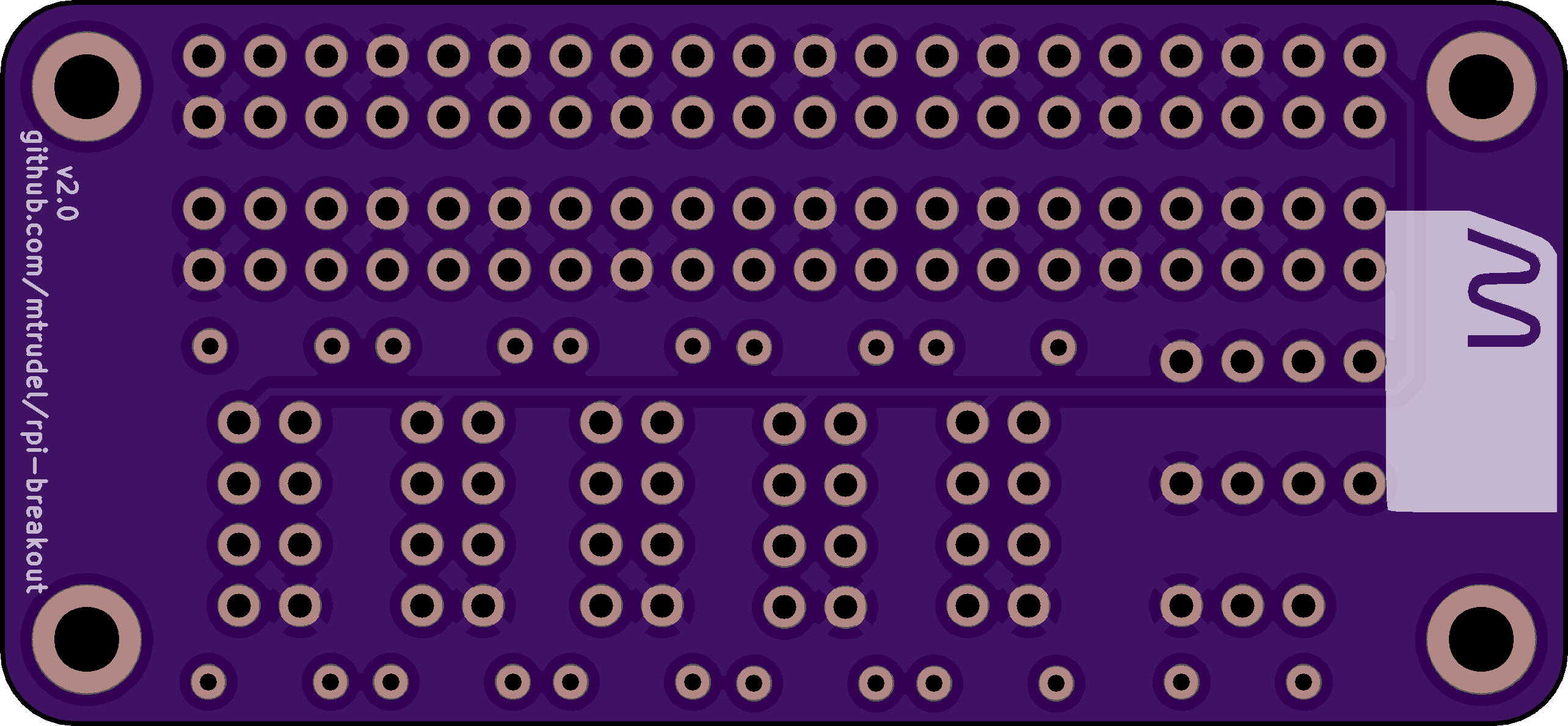

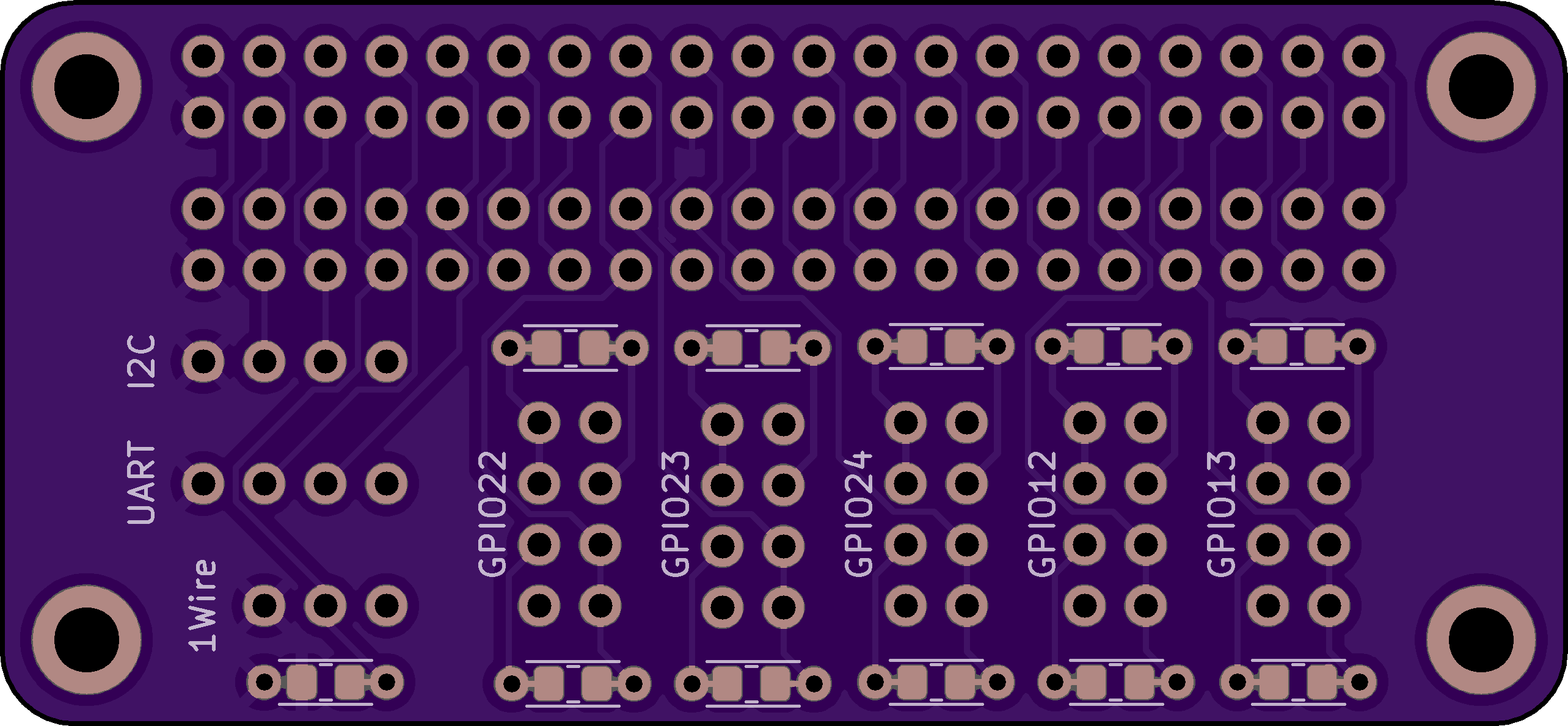

2 layer board of 2.56 x 1.18 inches (65.0 x 30.1 mm)
Uploaded: February 07, 2026
Shared: February 07, 2026
Total Price: $15.15

A simple Raspberry Pi pHAT to break out common interfaces & GPIO, with some clever allowances for input, LED driving & transistor network support on GPIO pins (see the GitHub project below for details on these allowances)

https://github.com/mtrudel/rpi-breakout

A simple Raspberry Pi pHAT to break out common interfaces & GPIO, with some clever allowances for input, LED driving & transistor network support on GPIO pins (see the GitHub project below for details on these allowances)

https://github.com/mtrudel/rpi-breakout
