DCHDMI 1.3a PCB.kicad_pcb

author: iVirtualZero

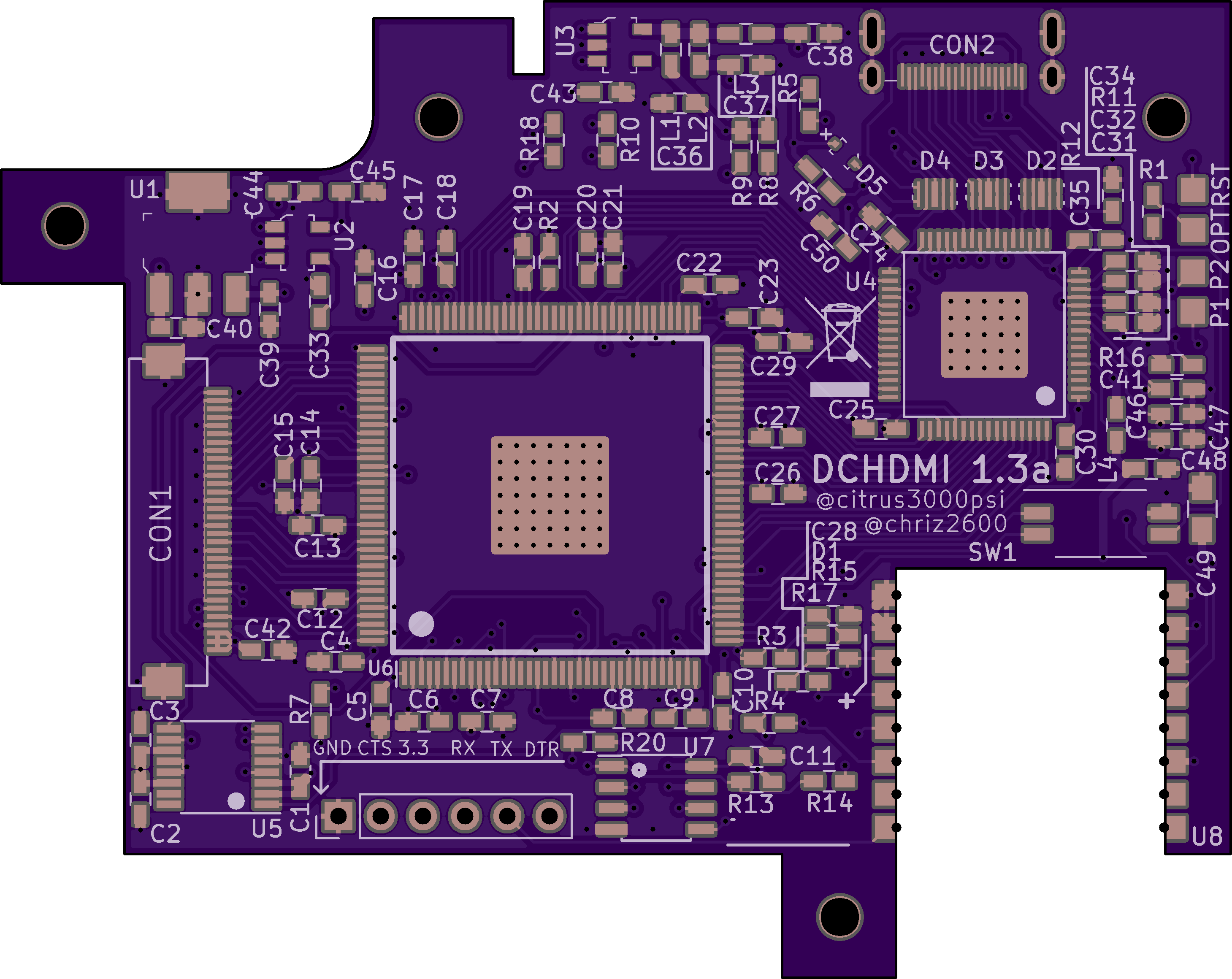

Top

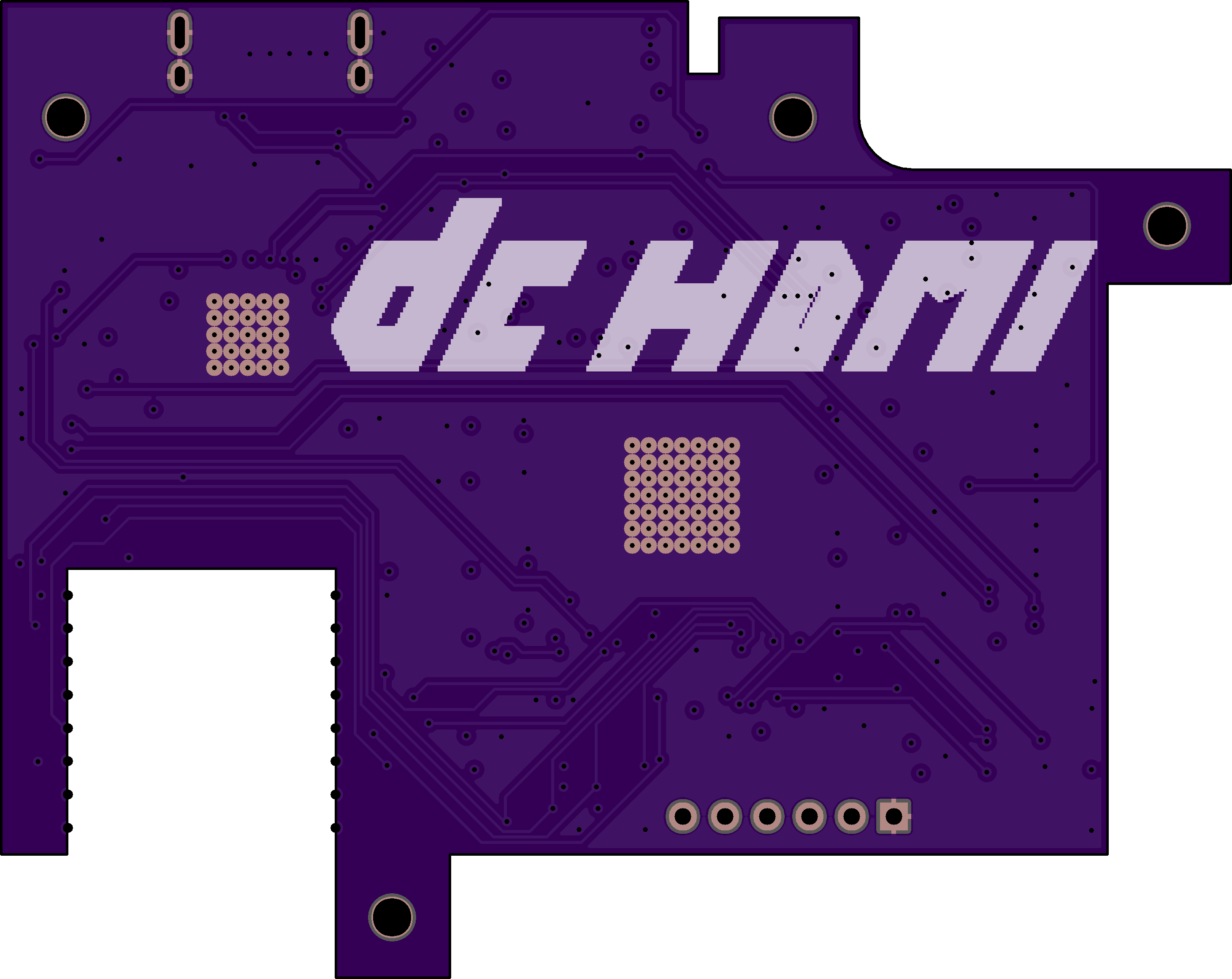

Bottom

4 layer board of 2.91 x 2.31 inches (74.0 x 58.8 mm)
Uploaded: May 28, 2025
Shared: May 28, 2025
Total Price: $67.40

PCB for building or repairing your opensource DCHDMI Mod for the Dreamcast.

Schematics with BOM can be found on Github.

All credit is due to chriz2600 and Citrus3000psi for creating this opensource mod. Be sure give them your support.

PCB for building or repairing your opensource DCHDMI Mod for the Dreamcast.

Schematics with BOM can be found on Github.

All credit is due to chriz2600 and Citrus3000psi for creating this opensource mod. Be sure give them your support.
