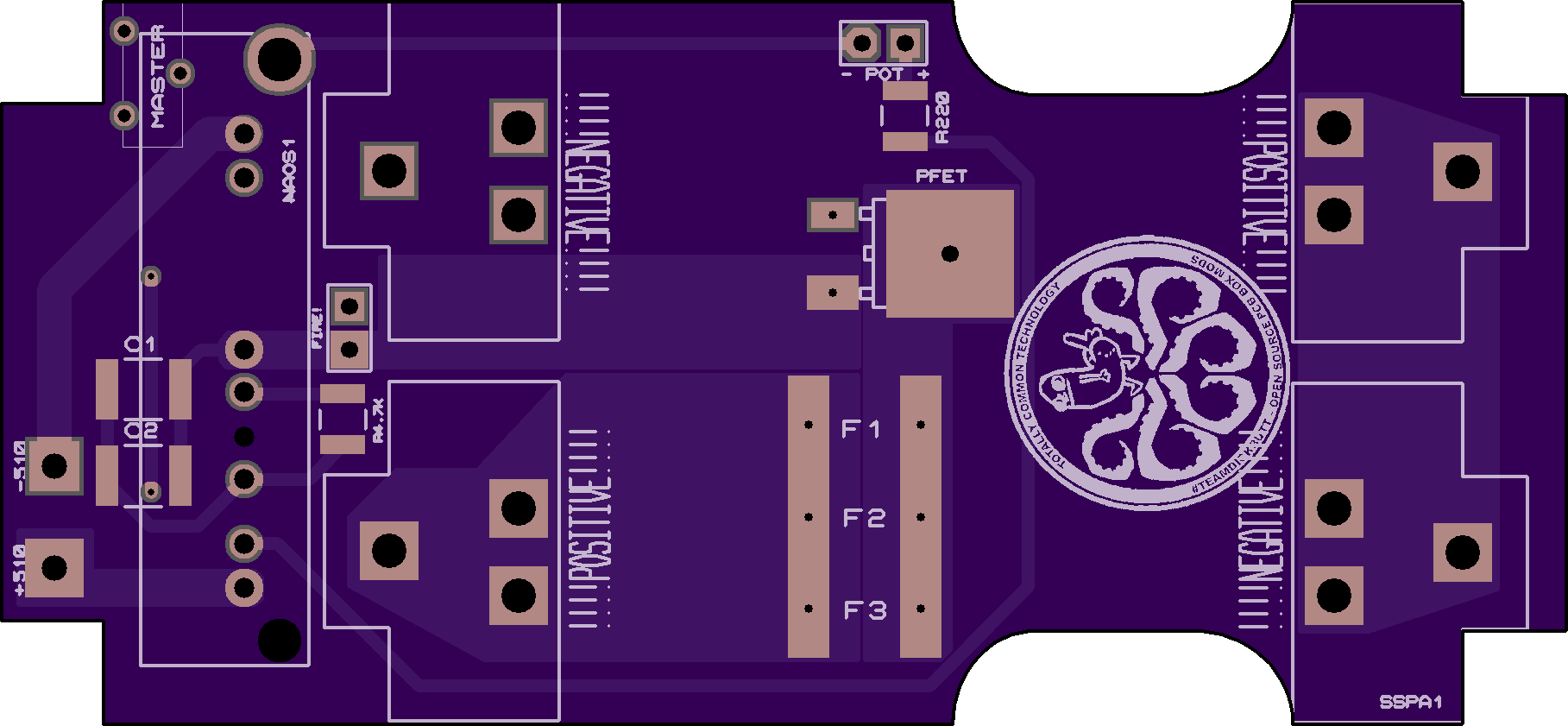

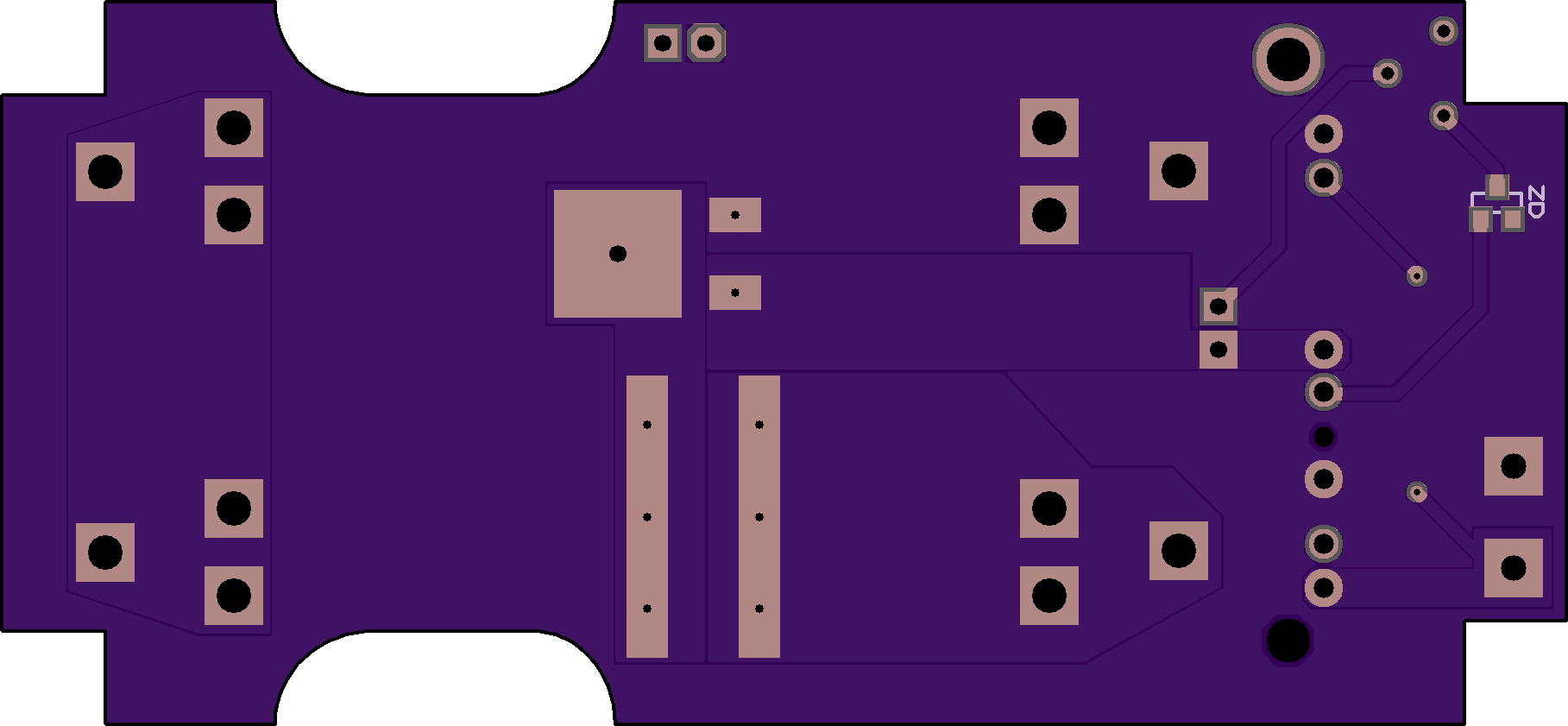

Dick Butt Mods Naos Raptor PCB Ver. 3.1
author: Pooleo
2 layer board of 3.63 x 1.68 inches (92.3 x 42.7 mm)
Uploaded:
May 01, 2015
Shared:
September 07, 2015
Total Price:
$30.55
An open source PCB for GE’s NSR020A0X43Z NAOS Raptor 20 amp fitted for a Hammond 1590g enclosure. This PCB is based on earlier working versions, but has not been tested. Tweaks have been made to correct the fuse footprints and correct any arcing issues. A different zener diode has been added to ease installation and the voltmeter inputs have been removed. Use this link to get the parts list: (http://www.digikey.com/short/7wfhpw) Thank you Facebook modding community.
