4by_switch_bank

author: km5ht

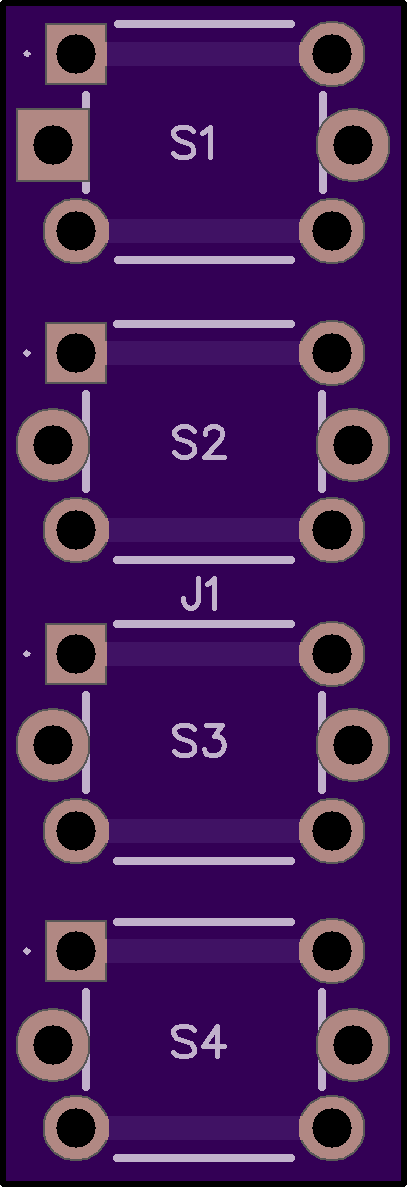

Top

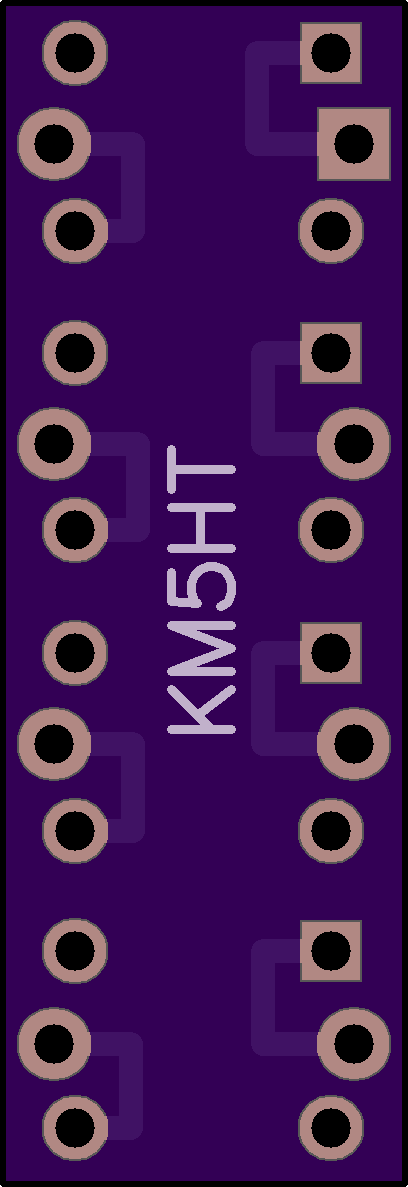

Bottom

2 layer board of 0.40 x 1.18 inches (10.2 x 30.0 mm)
Uploaded: November 03, 2025
Shared: November 20, 2025
Total Price: $2.35

This is a breakout board for 4 - 6mm x 6 mm pushbutton switches. It fits a standard prototype bluggin board. I am using square header pins out the bottom to plug into the proto board and mounting the switches on top. Mount the switches first, bending over the tabs and solder. Pull extra pins from the male header and solder from the top of the board.

This is a breakout board for 4 - 6mm x 6 mm pushbutton switches. It fits a standard prototype bluggin board. I am using square header pins out the bottom to plug into the proto board and mounting the switches on top. Mount the switches first, bending over the tabs and solder. Pull extra pins from the male header and solder from the top of the board.

Top
Bottom
