Teensy 4.1 Ethernet (old version)

author: PaulStoffregen
Top
Bottom

2 layer board of 1.08 x 0.75 inches (27.4 x 19.1 mm)
Uploaded: January 08, 2020
Shared: April 29, 2020
Total Price: $4.00

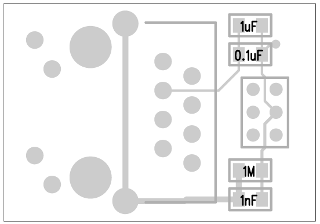

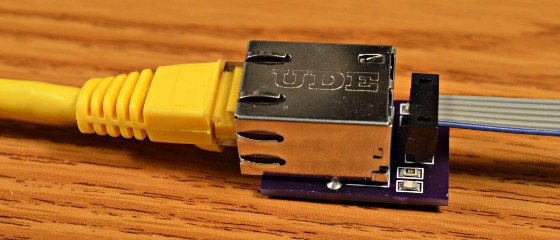

For using Teensy 4.1’s Ethernet

1   Ethernet Magjack            RB1-125BAG1A, Mouser 950-RB1-125BAG1A, Digikey 1278-1011-ND
2   Header, 3x2, 2mm pitch      Digikey 1849-1000-ND
2   Socket, 3x2, 2mm pitch      Amphenol FCI 89361-706LF, Digikey 609-3139-ND
1   Ribbon Cable, 3 to 6 inch   Digikey HF06S-5-ND
1   Capacitor, 0.1uF, 805
1   Capacitor, 1uF, 805         probably not needed
1   Capacitor, 1nF, 805         optional, should be high voltage rated if used
1   Resistor, 1M                optional

For using Teensy 4.1’s Ethernet

1   Ethernet Magjack            RB1-125BAG1A, Mouser 950-RB1-125BAG1A, Digikey 1278-1011-ND
2   Header, 3x2, 2mm pitch      Digikey 1849-1000-ND
2   Socket, 3x2, 2mm pitch      Amphenol FCI 89361-706LF, Digikey 609-3139-ND
1   Ribbon Cable, 3 to 6 inch   Digikey HF06S-5-ND
1   Capacitor, 0.1uF, 805
1   Capacitor, 1uF, 805         probably not needed
1   Capacitor, 1nF, 805         optional, should be high voltage rated if used
1   Resistor, 1M                optional
