Dumb tool board for Jubilee Baby Bullet.

Not Tested, should work with Baby Bullet + Orbiter 1.5 + E3D V6 Groovemount or Threaded Heatsink, Revo Micro should use v0_4 as fan connector is different

Uses Molex Micro-Fit 3.0:

• 1x 430451200 12p right angle for input from controller
• 1x 430251200 12p Housings to plug into this board
• 12x 430300007 Crimps for above housing, order extra just incase
• 2x 436500200 2p right angle for Temp and Fan
• 1x 436500227 2p straight for Heater

Molex KK or compatible 2.5mm, also need matching housing and crimps:

• 1x 4pin right angle for stepper
• 2x 2pin right angle for PFan and PFan2 (2 Part Fans)

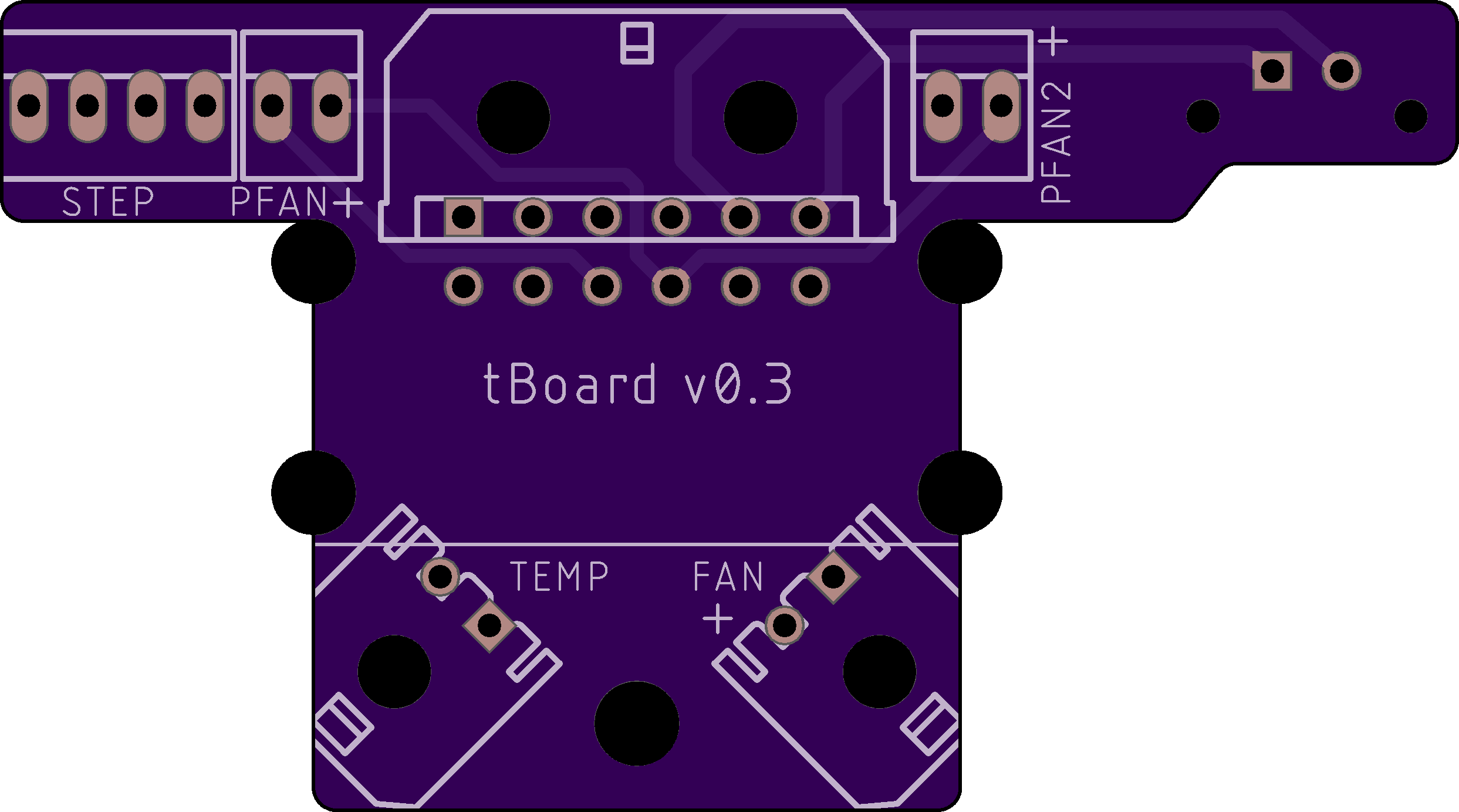

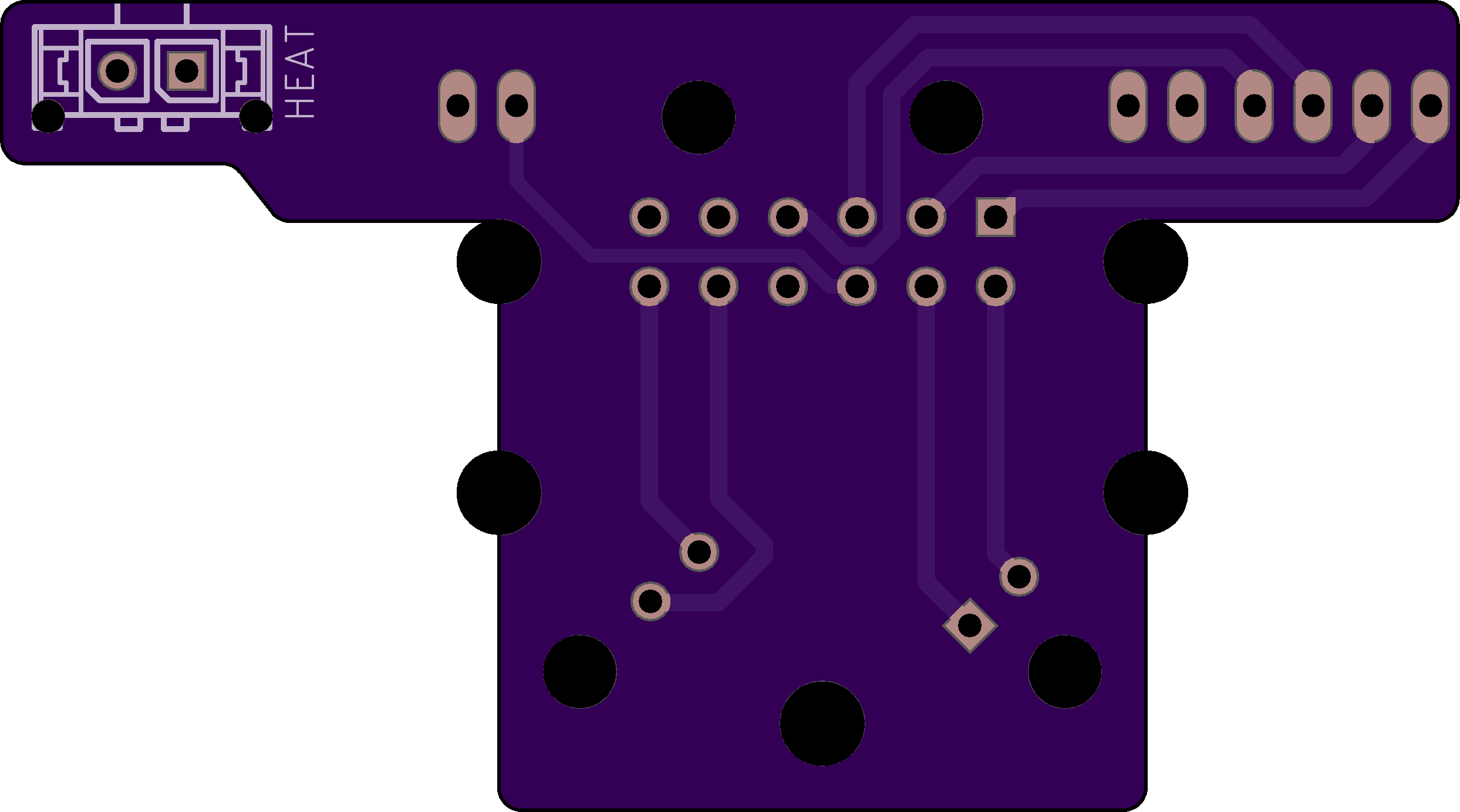

v_0_3

• Made lower section narrower for threaded heatsinks version

12 pin layout Microfit 3.0 43025-1200

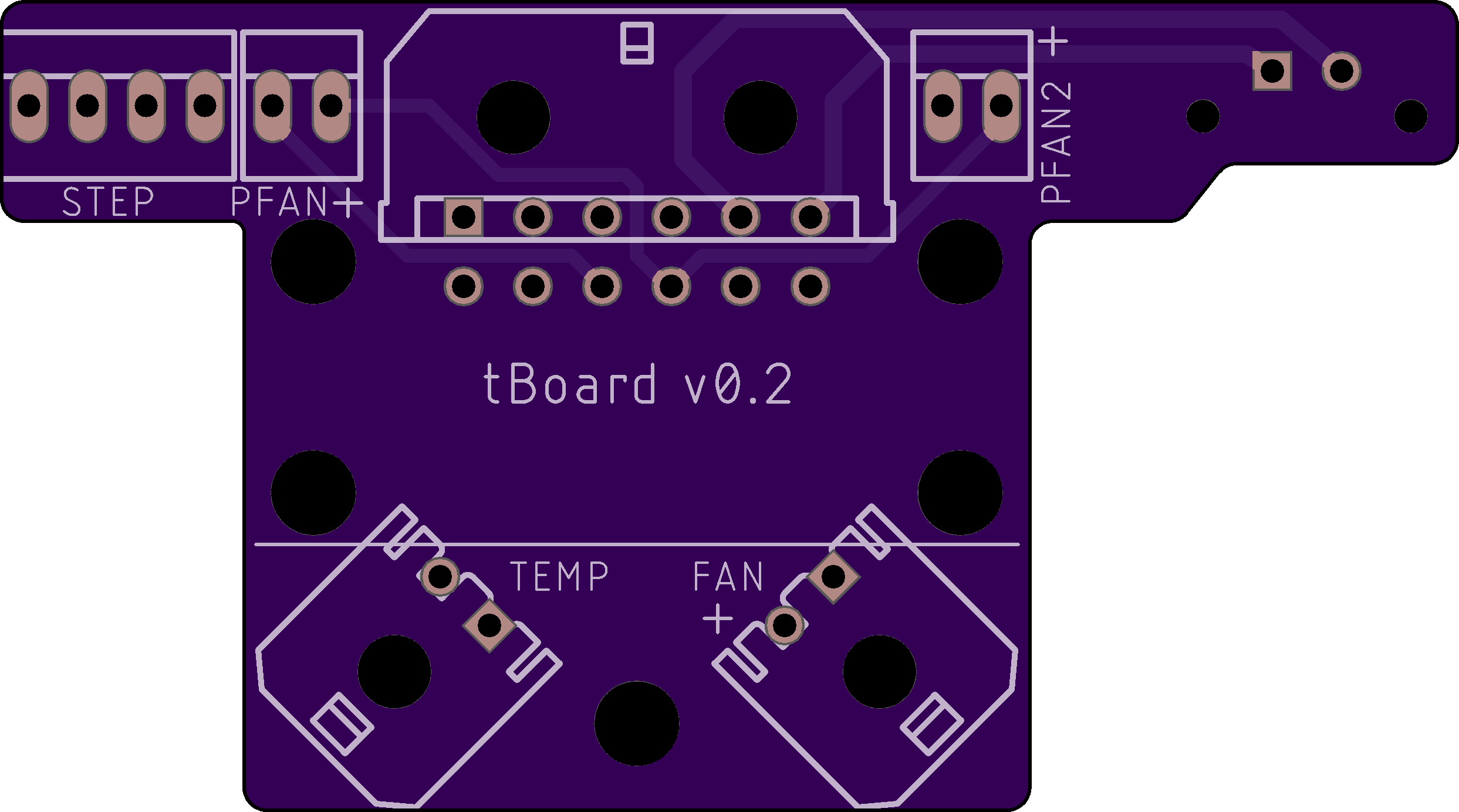

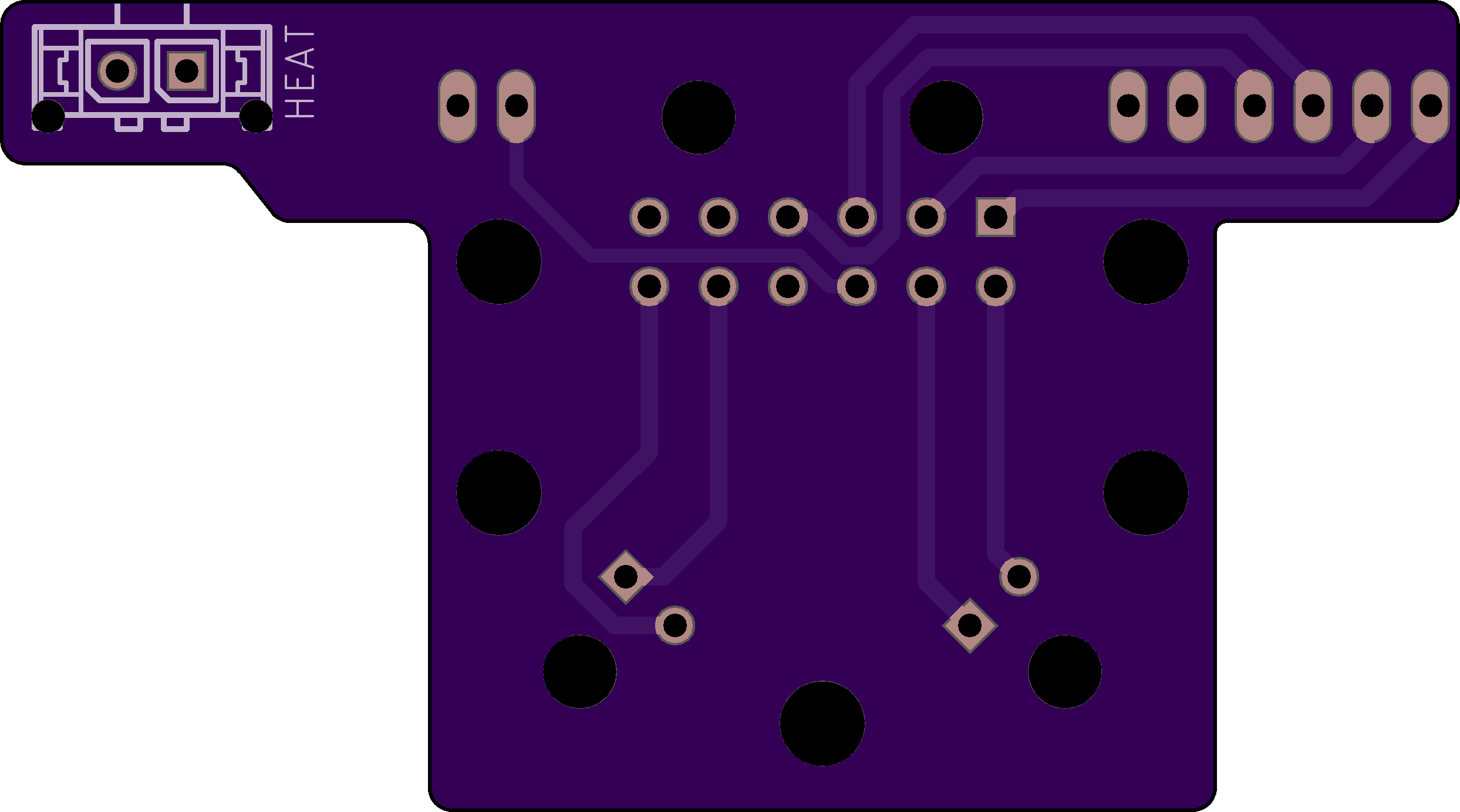

Dumb tool board for Jubilee Baby Bullet.

Tested with Baby Bullet + Orbiter 1.5 + E3D V6 Groovemount Heatsink

Uses Molex Micro-Fit 3.0:

• 1x 430451200 12p right angle for input from controller
• 1x 430251200 12p Housings to plug into this board
• 12x 430300007 Crimps for above housing, order extra just incase
• 2x 436500200 2p right angle for Temp and Fan
• 1x 436500227 2p straight for Heater

Molex KK or compatible 2.5mm, also need matching housing and crimps:

• 1x 4pin right angle for stepper
• 2x 2pin right angle for PFan and PFan2 (2 Part Fans)

12 pin layout Microfit 3.0 43025-1200

Dumb tool board for Jubilee Baby Bullet, Revo Micro.

Tested with Baby Bullet + Orbiter 1.5 + Revo using files for E3D Threaded Heatsink, before there was a version created specifically for Revo Micro.

Uses Molex Micro-Fit 3.0:

• 1x 430451200 12p right angle for input from controller, also need matching housing and crimps:
• 1x 430251200 12p Housings to plug into this board
• 12x 430300007 Crimps for above housing, order extra just incase
• 1x 436500200 2p right angle for Temp
• 1x 430450200 2p right angle for Fan
• 1x 436500227 2p straight for Heater

Molex KK or compatible 2.5mm, also need matching housing and crimps:

• 1x 4pin right angle for stepper
• 2x 2pin right angle for PFan and PFan2 (2 Part Fans)

v_0_3

• Made lower section narrower for threaded heatsinks version

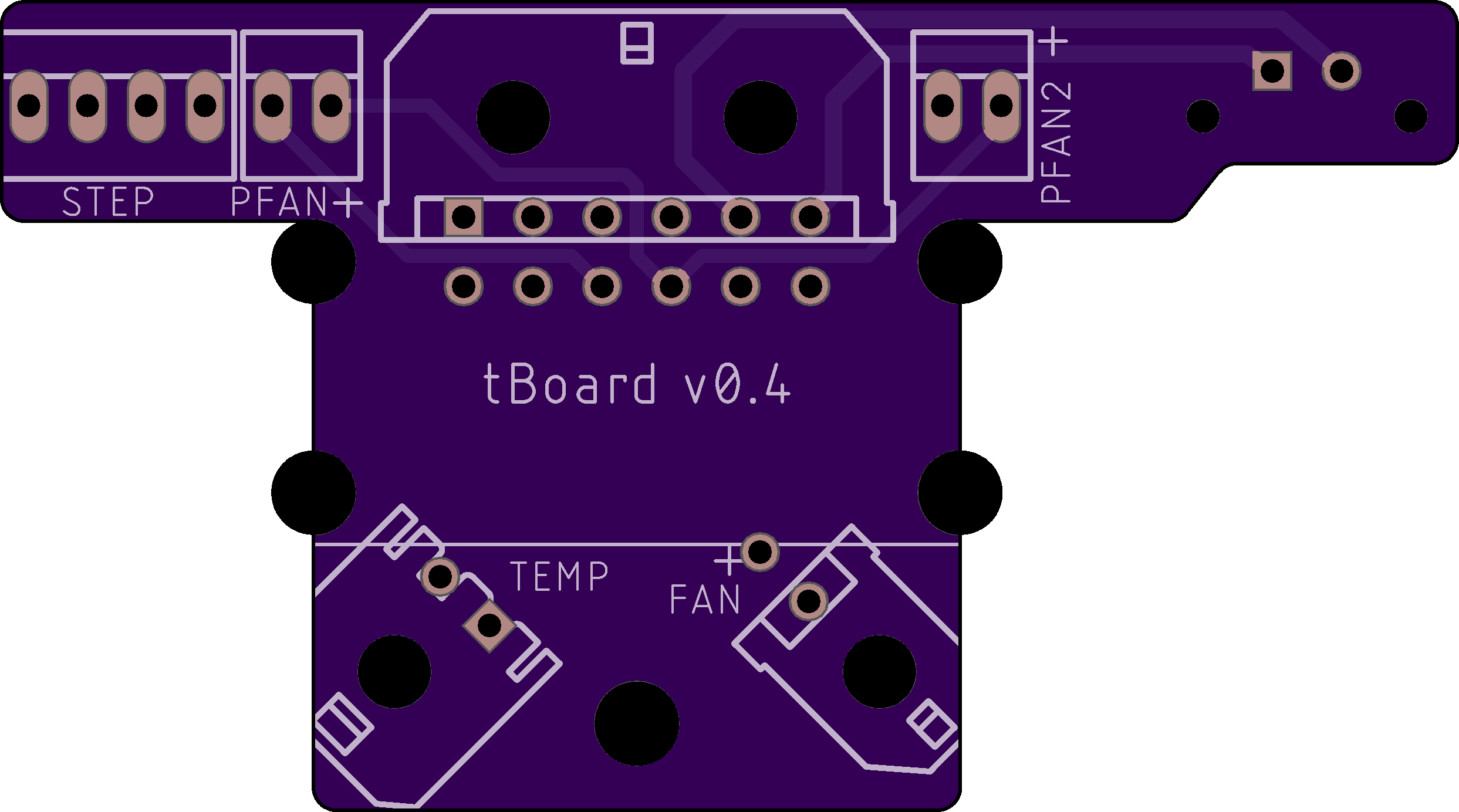

  v_0_4

• Fan switched to 430450200, for Revo micro, use v_0_3, or v_0_2 for v6

12 pin layout Microfit 3.0 43025-1200

Board for 3 tact switches and 6 LEDs for back lighting.

Switches are wired between ground “-”, and the “1-3"pins. Config should be set to enable pull up resistors, and inverted.

RRF3.01 Example: `````‘M950 J0 C"!^duex.e6stop"’

LEDs are connected between “-” “+"pins, 2 LEDs in parallel than a single resistor in series with them.

“+” pin is only used for the LEDs

Switches are on 15mm spacing.

BOM

• 3x Tact Switch 6x6mm 5mm Through Hole SPST-NO
• 6x 1206(3216) SMD LEDs
• 3x 805 SMD Resistors I used 100 ohm, which is safe for 5V and the possibility if one LED in the pair was mis-soldered, it won’t burn up the other.
• Connector 2.54mm 5 Pins Right Angle and corresponding plug and wire pigtails
