SOIC8 to DIP8 V3 Gerbers 2025-04-07
author: theepicureanshoppe
2 layer board of 0.42 x 0.42 inches (10.7 x 10.7 mm)
Uploaded:
April 10, 2025
Shared:
February 07, 2026
Total Price:
$0.85

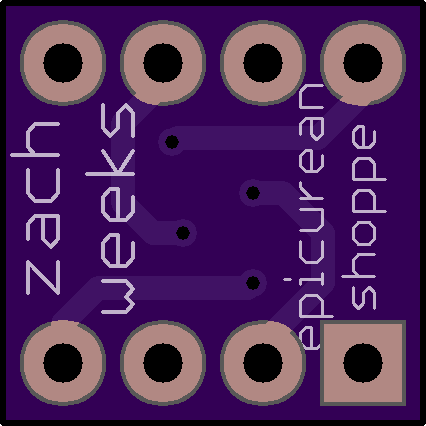

use these to solder a SOIC-8 SMD package IC to DIP-8 pinout. Use 2x 2.54mm 4-position pin headers on each side of the PCB such as Amphenol G800W304018EU (https://mou.sr/3BHwqux) or Adam Tech PH1-04-UA (https://mou.sr/3IQ25uh).
If you plan on using this board with machined sockets, I’d suggest using “machined” round / circular pin headers instead of the standard “box” ones listed above. Here’s a seller with some nice ones for cheap: https://protosupplies.com/product/header-machined-round-pin-male-1x40/
NOT FOR RESALE / OPEN SOURCE / NOT FOR COMMERCIAL PURPOSES.
