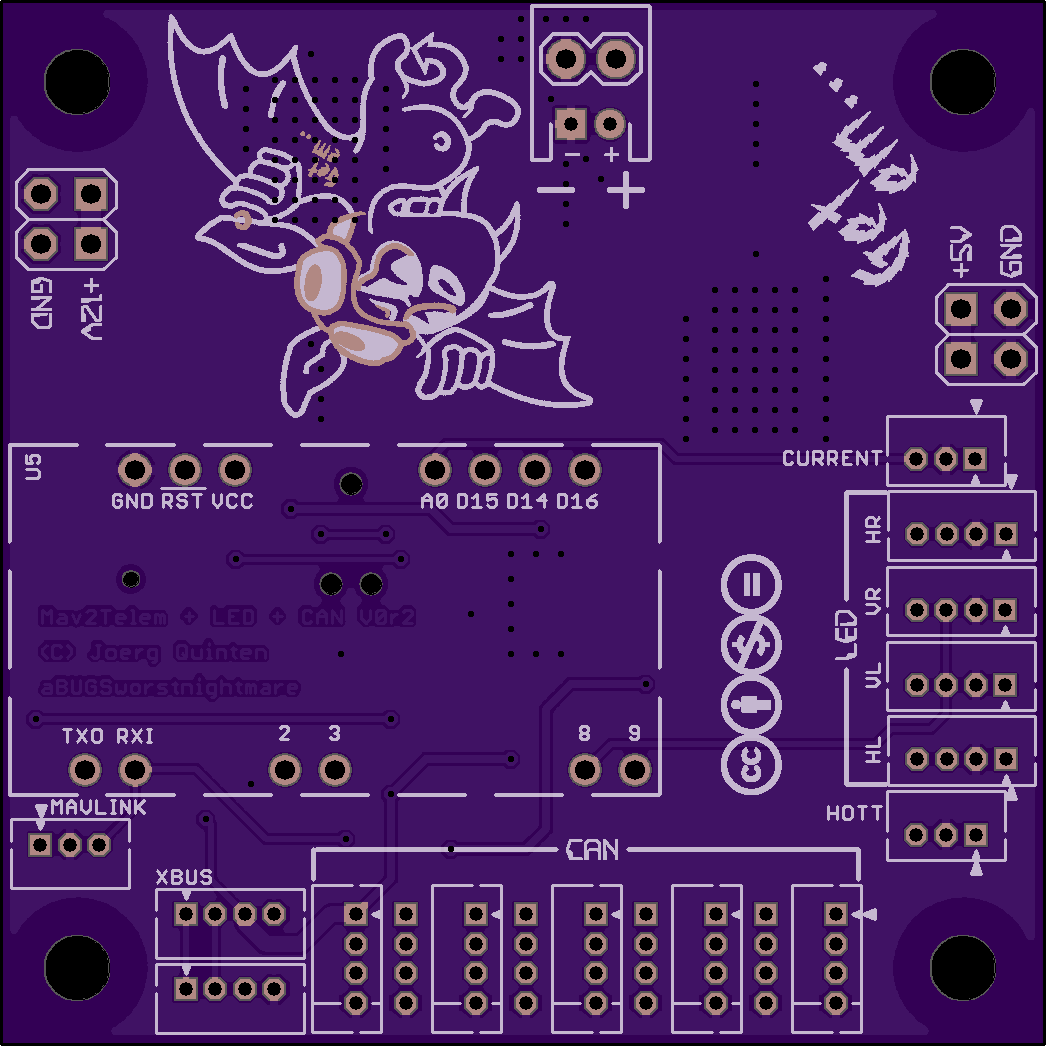

Mav2Telem 0r2 / LED / CAN PCB
support board for use with AutoQuad 6 Flight Controller or for stand-alone use.
Features:
- 5V/3A DC/DC, Vin = 42V max.
- 12V/1A DC/DC, Vin = 42V max.
- 3.3V/0.5A DC/DC
- up to 8 powered CAN slots, 4 on TOP and 4 on BOT each (needs to be mounted sequentially when you intend to use more than 4 slots)
- 4 IntelliLED WS2812B ports
- MavLink input (from AQ6)
- Spektrum X-Bus interface for connecting to TM1000 and/or other sensors
- HOTT telemetry output
- Current sensor input (for use with breakout board designed by joebar; refer to http://oshpark.com/shared_projects/NL4NSScO for details)
- Arduino ProMicro socket for ‚Mav2Telem‘ (AVR ISP interface provided in case the boot loader needs to be swapped/updated)

For details on the ‚Mav2Telem‘ Software refer to http://forum.autoquad.org/viewtopic.php?f=33&t=3069 and http://forum.autoquad.org/viewtopic.php?f=33&t=2850.

BOM and Schematic were available here: http://forum.autoquad.org/viewtopic.php?f=38&t=2920&start=80#p21050

Released under creative commons Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0)
