LNW80 Doubler 3-5-8 improved replica

author: jlanier67

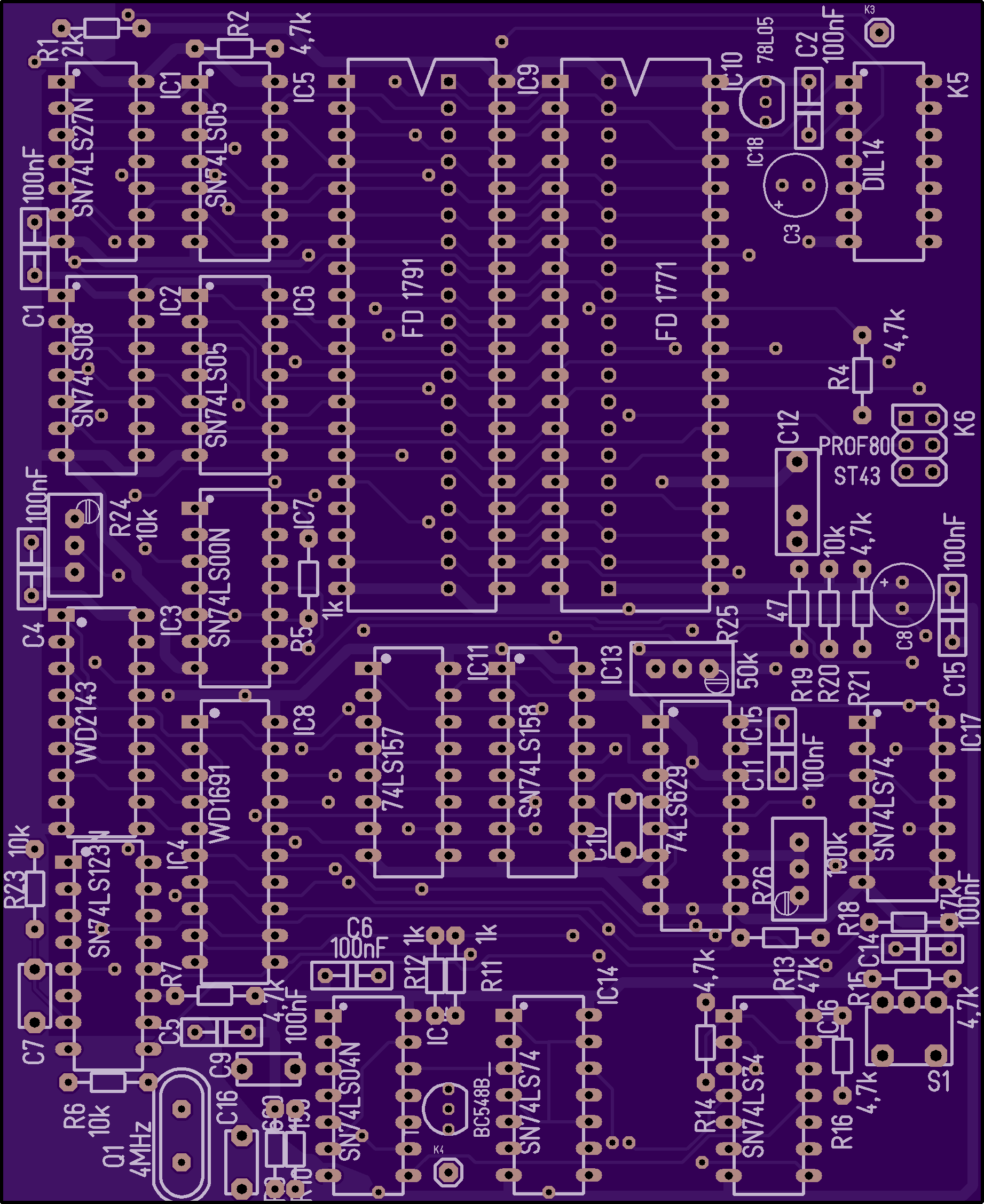

Top
Bottom

2 layer board of 3.69 x 4.51 inches (93.6 x 114.6 mm)
Uploaded: September 15, 2013
Shared: October 27, 2013
Total Price: $83.15

An improved replica of the LNW80 doubler for the LNW80 and TRS-80 Model I, designed by Pascal Holdry. Design is copyright 2011 by Pascal Holdry, free for personal use. Please see http://home.online.no/~kr-lund/DoubleurLNW80_3-5-8.zip for more information.

An improved replica of the LNW80 doubler for the LNW80 and TRS-80 Model I, designed by Pascal Holdry. Design is copyright 2011 by Pascal Holdry, free for personal use. Please see http://home.online.no/~kr-lund/DoubleurLNW80_3-5-8.zip for more information.

Top
Bottom
