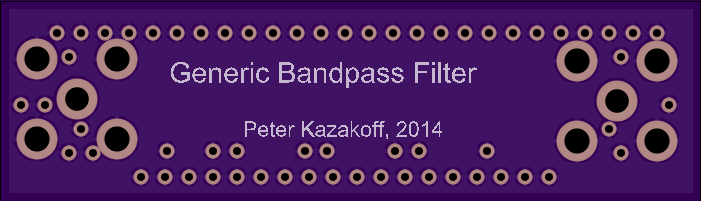

Generic Bandpass Filter
2 layer board of 1.75 x 0.50 inches (44.5 x 12.8 mm)
Uploaded:
September 26, 2014
Shared:
September 26, 2014
Total Price:
$4.40

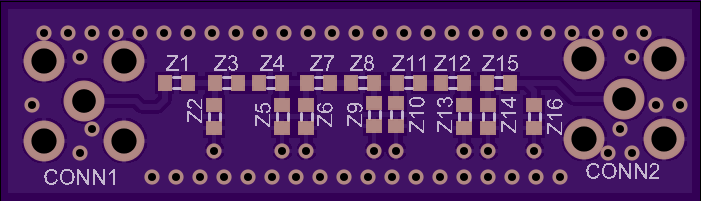

An inline RF bandpass filter (unbalanced). Solder through-hole SMA connectors (example: DigiKey P/N A97594-ND) to the ends and then populate your own LC ladder network on the 0603 pads.
Traces have 50 ohm characteristic impedance based on OSHPark 2-layer stackup, planes have been via stitched for better RF performance.
You may want to mount the board inside a small metal box for shielding.
A good resource for calculating the LC values is: http://www-users.cs.york.ac.uk/~fisher/lcfilter/
