100V-30A
author: aaaaaaaaaa

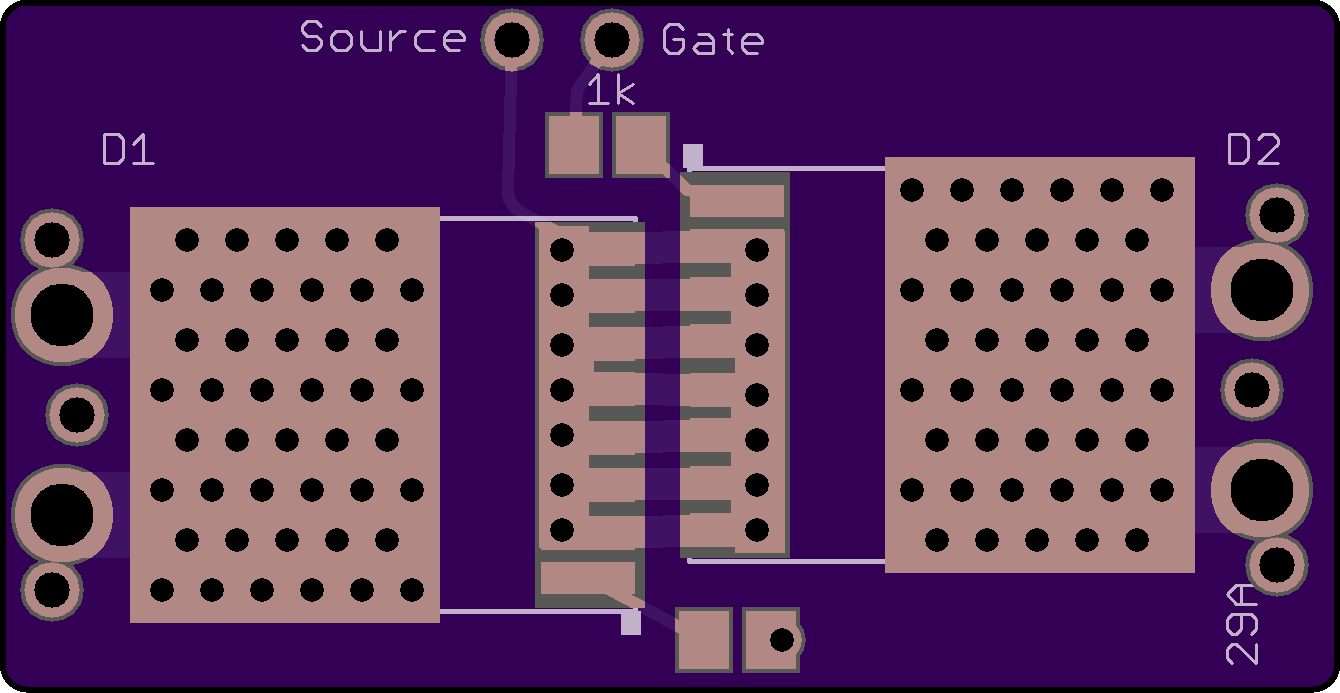

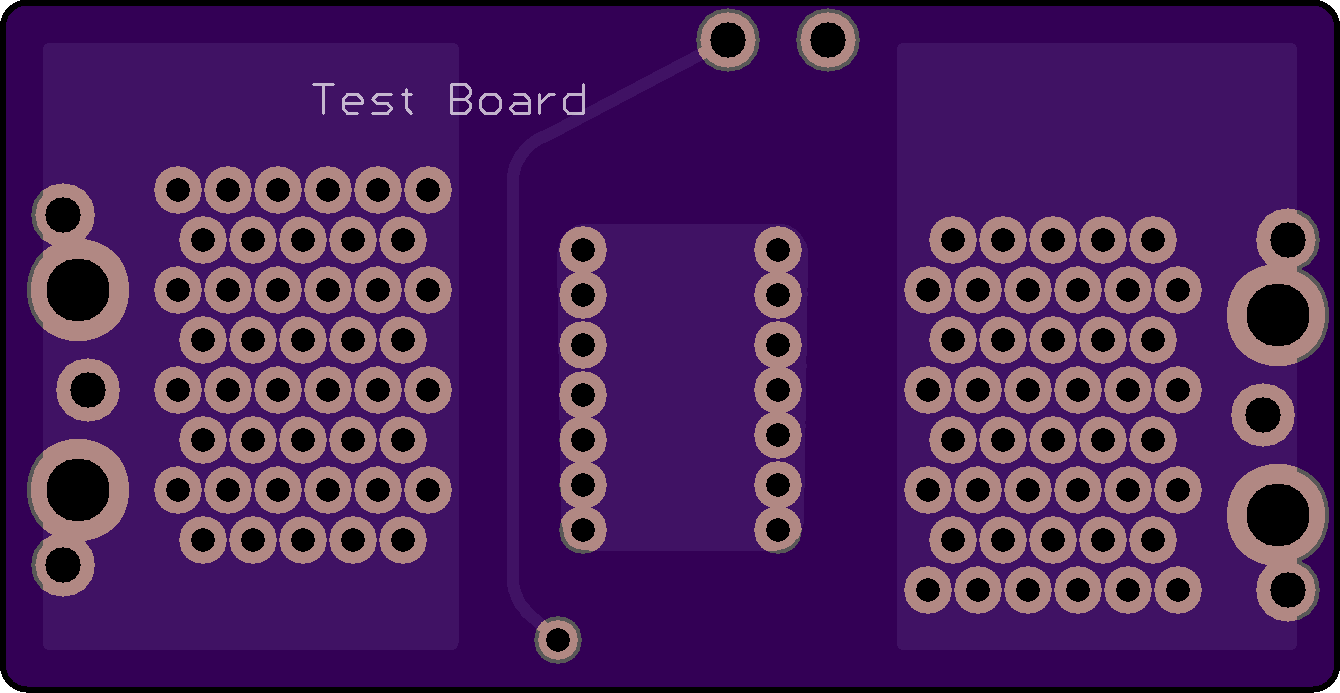

2 layer board of 1.33 x 0.69 inches (33.9 x 17.5 mm)
Uploaded:
May 05, 2026
Shared:
May 05, 2026
Total Price:
$4.55
100V 30A. For Testing heating of MOSFETS and how well heatsinks work during 30A draw through two GT010N10TL N Chan 100V MOSFETS in reverse series. Using about 1k gate resistors to reduce ringing and prevent shut off spike.
