BGA Test v0.1
author: Max
2 layer board of 1.97 x 1.97 inches (50.0 x 50.0 mm)
Uploaded:
July 26, 2014
Shared:
November 24, 2014
Total Price:
$19.35

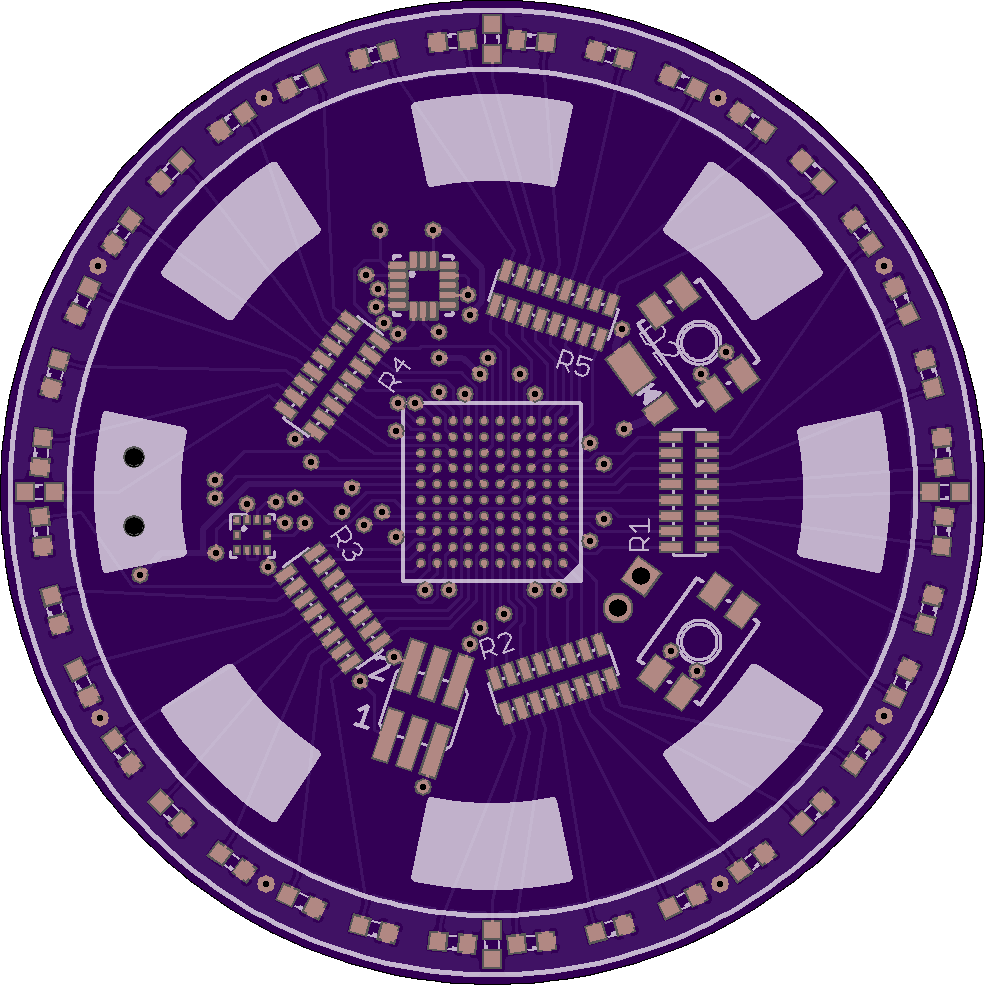

Round(!) 2-layer PCB with lots of LEDs I did this board to test if it was possible to mount a micro controller with BGA footprint on a 2-layer PCB at home, and it worked :-) There are 36 blue LEDs and 4 red LEDs that are individually controlled from GPIO on the AVR micro controller. There is also a 3D accelerometer and 3D compass on the board, so it can be used as a electronic compass with tilt compensation. Please contact me if you are interested in the design: [email protected]
