Sony P-3A S-Video Shield Coupler v1.1
author: KPackLabs

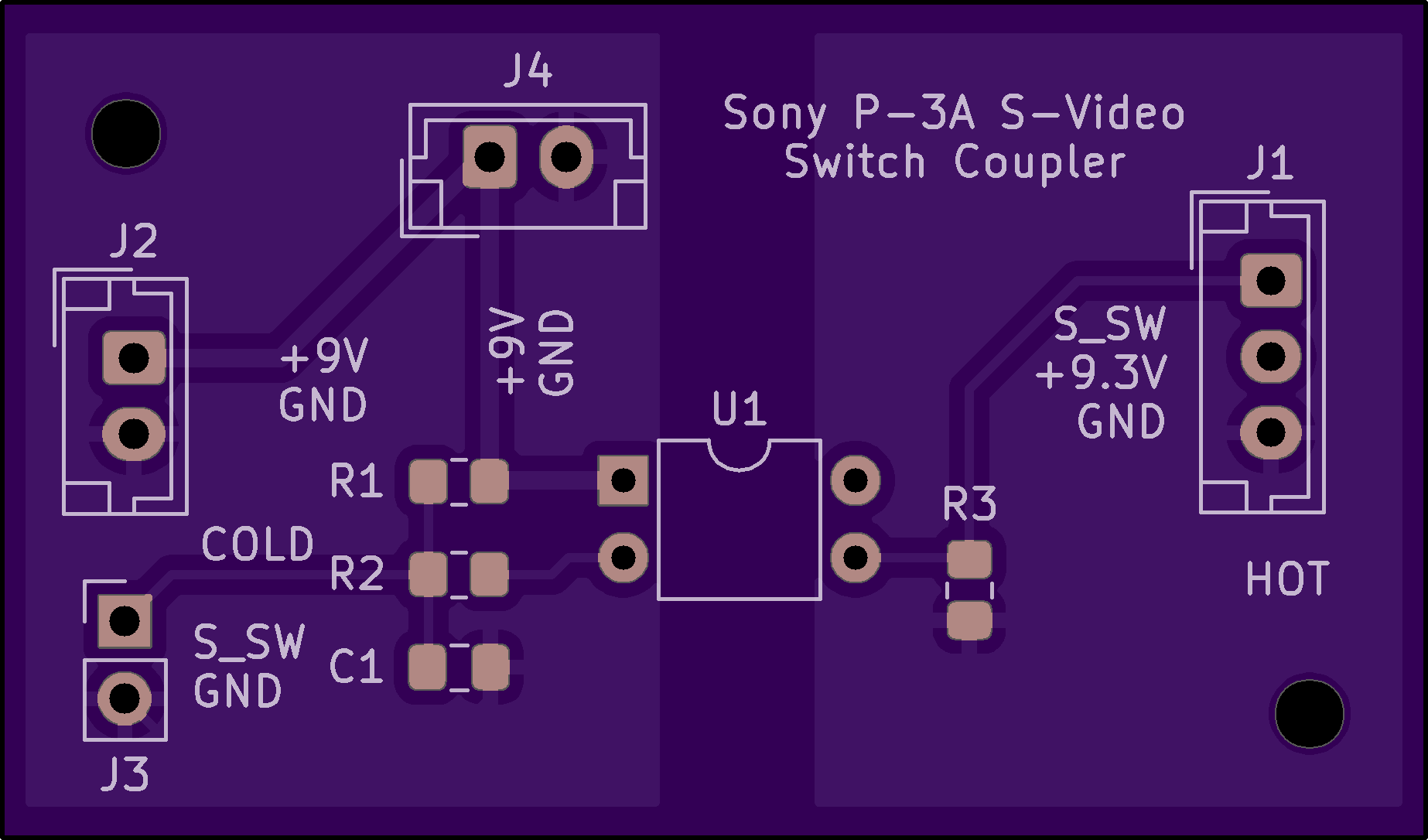

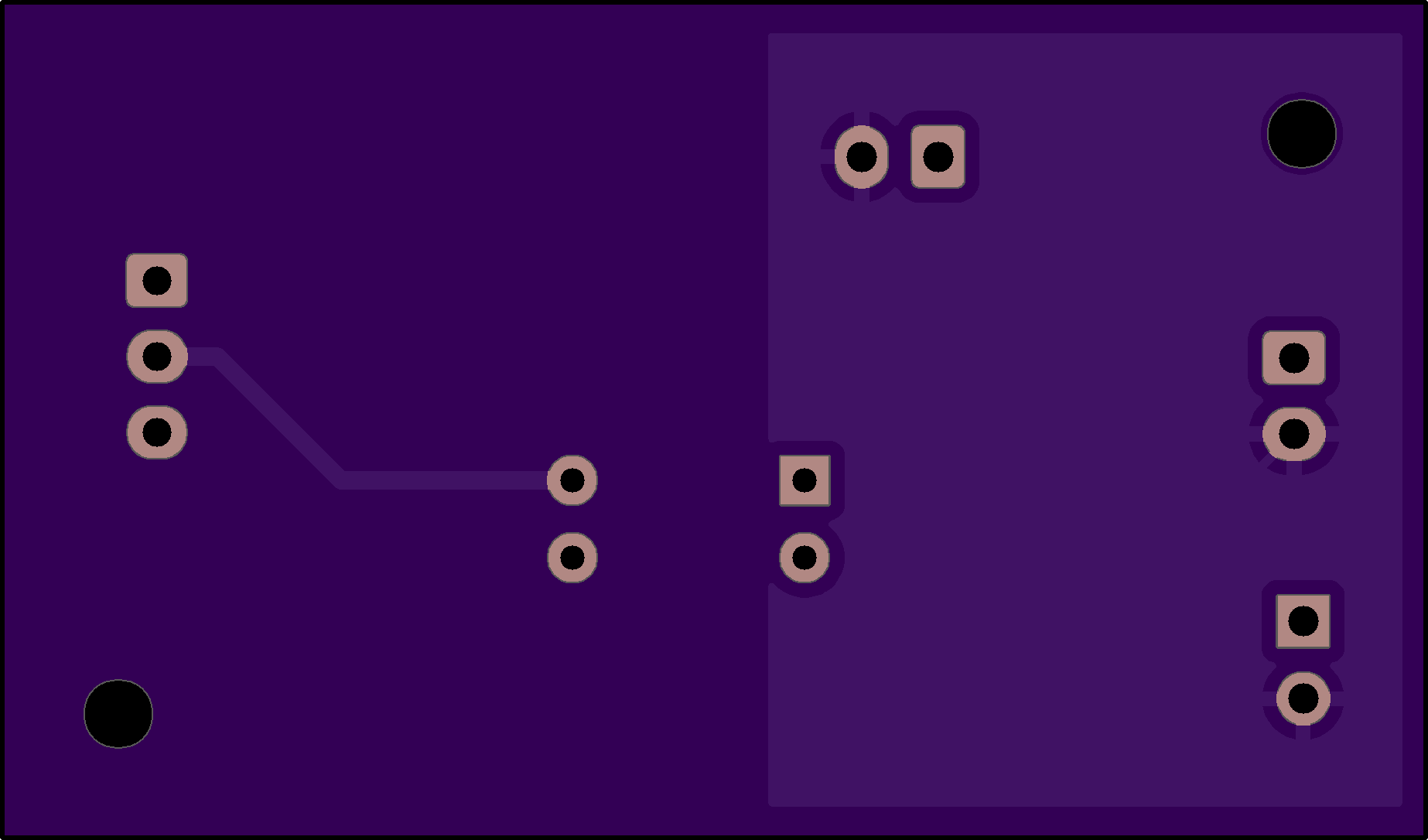

2 layer board of 1.84 x 1.08 inches (46.7 x 27.4 mm)
Uploaded:
July 23, 2025
Shared:
May 03, 2026
Total Price:
$9.90
Optocoupler PCB for use with either an SPST switch or a switching S-Video jack in conjunction with the CD4053 switch PCB for S-Video modding a Sony P-3A chassis CRT TV.
Bill of Materials:
- C1: 0.01uF 50V 0805 SMD Ceramic Capacitor
- J1: 3-pin 2.50mm pitch JST Connector
- J2 and J4: 2-pin 2.50mm pitch JST Connectors
- J3: 2-pin 2.54mm pitch DuPont Header
- R1: 10K ohm 1/4W 0805 SMD Resistor
- R2: 1.5K ohm 1/4W 0805 SMD Resistor
- R3: 100K ohm 1/4W 0805 SMD Resistor
- U1: PC817 4-DIP Package Optocoupler IC
