SMA oscilloscope probe

author: Ted-Dunning

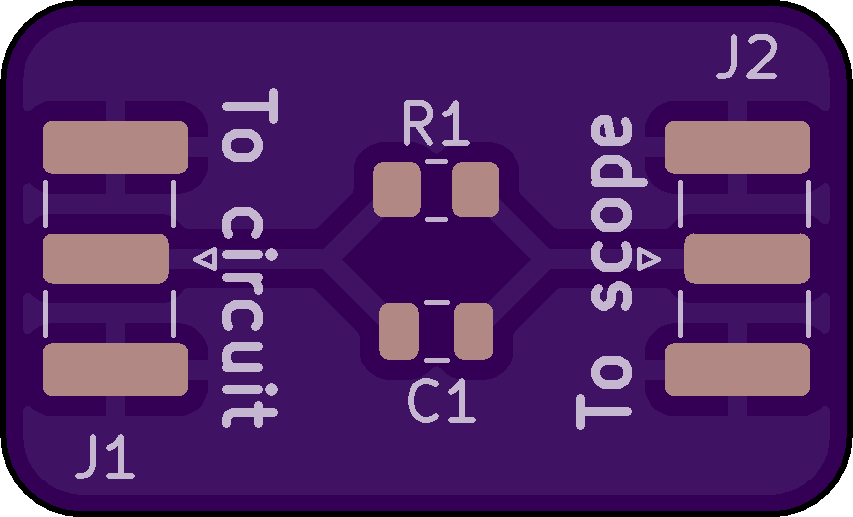

Top

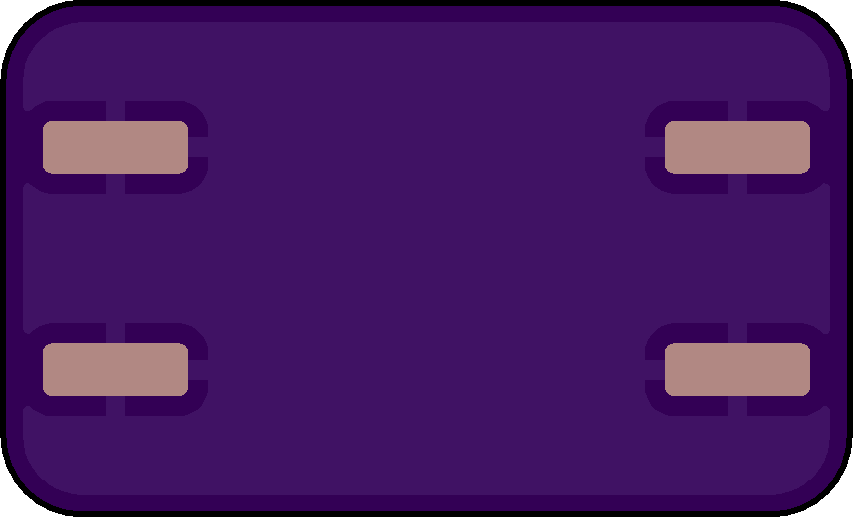

Bottom

2 layer board of 0.85 x 0.51 inches (21.5 x 13.0 mm)
Uploaded: December 21, 2025
Shared: December 21, 2025
Total Price: $2.15

This circuit is designed to be mounted close to the circuit under test and serves much as the similar circuit that is in most 10x probes. Together with the SMA oscilloscope terminator, you can have a low cost 10x probe that is terminated with SMA connectors.

See the github repo for more info

This circuit is designed to be mounted close to the circuit under test and serves much as the similar circuit that is in most 10x probes. Together with the SMA oscilloscope terminator, you can have a low cost 10x probe that is terminated with SMA connectors.

See the github repo for more info
