Sleeping Beauty Bare Bone V3 - 1284P

author: Firebirduino
Top
Bottom

2 layer board of 2.73 x 2.11 inches (69.2 x 53.6 mm)
Uploaded: July 14, 2014
Shared: July 14, 2014
Total Price: $28.75

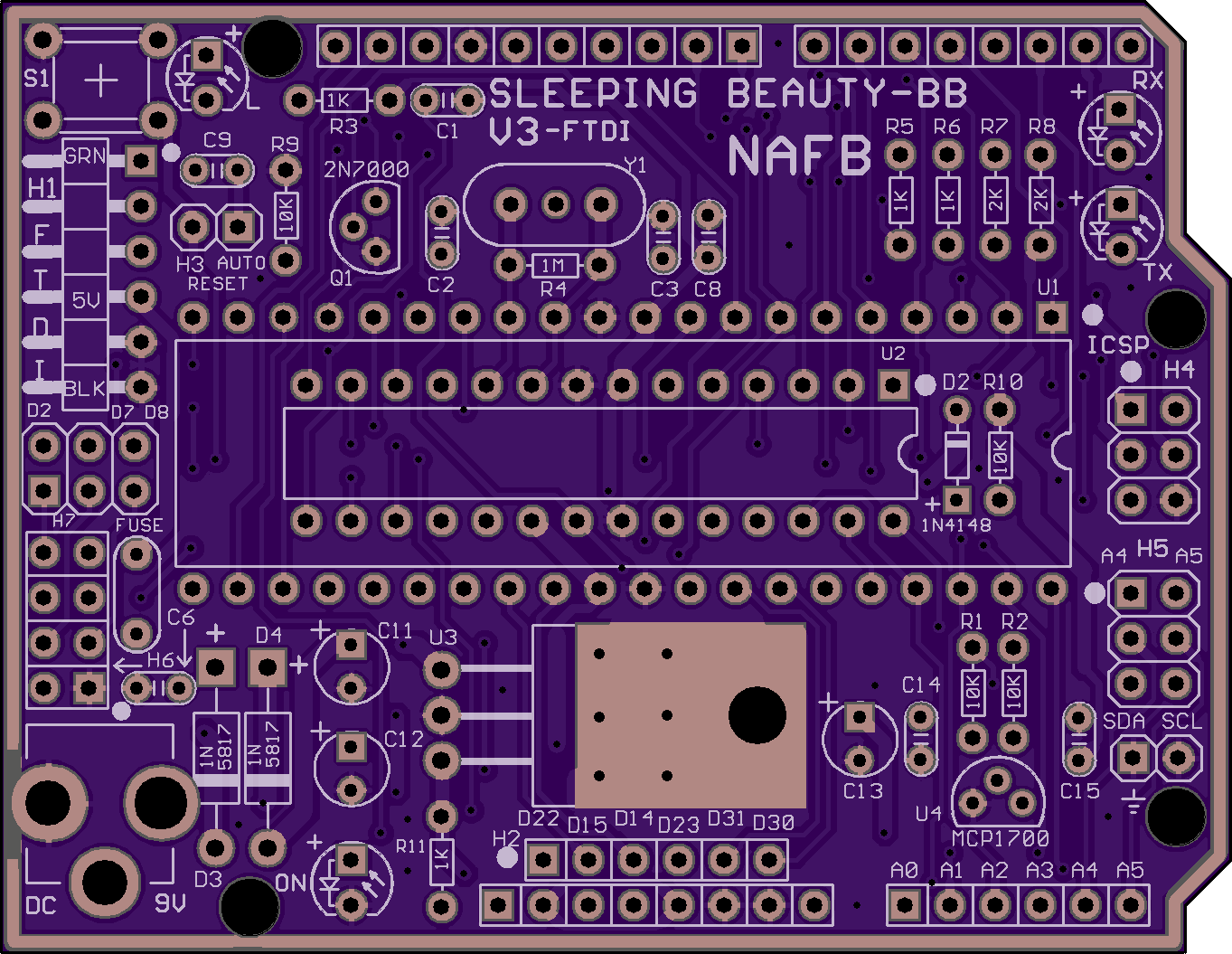

Atmega 1284P / 328P through hole board with nRF24L01+ in UNO size

Made with all through hole components, built-in interface header for nRF24L01+ module. Rconfigurable /CE, /CSN and /INT. signals for different digital pins. Works for the Atmega1284P or the Atmega328P.

See details at: http://www.firebirduino.com/sleeping_beauty/

Atmega 1284P / 328P through hole board with nRF24L01+ in UNO size

Made with all through hole components, built-in interface header for nRF24L01+ module. Rconfigurable /CE, /CSN and /INT. signals for different digital pins. Works for the Atmega1284P or the Atmega328P.

See details at: http://www.firebirduino.com/sleeping_beauty/
