Sparkfun 6" 7 Segment Breakout (Conventional)

author: Damage
Top
Bottom

2 layer board of 1.95 x 1.73 inches (49.5 x 43.9 mm)
Uploaded: December 21st 2013
Shared: December 21st 2013
Total Price: $16.85

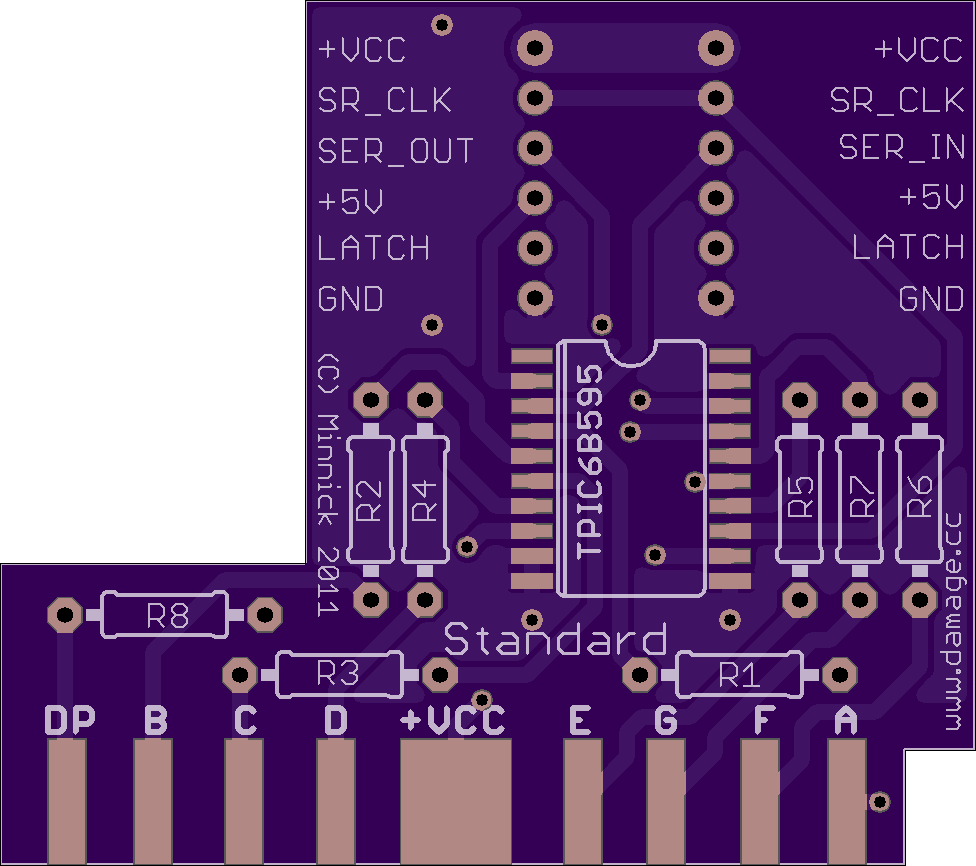

A Breakout board so that the 6" Sparkfun 7 Segment displays can be “Daisy Chained” Uses Shift Registers in an “Open Drain” configuration. This is the Conventional Version (Decimal Point at the bottom Right)
