Microchip MCP2200 USB to UART

author: CJackel

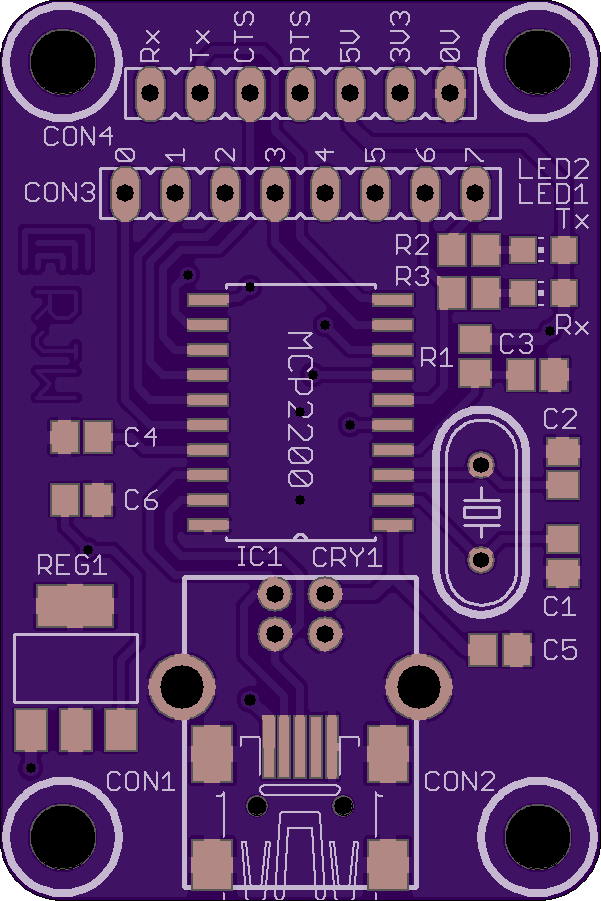

Top
Bottom

2 layer board of 1.20 x 1.80 inches (30.5 x 45.7 mm)
Uploaded: May 02, 2014
Shared: May 29, 2014
Total Price: $10.80

BOM - C1,C2=22pF:C3,C5=100nF:C4=470nF:C6=10nF:R1=10k:R2,R3=330R:IC1=MCP2200:CRY1=12MHz:REG1=TC1262-3.3VDB(Optional). All resistors, capacitors and LED’s are 0805. Remaining components/LED colours choosen to suit. An RJW and CRC production. http://www.microchip.com/wwwproducts/devices.aspx?dDocName=en546923

BOM - C1,C2=22pF:C3,C5=100nF:C4=470nF:C6=10nF:R1=10k:R2,R3=330R:IC1=MCP2200:CRY1=12MHz:REG1=TC1262-3.3VDB(Optional). All resistors, capacitors and LED’s are 0805. Remaining components/LED colours choosen to suit. An RJW and CRC production. http://www.microchip.com/wwwproducts/devices.aspx?dDocName=en546923

Top
Bottom
