Tc4 Controller 0400
author: rustic_roaster

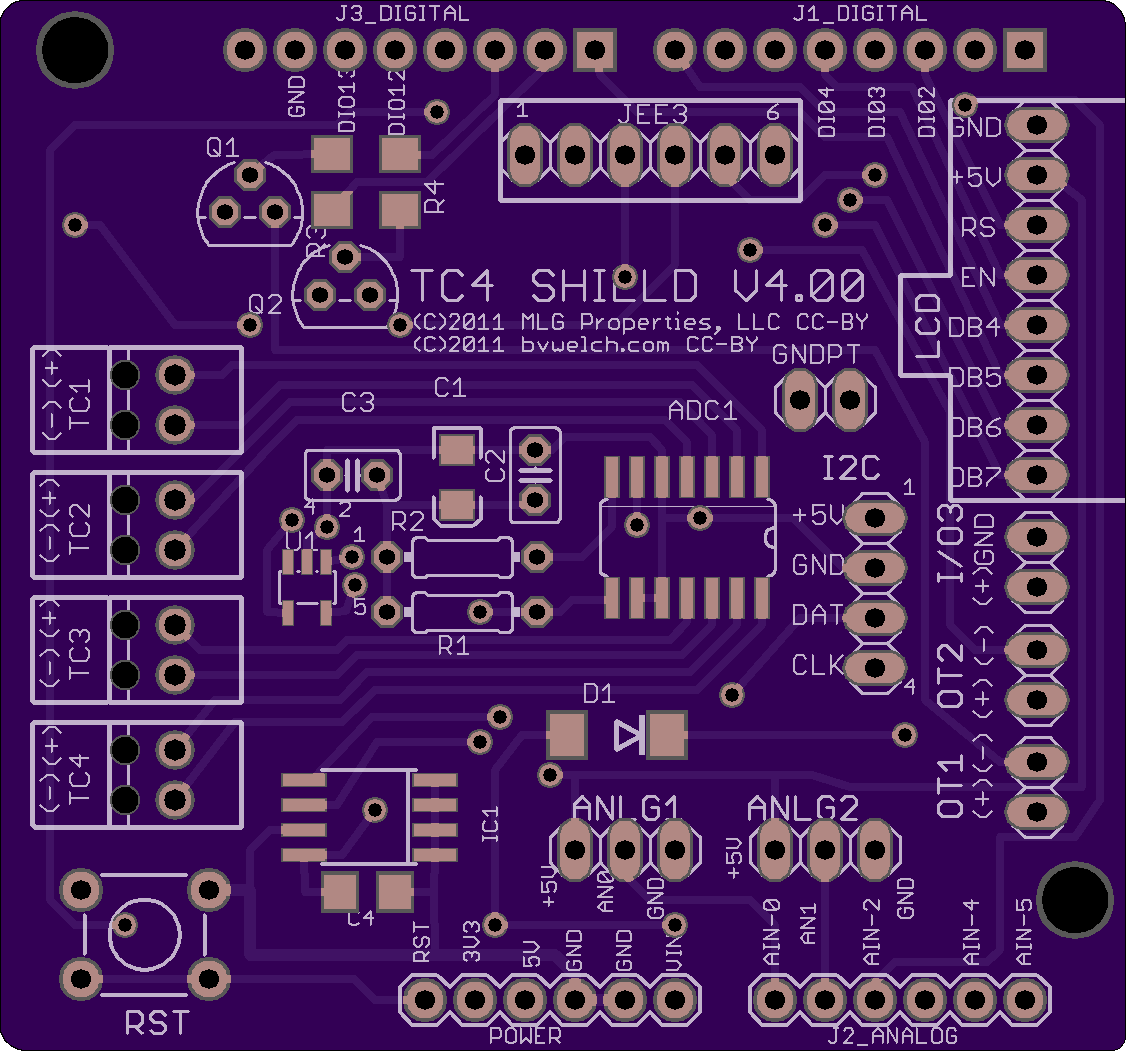

2 layer board of 2.25 x 2.10 inches (57.2 x 53.4 mm)
Uploaded:
September 17, 2013
Shared:
September 18, 2013
Total Price:
$23.60
tc4 v4.0 HRO.org 4 port Open Source thermal coupler Arduino Shield. TC4 Archive location TC4
Board loaded here from Archive on 17-sept-2013 and has not been verified personally, but other have used the files sucessfully. If you want to order boards do so at your own risk. Once verified this note will be removed.
Get a sparkfun Arduino Stackable Header Kit.
Cut and paste parts below into Digikey Parts list tool.
1,MCP3424-E/SL-ND, ADC1
1,478-8237-1-ND, c1
1,399-1249-1-ND, C4
1,S1AB-FDICT-ND, D1
1,24LC512-I/SM-ND, ic1
2,P2.0KECT-ND, R3 R4
1,MCP9800A0T-M/OTCT-ND, U1
1,A26514-40-ND, ANLG1 ANLG2
2,BC1160CT-ND, C2 C3
1,A32705-40-ND, I/O3
2,2N3904FS-ND, Q1 Q2
2,S4.7KQCT-ND, R1 R2
4,277-1273-ND, tc1 tc2 tc3 tc4
1,SW402-ND, RST
