IsoISE-feather.kicad_pcb

author: Gwizz

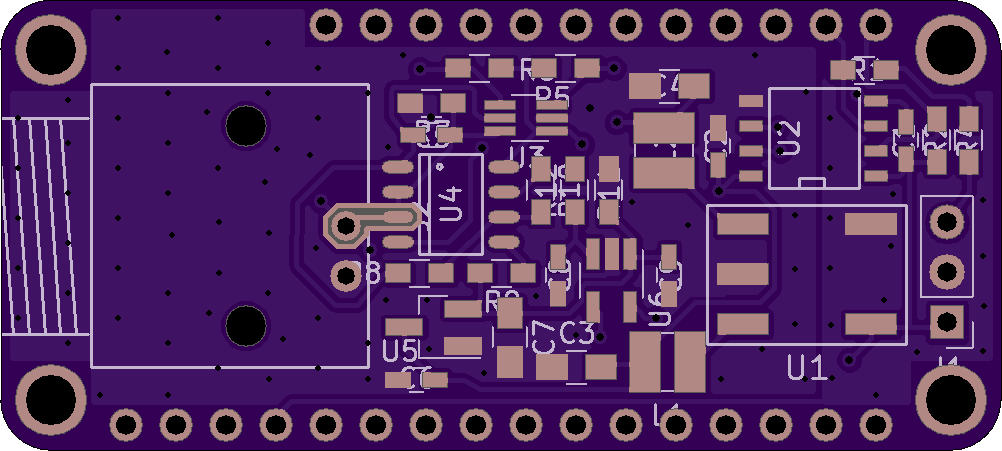

Top

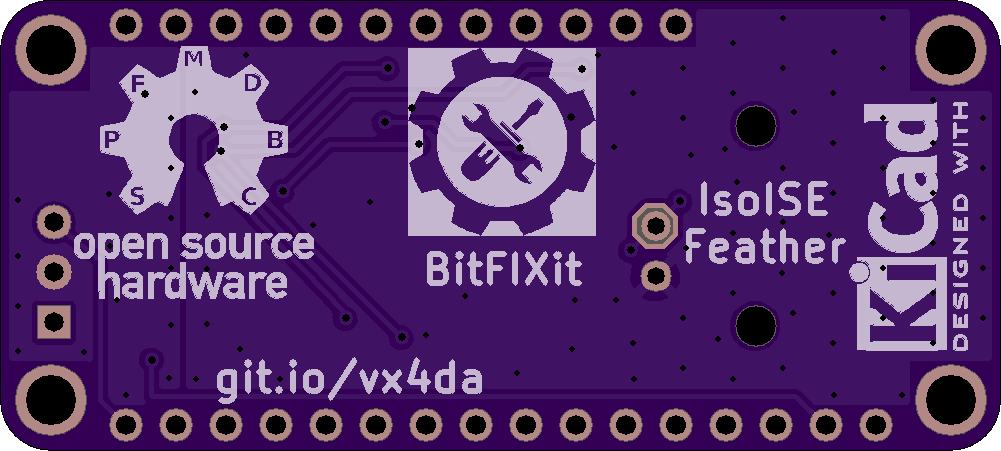

Bottom

2 layer board of 2.00 x 0.90 inches (50.8 x 22.9 mm)
Uploaded: March 24, 2018
Shared: April 03, 2018
Total Price: $9.00

Isolated Ion Selective Electrode interface in Adafruit Feather form factor. Design files available at https://github.com/garethhcoleman/IsoISE-feather. CC BY-SA 3.0 licensed. Digikey shared basket at http://www.digikey.co.uk/short/jpfbn8. Circuit design heavily based on https://www.sparkyswidgets.com/portfolio-item/ion-selective-electrode-interface/ by Ryan Edwards - massive kudos to him, Lady Ada and the kicad team. Ryan is not responsible for the design of this circuit or the mistakes I’ve introduced. Revision 0.1 - you have been warned!
