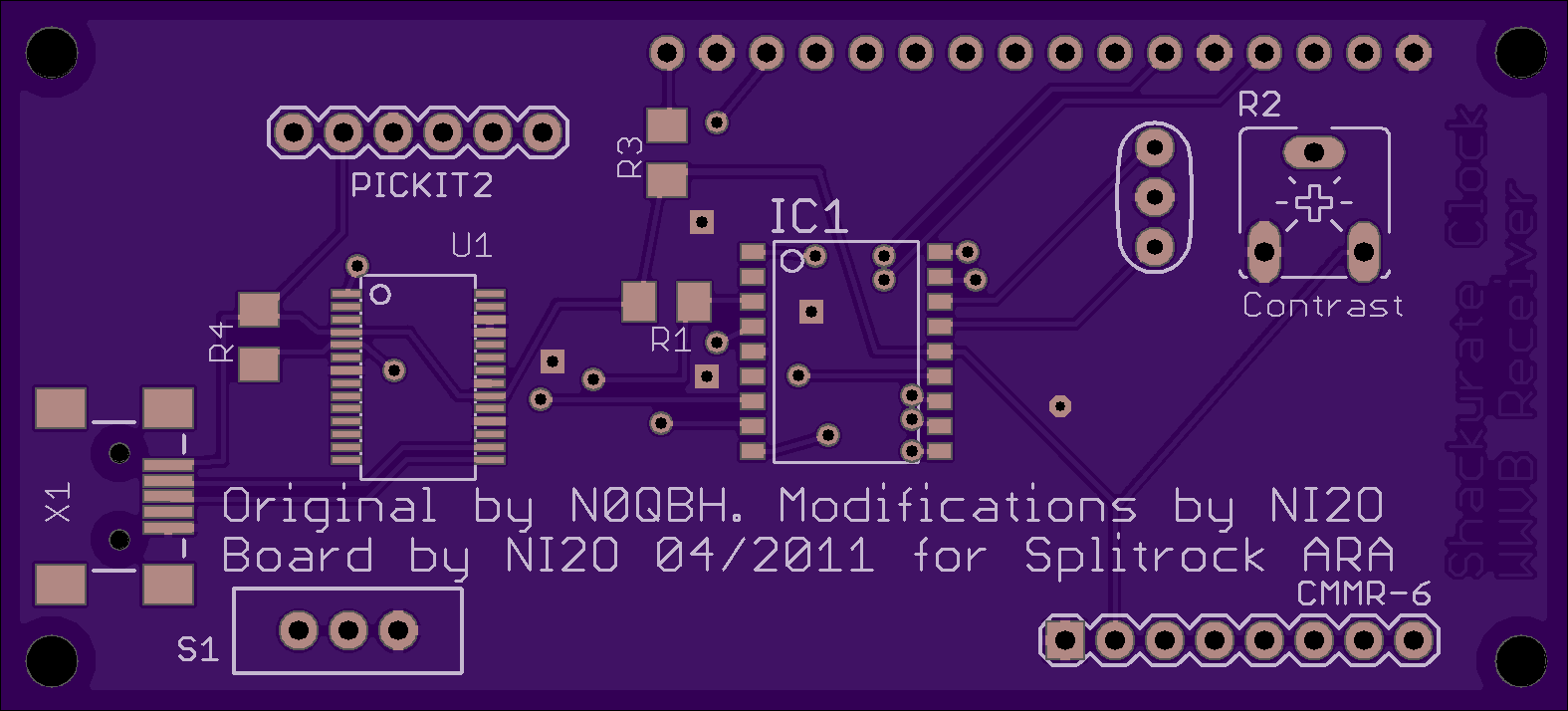

WWVB Receiver with LCD

By goboxgizmos

2 layer board of 3.15 x 1.43 inches (80.0 x 36.2 mm).
Uploaded: June 11th, 2014 20:37.
Shared: June 11th, 2014 20:38
Total Price: $22.45

N0QBH's PIC based WWVb clock. Uses CMMR-6 60KHz receiver device
