EH_HARWIN_EIB.kicad_pcb

author: eh_lab
Top
Bottom

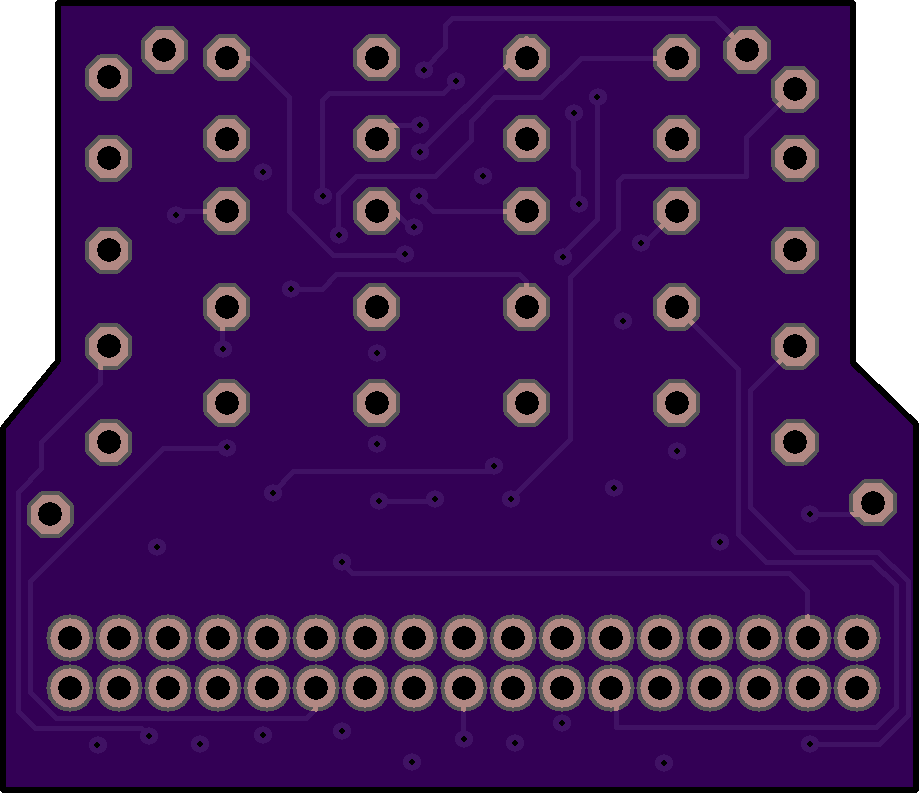

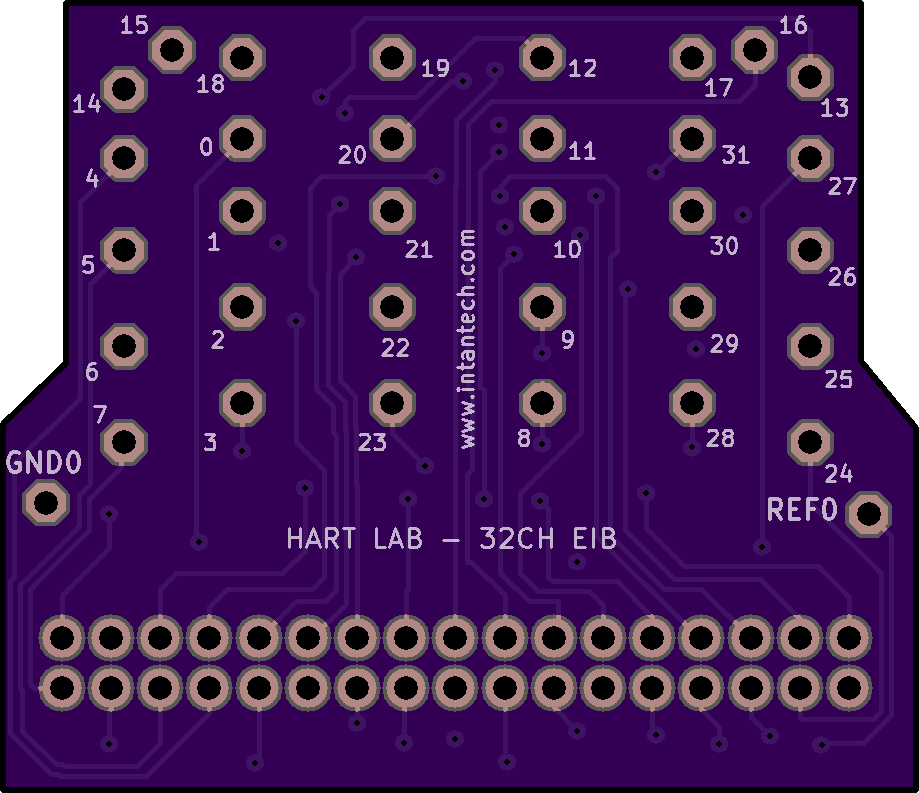

4 layer board of 0.91 x 0.79 inches (23.2 x 20.0 mm)
Uploaded: July 17, 2025
Shared: July 29, 2026
Total Price: $7.20

For chronic, freely behaving extracellular neurophysiology. Board is designed for 32 channel wire arrays and ease of soldering microwires in through-holes. Designed for Harwin Gecko (G125-MH13405L7P) connector, which connects to a headstage with a Harwin Gecko receptacle (G125-FV13405L0P).

For chronic, freely behaving extracellular neurophysiology. Board is designed for 32 channel wire arrays and ease of soldering microwires in through-holes. Designed for Harwin Gecko (G125-MH13405L7P) connector, which connects to a headstage with a Harwin Gecko receptacle (G125-FV13405L0P).

Top
Bottom
