YagTracker Simple Breakout

author: goboxgizmos
Top
Bottom

2 layer board of 2.64 x 2.15 inches (67.0 x 54.6 mm)
Uploaded: September 21st 2013
Shared: September 21st 2013
Total Price: $28.35

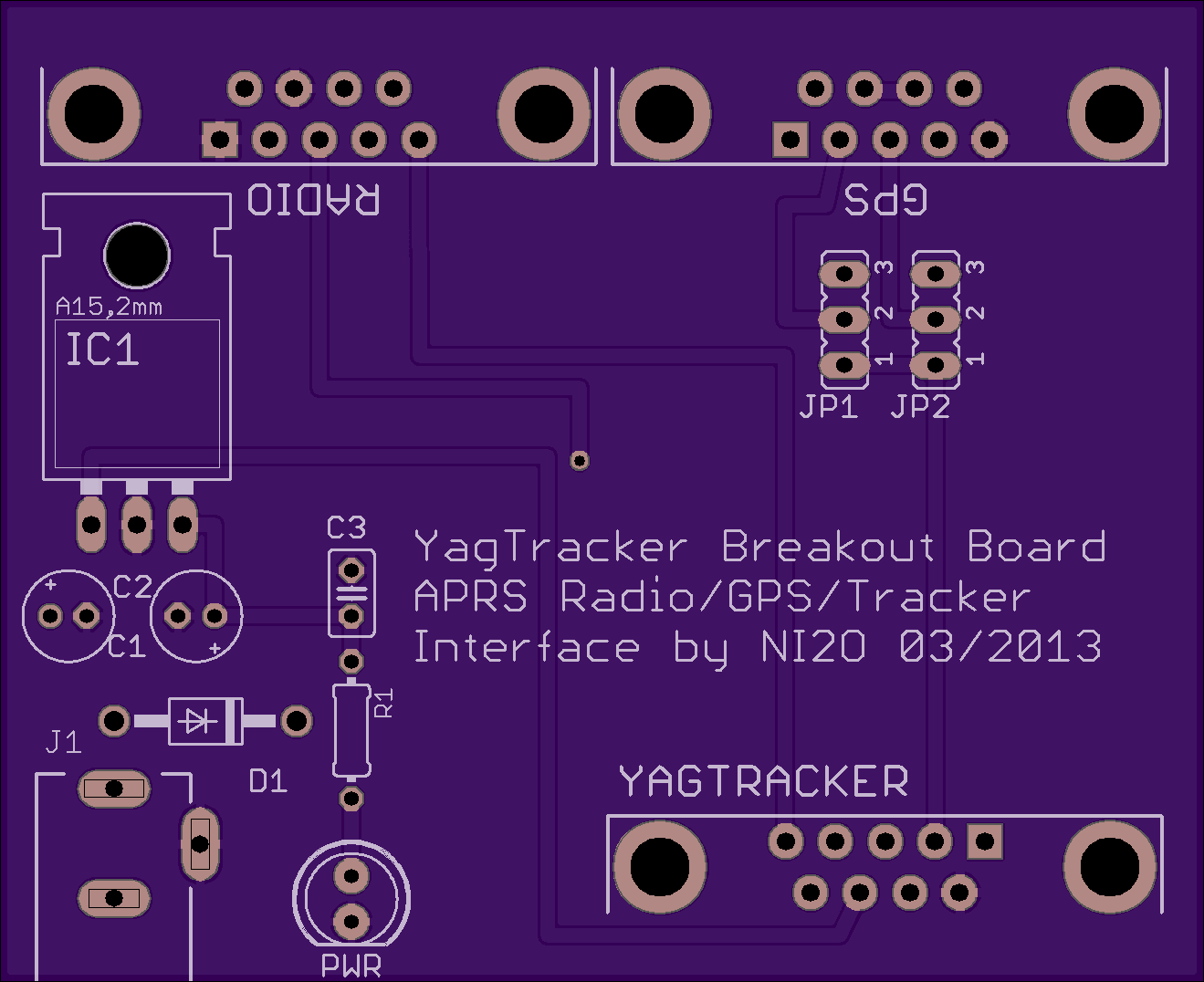

Breakout board for the YagTracker APRS tracker. Simplifies connections to all required devices. Ideal for firmware upgrades too.

+5V regulator may not be required. Included in case your GPS needs it. Install a wire link on the bottom of the board from the output of the 7805 to the +V pin on the GPS via the GPS DB9 connector.

Breakout board for the YagTracker APRS tracker. Simplifies connections to all required devices. Ideal for firmware upgrades too.

+5V regulator may not be required. Included in case your GPS needs it. Install a wire link on the bottom of the board from the output of the 7805 to the +V pin on the GPS via the GPS DB9 connector.
