555 IR Repeater
author: mechanicalamit

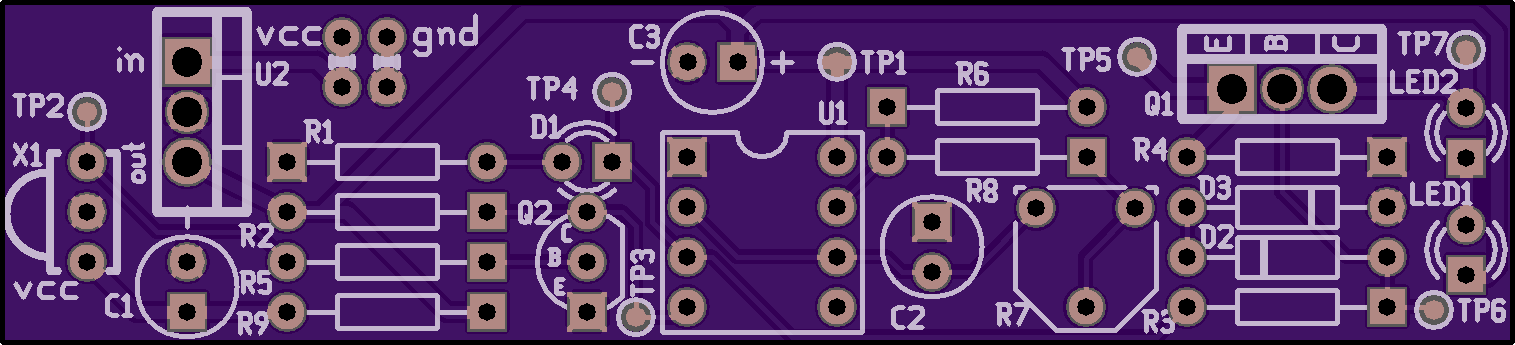

2 layer board of 3.03 x 0.69 inches (77.0 x 17.5 mm)
Uploaded:
October 15, 2012
Shared:
August 04, 2014
Total Price:
$10.45
Read in IR using a TSOP sensor and output via two constant current IR LEDs. Frequency can be calibrated using a POT.
Detector and IR LEDs should be out of sign of each other.
Read in IR using a TSOP sensor and output via two constant current IR LEDs. Frequency can be calibrated using a POT.
Detector and IR LEDs should be out of sign of each other.
