FET Drive J201_V1

author: Filarete
Top
Bottom

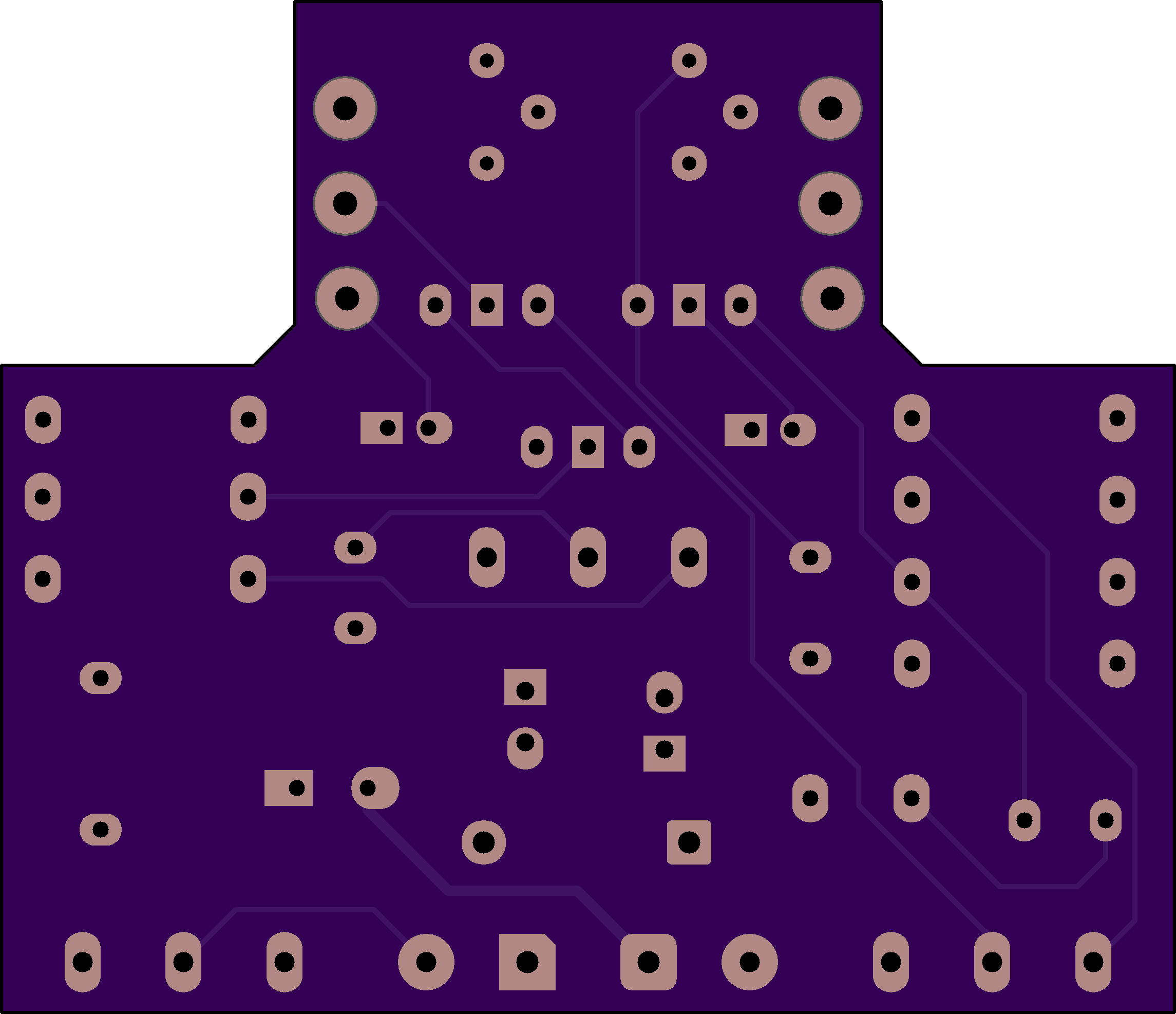

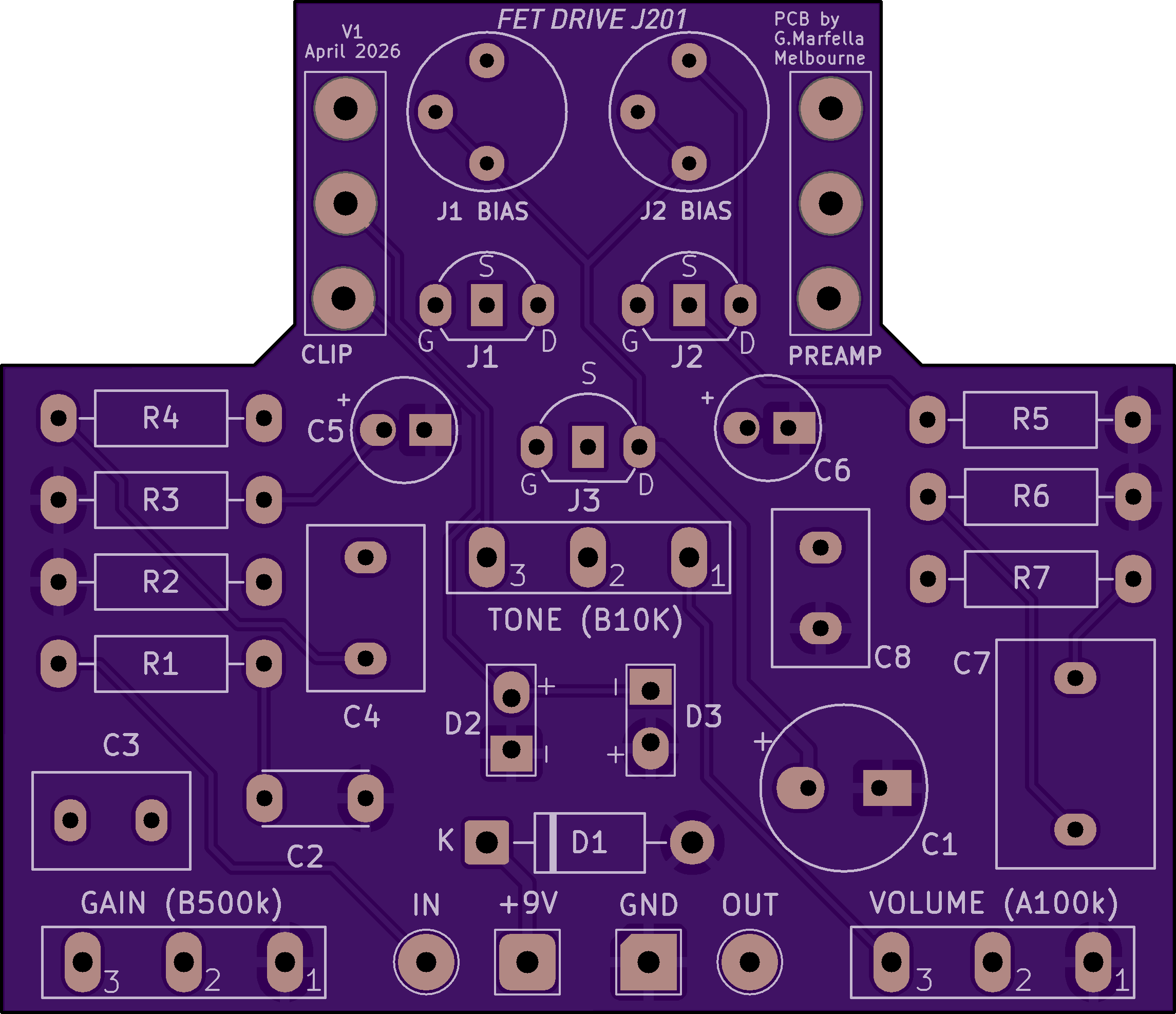

2 layer board of 2.28 x 1.97 inches (58.0 x 50.0 mm)
Uploaded: April 02, 2026
Shared: September 25, 2026
Total Price: $22.45

This PCB is for an electric guitar overdrive pedal. The circuit has stacked JFET gain stages with three knob controls (gain, tone and volume and two optional toggles for additional gain and clipping. The circuit is based on a topology shown by Brian Wampler in his Guitar Effect Pedal Course.
