Adapter AT keyboard to PS/2 mouse + keyboard

author: keropi

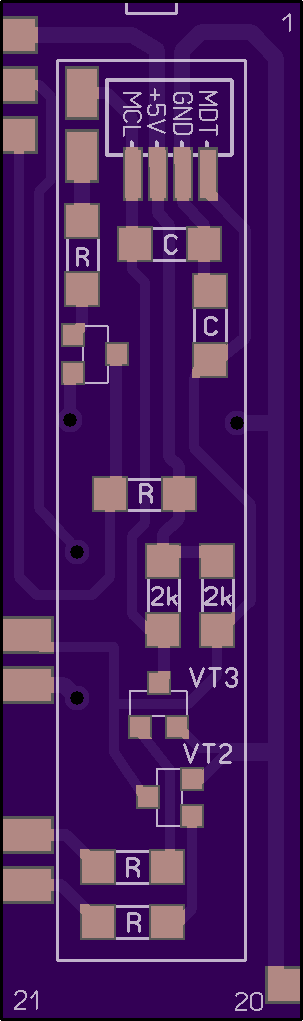

Top
Bottom

2 layer board of 0.61 x 2.04 inches (15.4 x 51.9 mm)
Uploaded: March 11, 2018
Shared: March 11, 2018
Total Price: $6.15

Rio444 ’s adapter : https://www.vogons.org/viewtopic.php?p=647811#p647811

  • use 0.8mm board thickness

VT1 ,VT2,VT3 : MBBT3904 transistors * R1,R3,R5,R6 : 4,7K (marked as R) * R2, R4 : 2k (marked as 2k) * C1,C2 : 220pf (marked as C) *

more assembly info: https://www.vogons.org/viewtopic.php?p=648206#p648206

Rio444 ’s adapter : https://www.vogons.org/viewtopic.php?p=647811#p647811

  • use 0.8mm board thickness

VT1 ,VT2,VT3 : MBBT3904 transistors * R1,R3,R5,R6 : 4,7K (marked as R) * R2, R4 : 2k (marked as 2k) * C1,C2 : 220pf (marked as C) *

more assembly info: https://www.vogons.org/viewtopic.php?p=648206#p648206
