XIAO RP2350 Breakout 1.0

author: gdusbabek

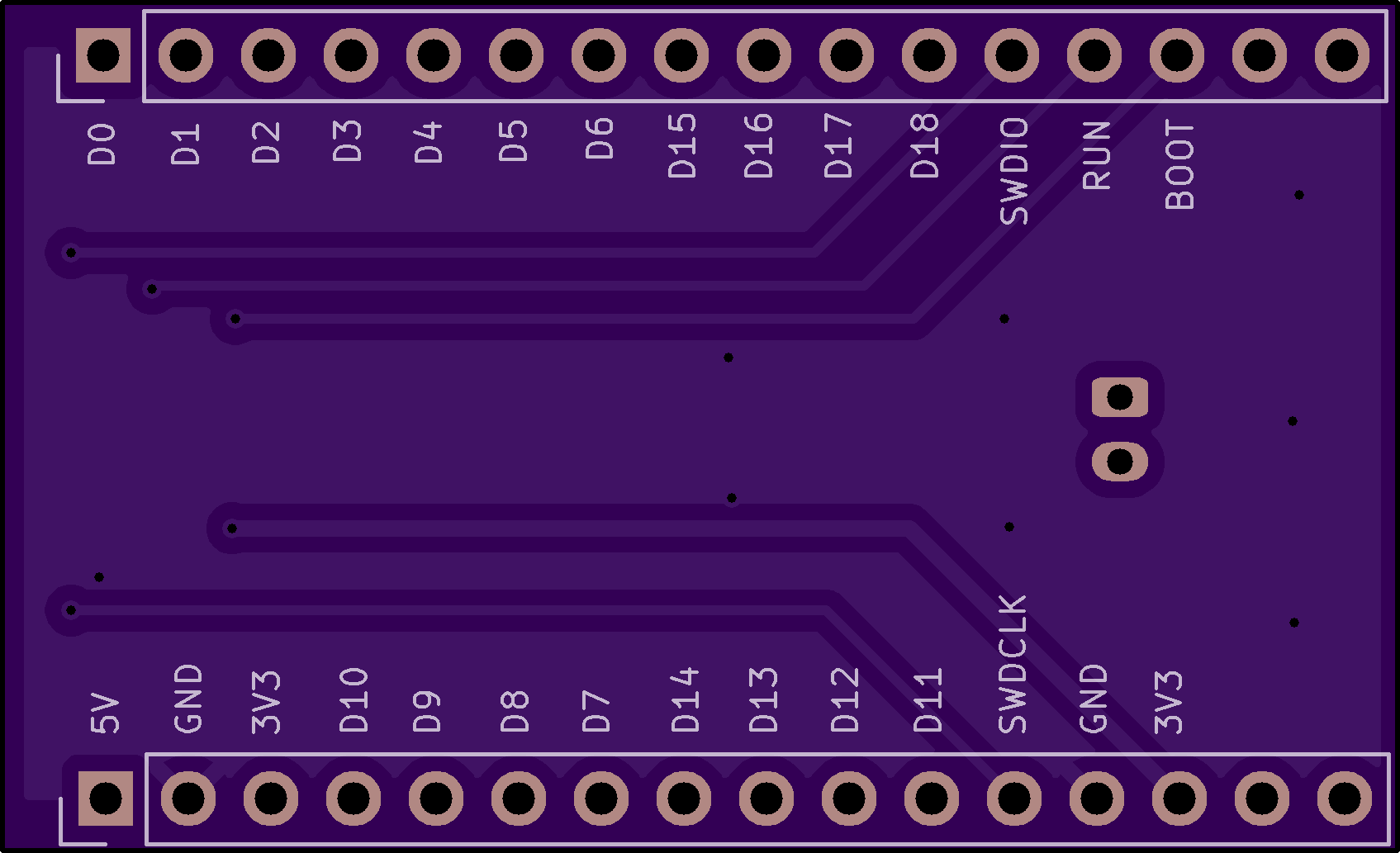

Top

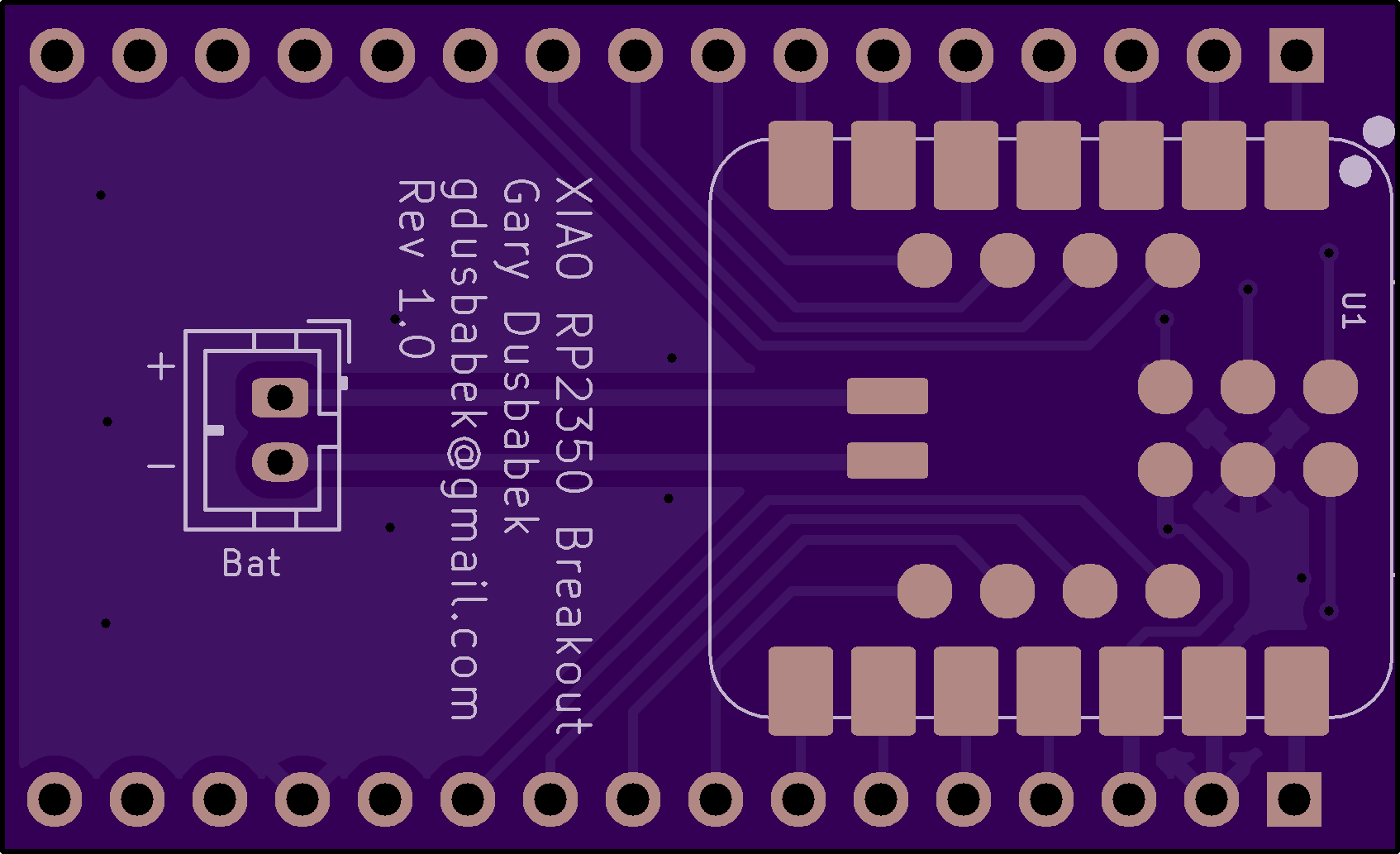

Bottom

2 layer board of 1.69 x 1.03 inches (42.9 x 26.1 mm)
Uploaded: September 27, 2026
Shared: October 27, 2026
Total Price: $8.65

This is a breakout board that exposes all the pads of a XIAO RP2350 board. You can also attach a 2 pin JST connector for a battery.

I’ve successfully used a hot plate and solder paste to reflow bare PCBs onto this board. The through-holes are placed such that you can insert into a breadboard.

This is a breakout board that exposes all the pads of a XIAO RP2350 board. You can also attach a 2 pin JST connector for a battery.

I’ve successfully used a hot plate and solder paste to reflow bare PCBs onto this board. The through-holes are placed such that you can insert into a breadboard.

Top
Bottom
