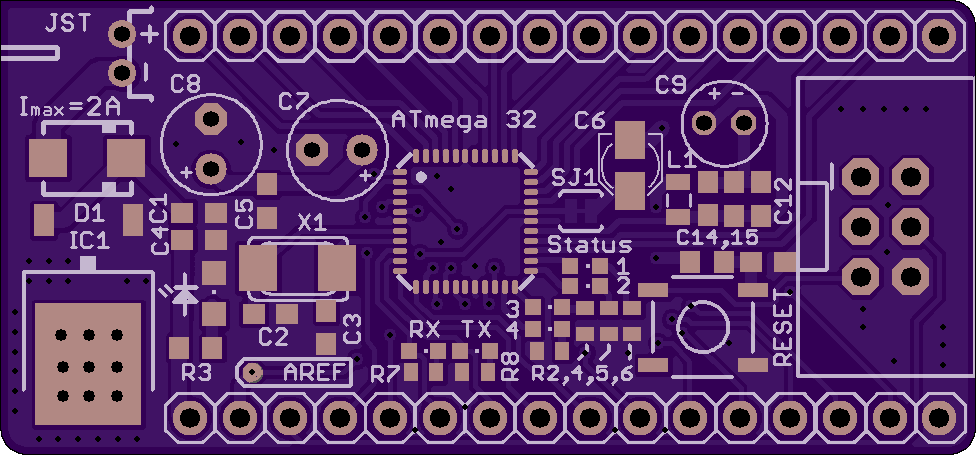

Mega32 Breakout Board

author: Le0veN
Top
Bottom

2 layer board of 1.95 x 0.91 inches (49.5 x 23.1 mm)
Uploaded: April 30, 2014
Shared: April 30, 2014
Total Price: $8.80

This is a breakout board of the ATMega32 familly MCUs. You can put anything from Mega32 to Mega324P 20AU, or any ATMega whom’s pinout match. It has ADC low pass filtering, 5v 1.5A regulated voltage, max input current is 2A, max input voltage 35V. All files, including BOM, are avalable to download at https://github.com/Le0veN/ATMega32-Breakout-Board
