Slim-OLED Display with I/O and EEPROM Rev. 1.0

author: Barbouri
Top
Bottom

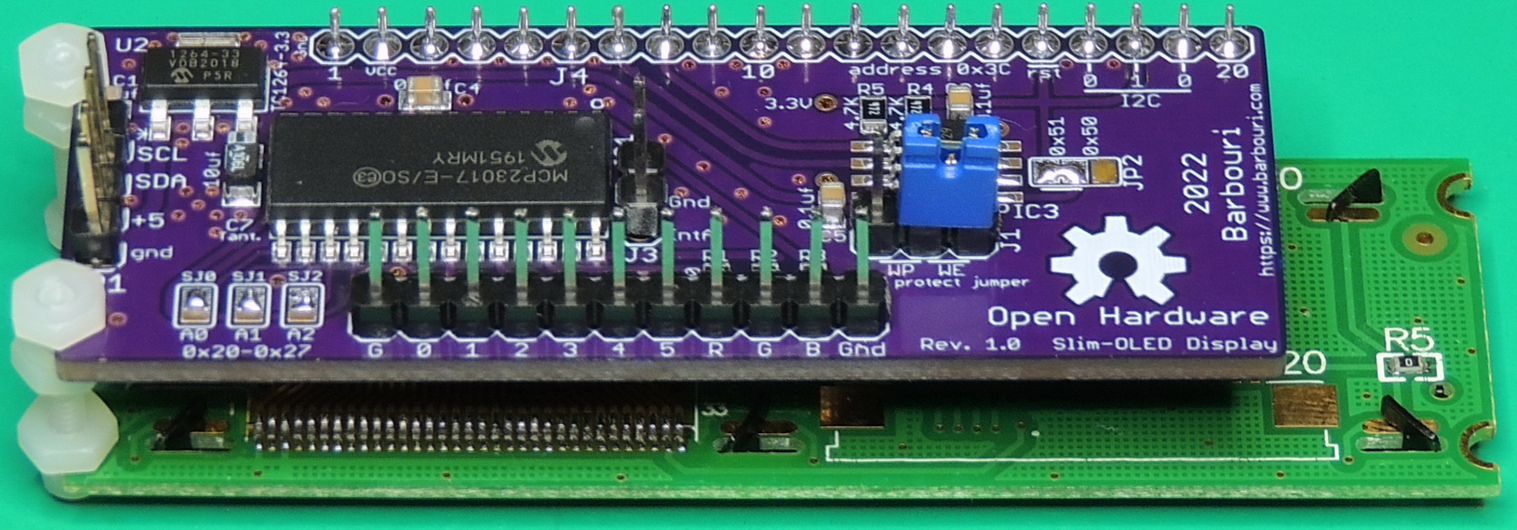

2 layer board of 2.53 x 0.98 inches (64.3 x 24.9 mm)
Uploaded: January 17th 2022
Shared: February 4th 2022
Total Price: $12.35

Slim-OLED NHD-0216CW Display I2C interface with I/O and EEPROM. 5 volt input with regulated 3.3 volts for display and onboard IC’s. Rev. 1.0

https://www.barbouri.com/2022/02/04/slim-oled-display-interface-board/ Slim-OLED I2C interface Rev. 1.0

Slim-OLED Display I2C interface Rev. 1.0

Slim-OLED NHD-0216CW Display I2C interface with I/O and EEPROM. 5 volt input with regulated 3.3 volts for display and onboard IC’s. Rev. 1.0
