PS2 Plus Custom Design
author: ComputerMan

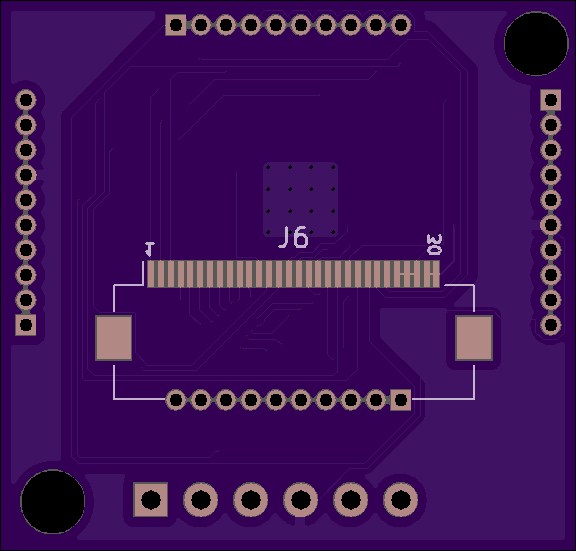

2 layer board of 1.15 x 1.10 inches (29.3 x 28.0 mm)
Uploaded:
March 21st 2020
Shared:
March 21st 2020
Total Price:
$6.30
This is a custom made version of the ps2 plus created by the amazing BitBuilt team; I wanted a few extra things in a smaller PCB so that the cost won’t be too significant. The original PCB costed almost 3 times more because of its larger size.
This one costs less and adds an extra Flexible Flat Cable (FFC). This basically removes the need to use the pads to solder and instead allows you to solder an FFC connector and save a lot of time
This is the original source, Created by the BitBuilt team; Here you can find both the board files and programming files/directions:
https://bitbuilt.net/forums/index.php?threads/ps2-official-release.2897/
This is a custom made version of the ps2 plus created by the amazing BitBuilt team; I wanted a few extra things in a smaller PCB so that the cost won’t be too significant. The original PCB costed almost 3 times more because of its larger size.
This one costs less and adds an extra Flexible Flat Cable (FFC). This basically removes the need to use the pads to solder and instead allows you to solder an FFC connector and save a lot of time
This is the original source, Created by the BitBuilt team; Here you can find both the board files and programming files/directions:
https://bitbuilt.net/forums/index.php?threads/ps2-official-release.2897/
