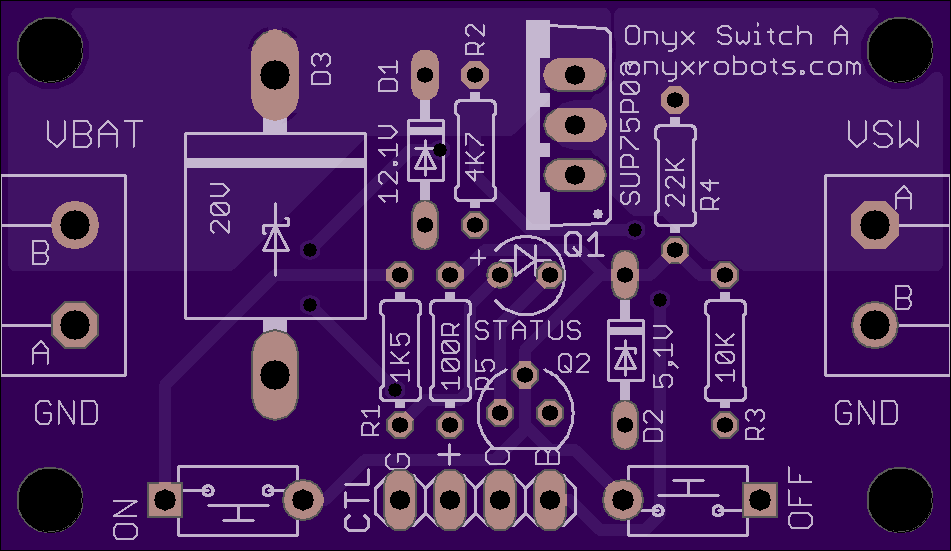

Onyx Switch A
author: OnyxRobots
2 layer board of 1.90 x 1.10 inches (48.3 x 27.9 mm)
Uploaded:
April 21, 2014
Shared:
August 23, 2014
Total Price:
$10.45
20140420 P-channel Power Switch
This switch features pushbutton on and off action, as well as ability to actuate on and off through the 100-mil header. Power handling up to 20A, depending on specific P-channel MOSFET used and tolerance for board heat.
I have ordered, built, and tested this design, and it works well. Leakage current when off is below what I can measure – approximately equal to zero.
