SilverLight Eagle 5v_v2

author: Pedro147

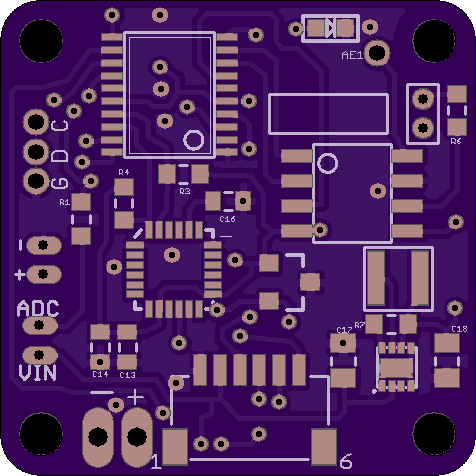

Top
Bottom

2 layer board of 0.95 x 0.95 inches (24.1 x 24.1 mm)
Uploaded: January 22, 2019
Shared: January 22, 2019
Total Price: $4.50

This is the third version of the SilverLight 5vFPV. This has the XTAL moved right away from the inductor for the 5v power supply which was causing interference in the RX circuit in the original SilverLight 5vFPV design. I also addressed a number of other relatively minor design flaws / improvements like -

numbered the ESC connector end pins 1 & 6

moved the 5v socket away from the programming socket as they were too close

fixed the wrongly labeled ADC / VIN pads

moved the XTAL caps closer to the XTAL

fixed the XN297 footprint which was too wide

modified the DRC so that the vias are now tented (covered with solder mask)

Moved the ESC connector over and added two VIN pads. I do not like putting up to 4S in through the tiny VCC and GND pins of the ESC connector especially if there is an FPV camera/ VTX also being used as well as power for the FC"

PDF of schematic available here - https://www.dropbox.com/s/59v4sqlvpaxhhz2/SilverLight%20FPV%205v.pdf?dl=0

BOM available here - https://docs.google.com/spreadsheets/d/1oSa94LWQMyIAyTTWv7rmzk9OhKeJjQdVcmoxLCC_LGM/edit?usp=sharing

This is the third version of the SilverLight 5vFPV. This has the XTAL moved right away from the inductor for the 5v power supply which was causing interference in the RX circuit in the original SilverLight 5vFPV design. I also addressed a number of other relatively minor design flaws / improvements like -

numbered the ESC connector end pins 1 & 6

moved the 5v socket away from the programming socket as they were too close

fixed the wrongly labeled ADC / VIN pads

moved the XTAL caps closer to the XTAL

fixed the XN297 footprint which was too wide

modified the DRC so that the vias are now tented (covered with solder mask)

Moved the ESC connector over and added two VIN pads. I do not like putting up to 4S in through the tiny VCC and GND pins of the ESC connector especially if there is an FPV camera/ VTX also being used as well as power for the FC"

PDF of schematic available here - https://www.dropbox.com/s/59v4sqlvpaxhhz2/SilverLight%20FPV%205v.pdf?dl=0

BOM available here - https://docs.google.com/spreadsheets/d/1oSa94LWQMyIAyTTWv7rmzk9OhKeJjQdVcmoxLCC_LGM/edit?usp=sharing
