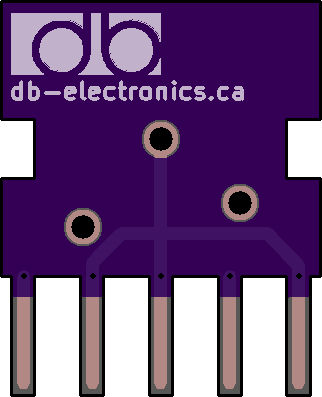

db Electronics Open Source Extron Phoenix Audio Adapter PCB input 0.1

By paalfe

2 layer board of 0.64 x 0.79 inches (16.4 x 20.2 mm).
Shared on May 16th, 2018 23:42

db Electronics Open Source Extron Phoenix Audio Adapter PCBs. https://github.com/db-electronics/phoenix-audio-adapter-kicad and https://db-electronics.ca/2018/04/23/open-source-extron-phoenix-audio-adapter-pcbs/

  • Input = https://oshpark.com/shared_projects/DsVU99zY
  • Output = https://oshpark.com/shared_projects/Fy2uiLFm

Copyright and Disclaimer

Copyright: René Richard

This documentation describes Open Hardware and is licensed under the CERN OHL v. 1.2.

You may redistribute and modify this documentation under the terms of the CERN OHL v.1.2. (http://ohwr.org/cernohl). This documentation is distributed WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING OF MERCHANTABILITY, SATISFACTORY QUALITY AND FITNESS FOR A PARTICULAR PURPOSE. Please see the CERN OHL v.1.2 for applicable conditions

Phoenix Audio Adapter

I didn’t want to have a bunch of stripped wire connectors on my Extron Crosspoint 12x4 video switch so I decided to make this simple adapter which allows a stacked RCA stereo audio jack (Digikey# CP-1435-ND) to be interfaced to a standard 5pin 3.5mm Phoenix connector.

Output Differences

The Extron Audio output wiring is different than the input wiring. There are 2 PCBs in this project. Be sure to use the output PCB for your outputs!
