Yuv Histogram Philips 27-36 G7 Chassis
author: KnivesToTheBirds

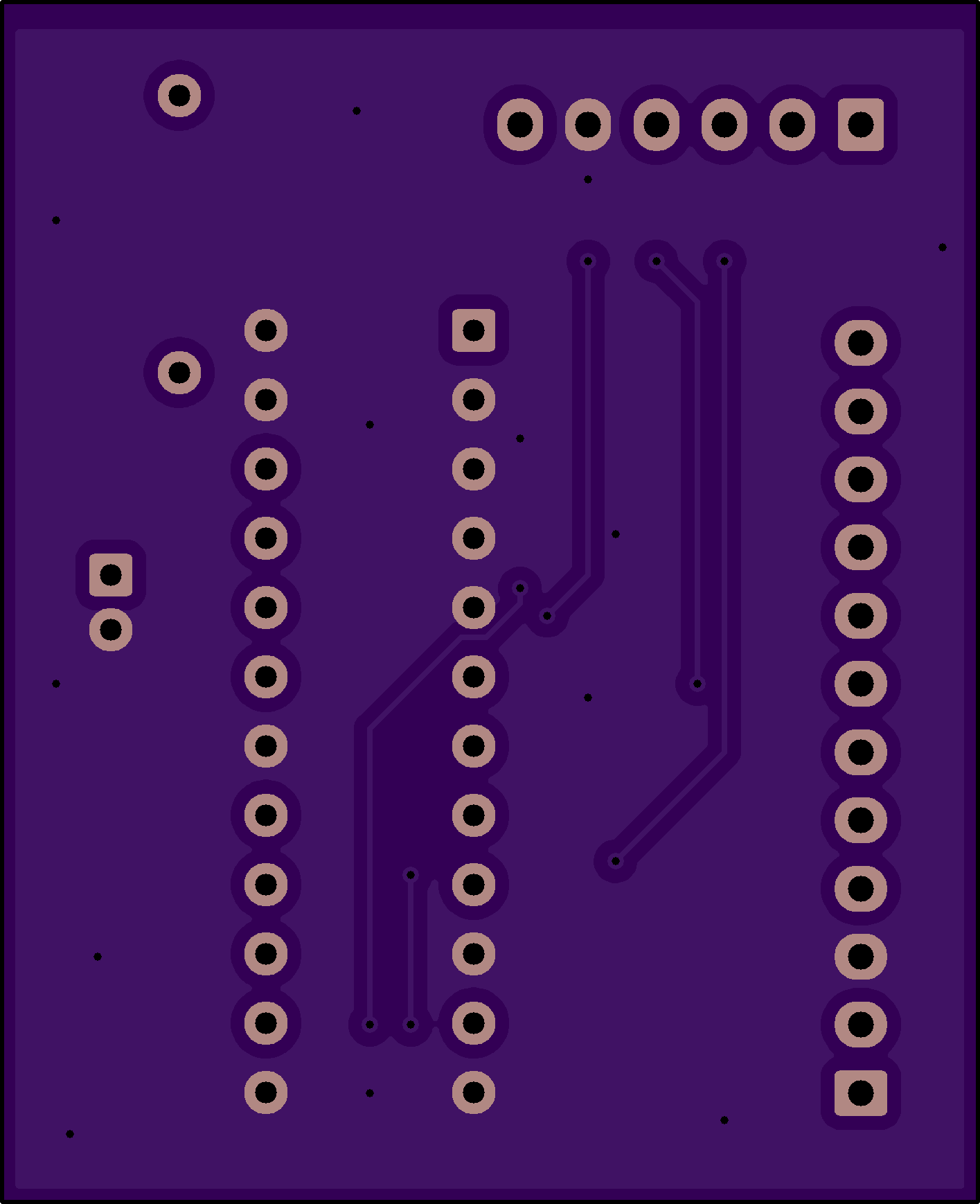

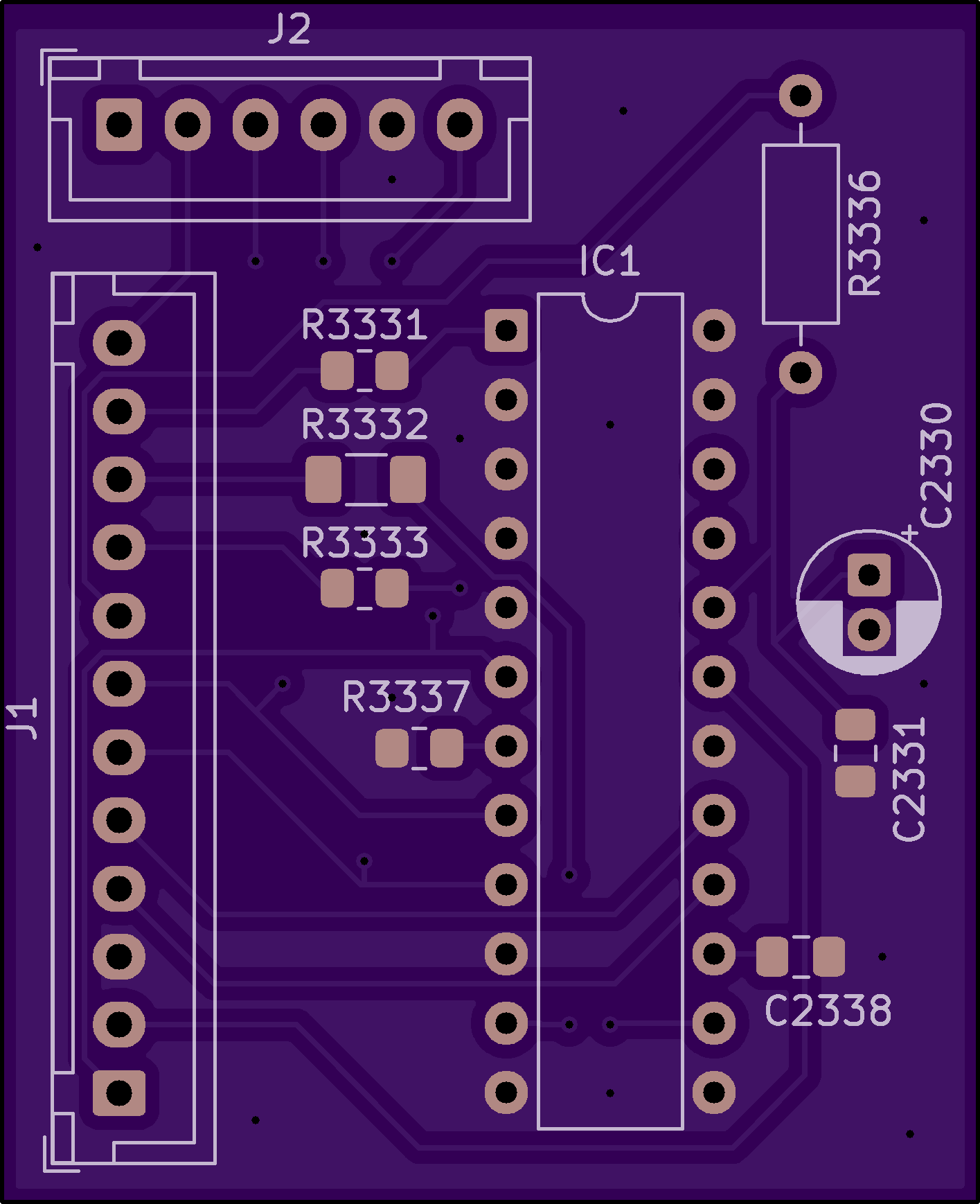

2 layer board of 1.41 x 1.73 inches (35.8 x 44.0 mm)
Uploaded:
May 07, 2026
Shared:
May 07, 2026
Total Price:
$12.20
Yuv Histogram Philips 27-36 G7 Chassis Use this to enable YUV in your phillips G7 Chassis CRT set Option codes to enable YUV (will include the codes i used when tested) Untested, once tested will include more information BOM: IC1 TDA9178 Philips Yuv IC 2330 100uf 16v Electrolytic Radial Leaded 2331 .01uf 50v 0805 1/10w Ceramic smd 3331 100ohm 5% 1/10w 0805 smd 3332 100ohm 5% 1/6w 1206 smd 3333 100ohm 5% 1/10w 0805 smd 3336 4.7ohm 5% 1/3w axial 2338 .01uf 50v 5% 0805 1/10w smd 3337 0 ohm “chip” jumper 0805 smd J1 JST-XH 2.54mm 12 pin Female J2 JST-XH 2.54mm 6 pin Female
