PS/2 to XT Keyboard Adapter

author: Serge
Top
Bottom

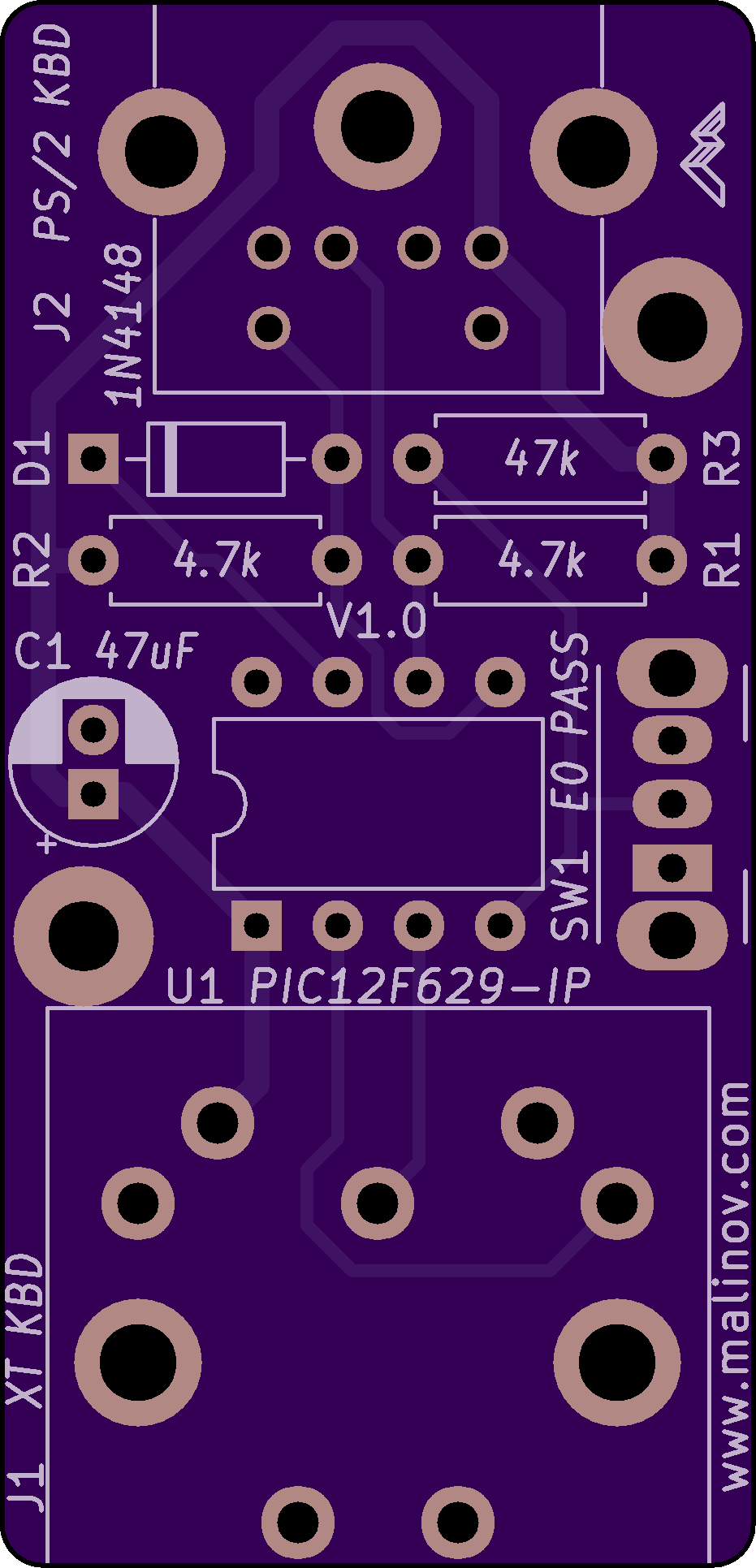

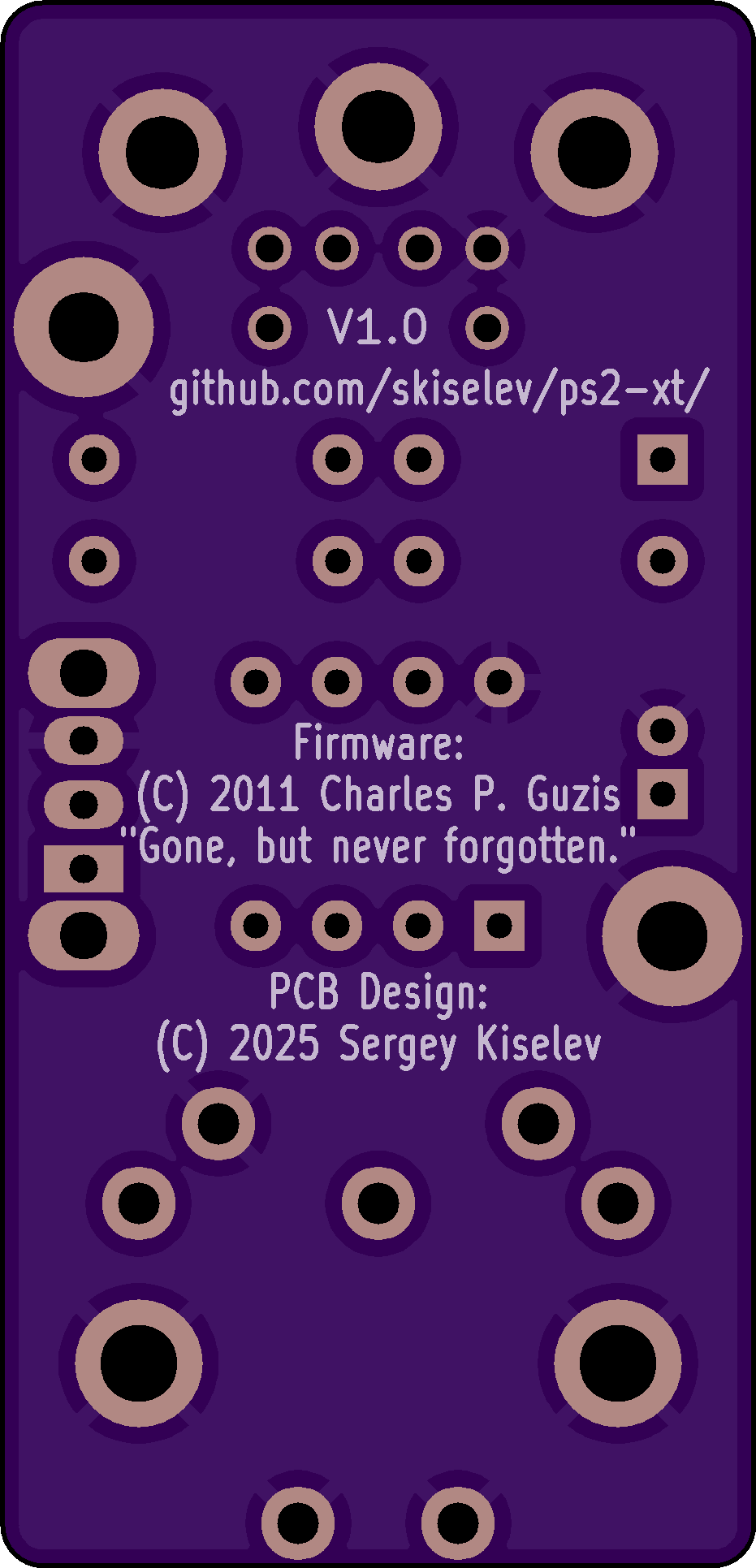

2 layer board of 0.92 x 1.92 inches (23.5 x 48.9 mm)
Uploaded: December 01, 2025
Shared: December 16, 2025
Total Price: $8.85

The PS/2 to XT project is yet another PCB design for the AT2XT keyboard converter developed by Vintage Computer Federation community.

It allows connecting a PS/2 keyboard to an IBM PC, IBM XT, or compatibles. An AT keyboard with an additional passive AT to PS/2 adapter, or a USB keyboard that also supports AT protocol using passive USB to PS/2 adapter, can be also used with this converter.

The PS/2 to XT project is yet another PCB design for the AT2XT keyboard converter developed by Vintage Computer Federation community.

It allows connecting a PS/2 keyboard to an IBM PC, IBM XT, or compatibles. An AT keyboard with an additional passive AT to PS/2 adapter, or a USB keyboard that also supports AT protocol using passive USB to PS/2 adapter, can be also used with this converter.
